Description

Price

1

EXHAUST PIPE ASSY 1

5PA-14610-00-00

Unavailable

2

WASHER (8H0)

90201-34683-00

$10.49

3

GROMMET

90480-18411-00

$11.49

4

COLLAR(34X)

90387-105L0-00

$10.49

5

WASHER, PLATE

90201-06086-00

$7.49

6

BOLT, SMALL FLANGE

95027-06025-00

$4.16

7

SEAL, EXHAUST

5PA-14642-00-00

$13.49

8

SPRING, TENSION(3FV)

90507-20052-00

$4.99

9

STAY, MUFFLER 1

565-14771-01-00

$18.49

10

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

11

SILENCER, EXHAUST

4ES-14753-30-00

Unavailable

12

FIBER

4ES-1469A-00-00

Unavailable

13

GROMMET(4EW)

90480-16561-00

$16.99

14

COLLAR(52E)

90387-063G3-00

$8.49

15

BOLT, SMALL FLANGE

95027-06025-00

$4.16

16

JOINT, EXHAUST 1

17W-14615-00-00

Unavailable

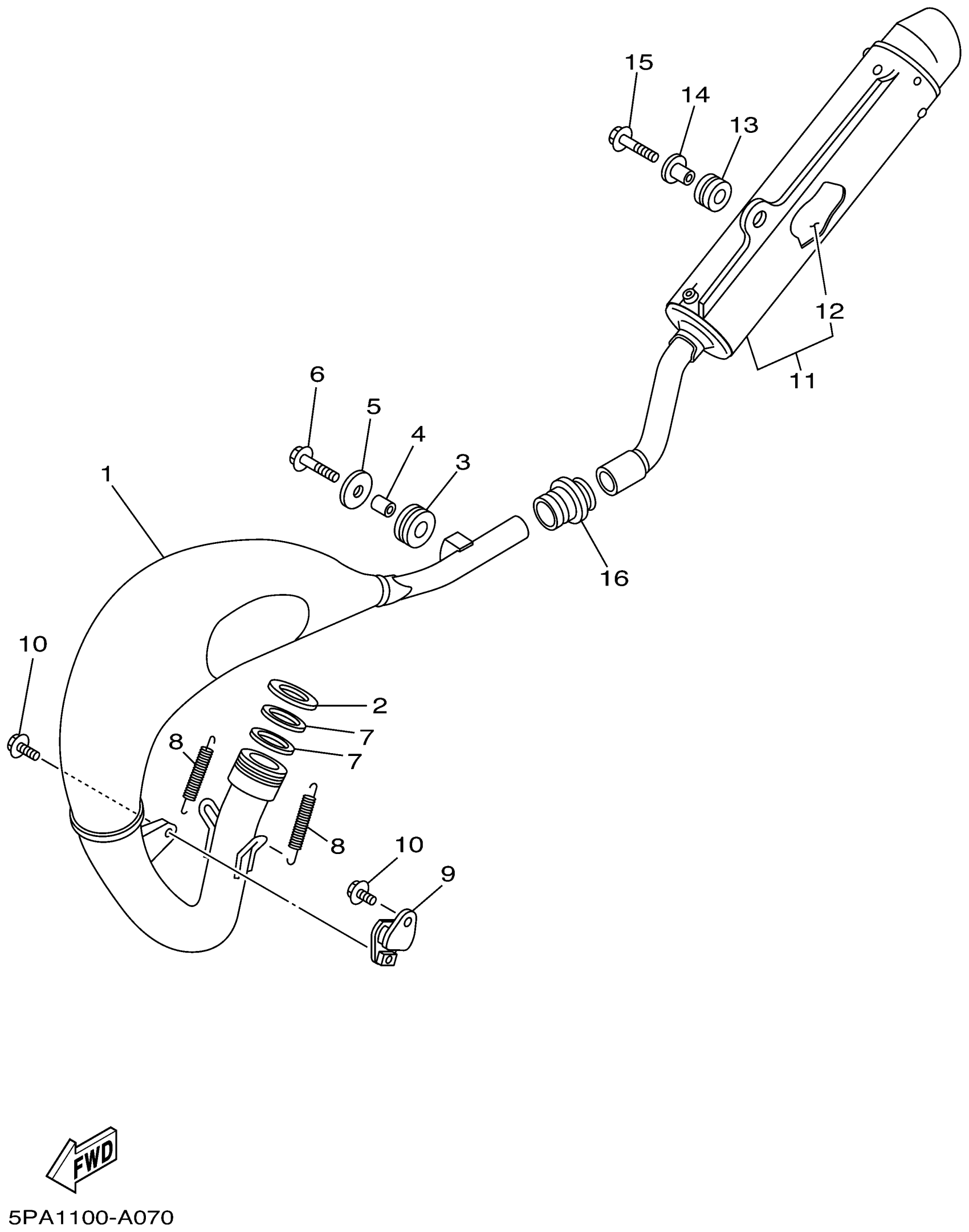

Yamaha YZ85P (YZ85) 5PA1 2002 EXHAUST Diagram

EXHAUST PIPE ASSY 1

WASHER (8H0)

GROMMET

COLLAR(34X)

WASHER, PLATE

BOLT, SMALL FLANGE

SEAL, EXHAUST

SPRING, TENSION(3FV)

STAY, MUFFLER 1

BOLT, FLANGE(4MY)

SILENCER, EXHAUST

FIBER

GROMMET(4EW)

COLLAR(52E)

BOLT, SMALL FLANGE

JOINT, EXHAUST 1
