Description

Price

1

CRANKSHAFT ASSY

5PA-11400-00-00

$341.99

2

CRANK 1

5PA-11412-00-00

Unavailable

3

CRANK 2

5PA-11422-00-00

$132.99

4

ROD, CONNECTING

4ES-11651-10-00

Unavailable

5

BEARING

93310-420B1-00

$49.99

6

PIN, CRANK 1

2RA-11681-00-00

$37.99

7

WASHER, CRANK PIN (1H9)

90209-20159-00

$5.60

8

PISTON (STD)

5PA-11631-10-A0

$74.99

8

PISTON (STD)

5PA-11631-10-B0

$74.99

8

PISTON (STD)

5PA-11631-10-C0

$74.99

8

PISTON (STD)

5PA-11631-10-D0

$74.99

9

PIN, PISTON

4ES-11633-00-00

$16.49

10

RING, PISTON

5PA-11611-01-00

$16.49

11

CIRCLIP(1HX)

93450-16115-00

$3.88

12

BEARING

93310-21417-00

$33.99

13

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

14

BEARING(4ED)

93306-20468-00

Unavailable

15

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

16

OIL SEAL

93102-28009-00

Unavailable

17

OIL SEAL(4BA)

93102-20447-00

Unavailable

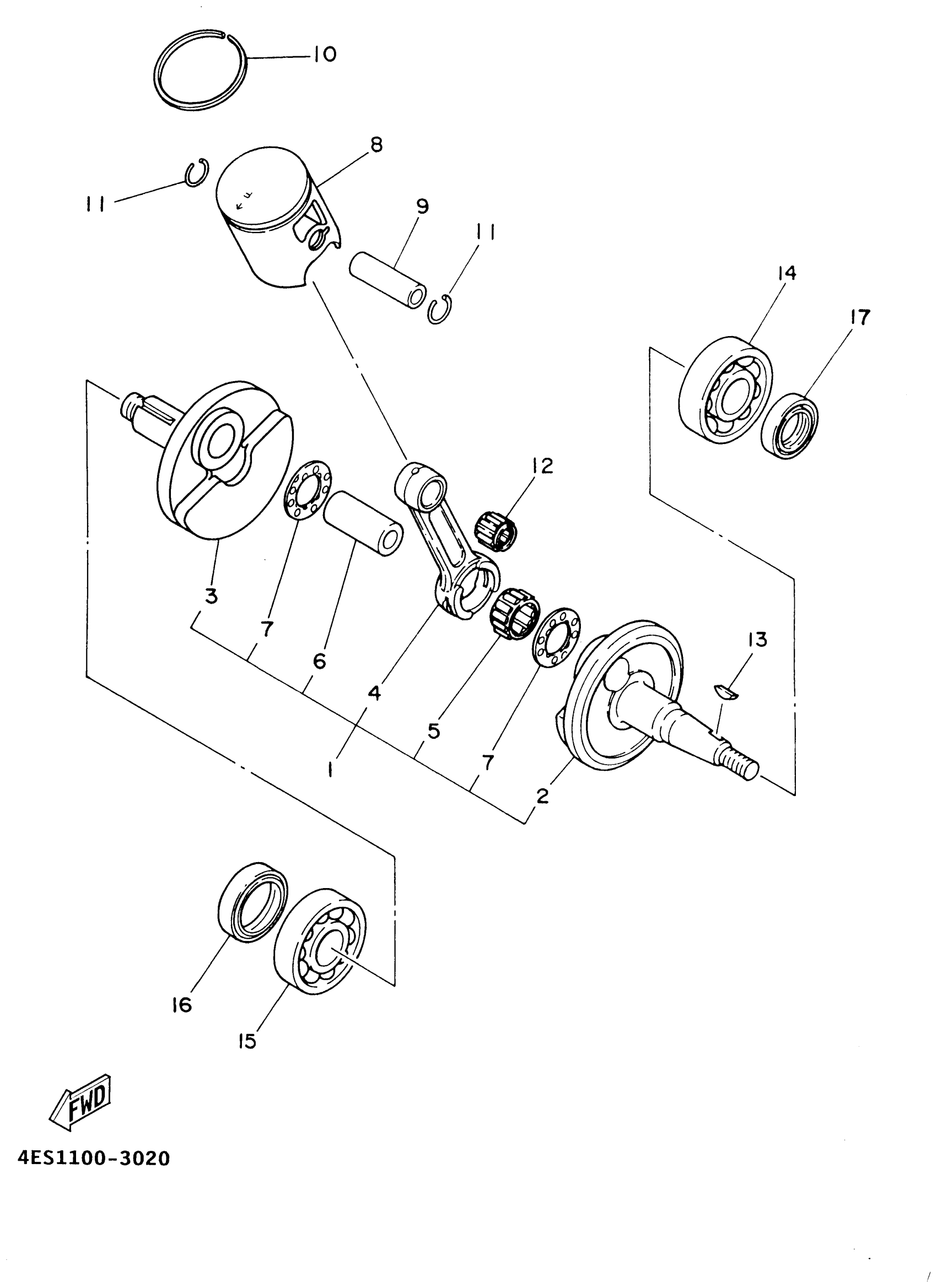

Yamaha YZ85P (YZ85) 5PA1 2002 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSY

CRANK 1

CRANK 2

ROD, CONNECTING

BEARING

PIN, CRANK 1

WASHER, CRANK PIN (1H9)

PISTON (STD)

PISTON (STD)

PISTON (STD)

PISTON (STD)

PIN, PISTON

RING, PISTON

CIRCLIP(1HX)

BEARING

KEY WOODRUFF 146115450000

BEARING(4ED)

BRG,R-B 6304C3 52MM 144G KY

OIL SEAL

OIL SEAL(4BA)
