2022 Yamaha YZ85 (YZ85N) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2022 Yamaha YZ85 (YZ85N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

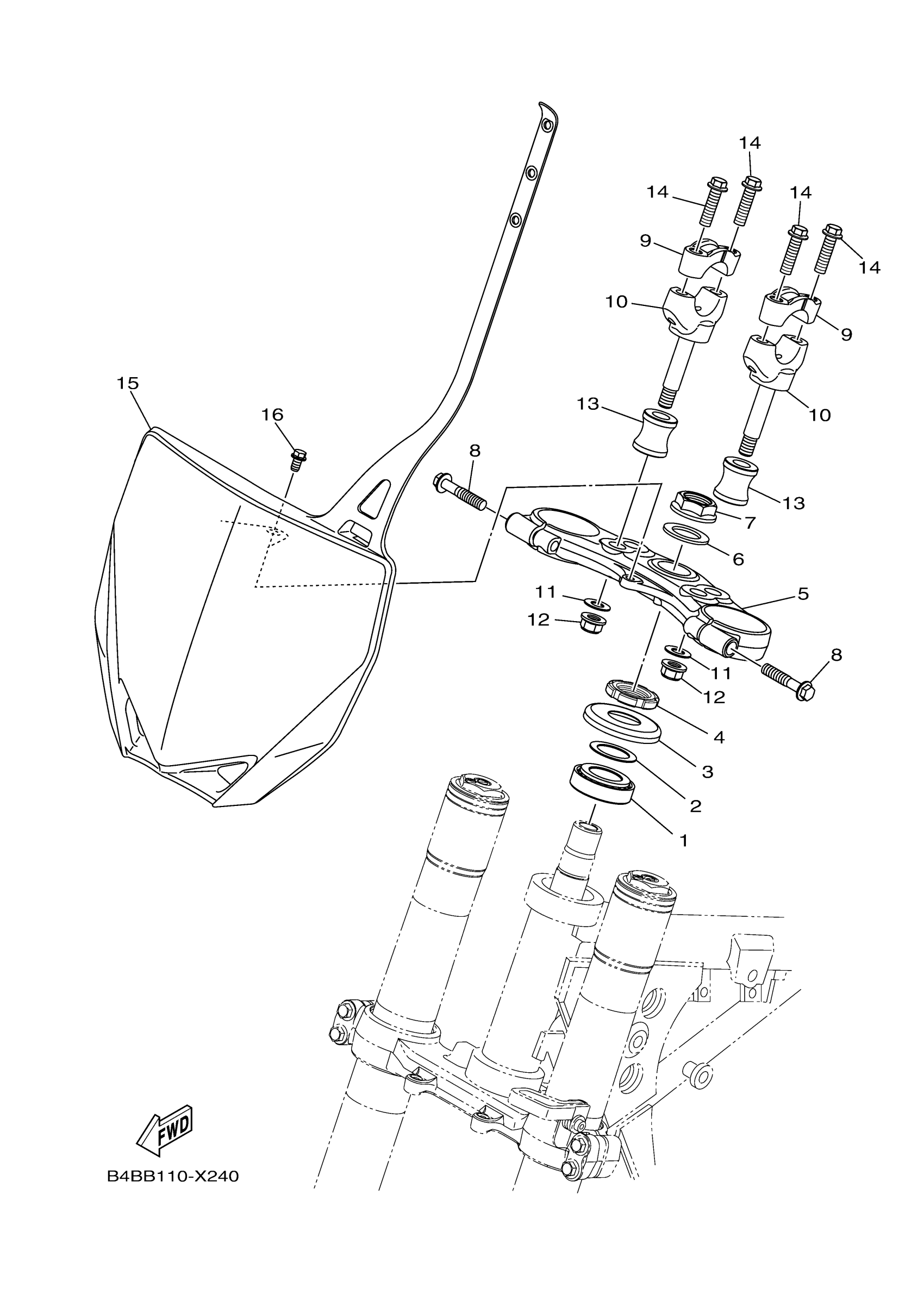

2022 Yamaha YZ85 (YZ85N) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING(4ES)

93332-00079-00

1

$61.86

In stock

2

WASHER, PLATE(1FK)

90201-256K5-00

1

$10.38

In stock

3

COVER, BALL RACE 1

1J7-23415-00-00

1

$6.43

In stock

4

NUT

90179-25004-00

1

$20.78

In stock

5

CROWN, HANDLE

BR8-23435-00-00

—

$122.22

In stock

6

WASHER, PLATE

90201-22018-00

1

$4.11

In stock

7

NUT

90179-22025-00

1

$16.55

In stock

8

BOLT, FLANGE DEEP RECESS

95E32-08040-00

1

$0.75

In stock

9

HOLDER, HANDLE UPPER

B2W-23441-00-00

1

$26.38

In stock

10

HOLDER, HANDLE LOWER

BR9-23442-00-00

1

$35.78

In stock

11

WASHER, PLATE

90201-10045-00

1

$6.17

In stock

12

NUT, S/L FLANGE

95602-10200-00

1

$2.29

In stock

13

COLLAR

B4B-23113-00-00

1

$12.82

In stock

14

BOLT, FLANGE DEEP RECESS

95E34-08030-00

1

$1.54

In stock

15

PLATE, NUMBER

1SN-23485-10-00

1

$27.82

In stock

16

BOLT, FLANGE

90105-06064-00

—

$2.66

In stock
