2022 Yamaha YZ85 (YZ85N) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2022 Yamaha YZ85 (YZ85N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

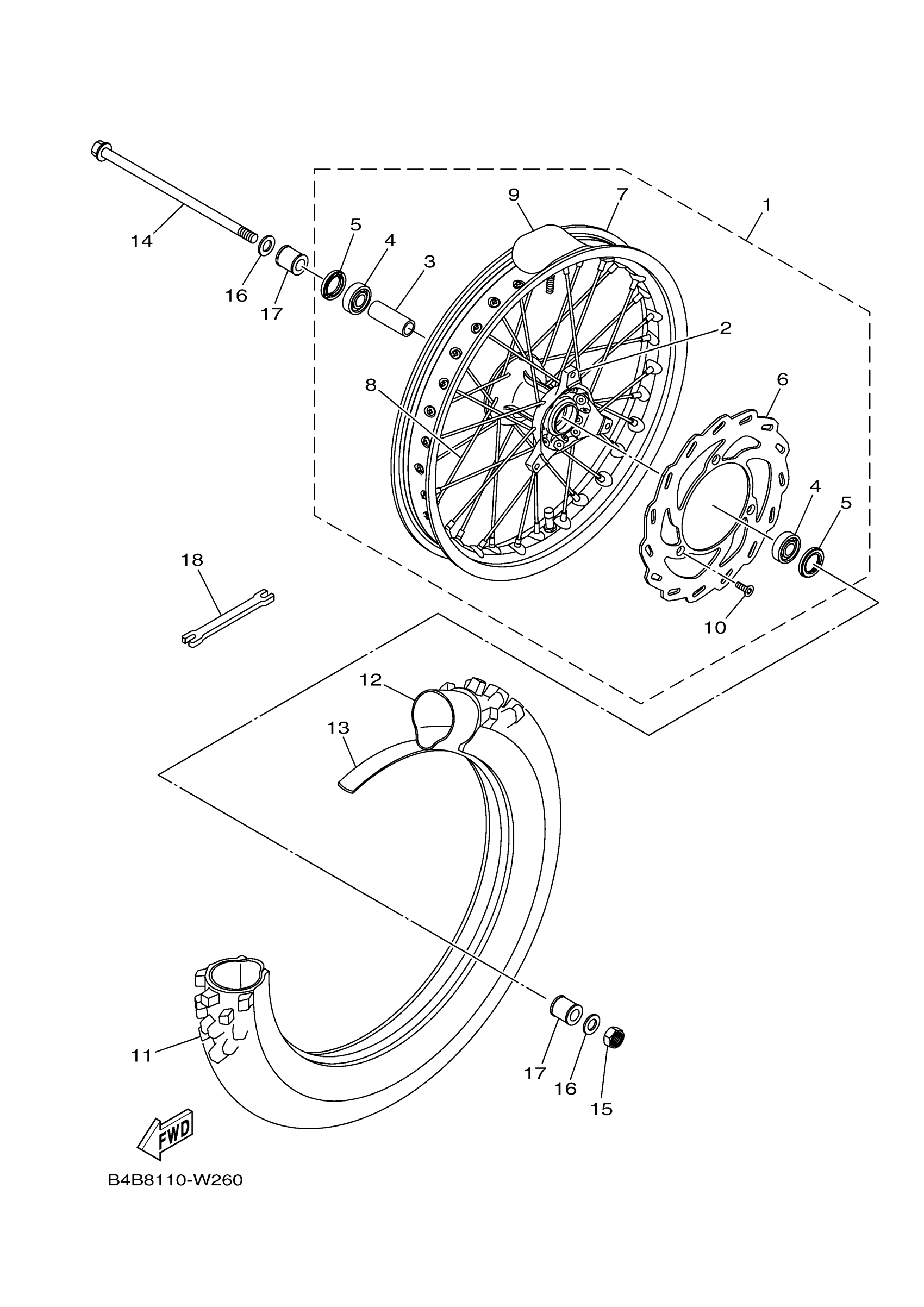

2022 Yamaha YZ85 (YZ85N) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL RIM ASSY

B4B-25102-00-00

1
Out of stock

2

HUB, FRONT

4ES-25111-01-00

1
Out of stock

3

COLLAR (26H)

90387-124H0-00

1
Out of stock

4

BEARING(3WF)

93306-20119-00

1
Out of stock

5

OIL SEAL (22X32X5-818)

93102-22087-00

1
Out of stock

6

DISC, BRAKE (LEFT)

B4B-2582T-00-00

1
Out of stock

7

RIM (1.40-17)

94414-17013-00

—
Out of stock

8

SPOKE SET, FRONT

4ES-25104-20-00

1
Out of stock

9

SPACER, BEAD

1T1-25194-00-00

—
Out of stock

10

SCREW, COUNTERSUNK

90151-06080-00

1
Out of stock

11

TIRE (70/100-17 40M MX3SF)

94107-17024-00

1
Out of stock

12

TUBE (70/100-17 TR4)(4ES)

94207-17284-00

1
Out of stock

13

BAND, RIM (22-17)

94307-17166-00

1
Out of stock

14

AXLE, WHEEL

4ES-25181-00-00

1
Out of stock

15

NUT, SELF-LOCKING

90185-12010-00

1
Out of stock

16

WASHER, PLATE

90201-12055-00

—
Out of stock

17

COLLAR, WHEEL

BR8-25183-00-00

—
Out of stock

18

WRENCH, HEXAGON

1RH-28166-00-00

—
Out of stock
