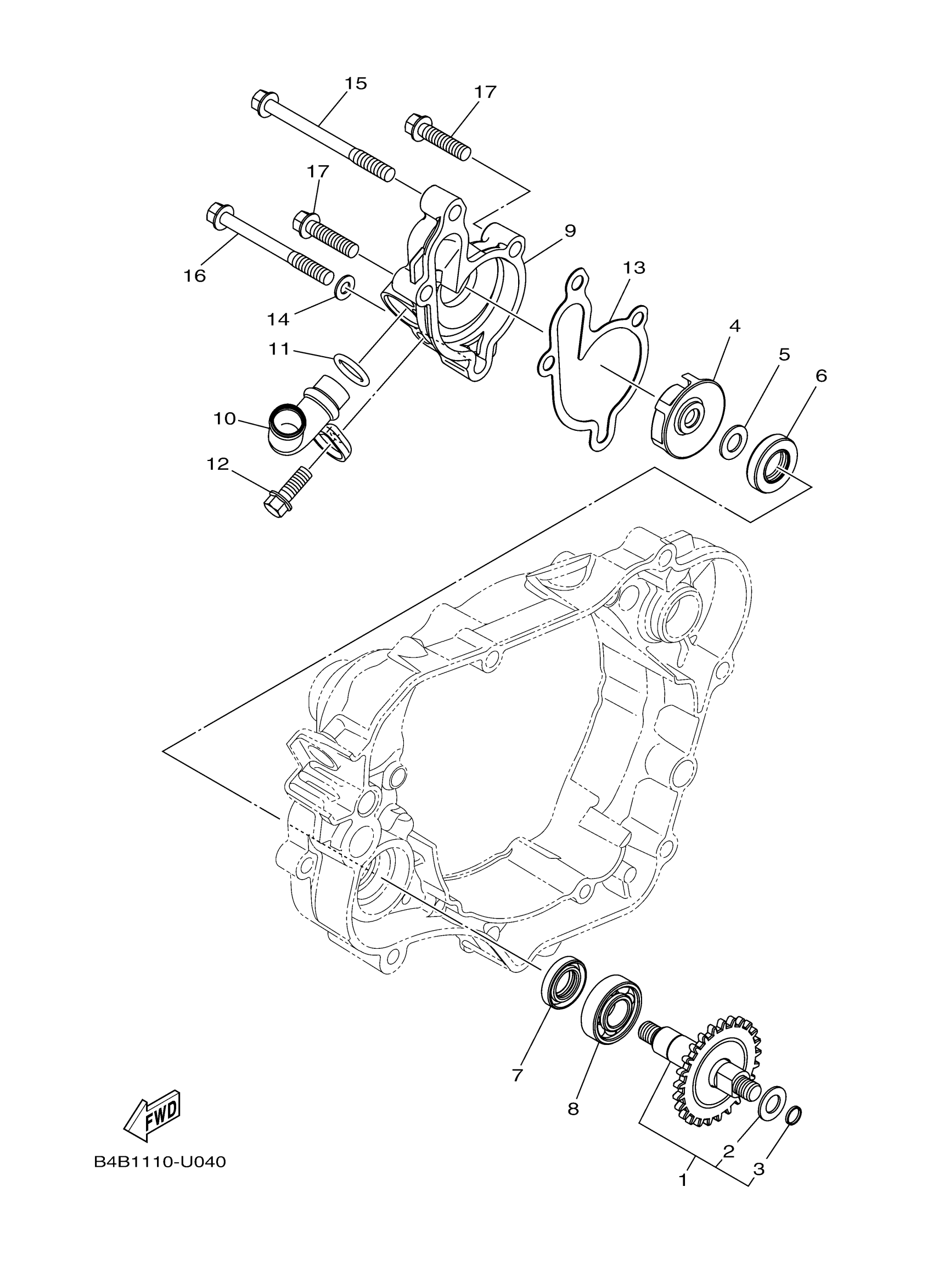

Yamaha YZ85M (YZ85) B4B8 2021 WATER PUMP Diagram

#

Description
Price

1

GEAR, IMPELLER SHAFT

5PA-12459-00-00

$113.99

2

WASHER, PLATE (5F7)

90201-08512-00

$8.49

3

CIRCLIP

93440-07182-00

$3.78

4

IMPELLER, WATER PUMP

5PA-12451-00-00

$55.99

5

WASHER, PLATE (5F7)

90201-08512-00

$8.49

6

OIL SEAL

93109-11073-00

$11.49

7

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

8

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

9

COVER, HOUSING

BR8-12422-00-00

$60.99

10

PIPE 1

B4B-12481-00-00

$28.99

11

O-RING(36Y)

93210-13657-00

$7.49

12

BOLT, FLANGE DEEP RECESS

95E32-06016-00

$0.60

13

GASKET, HOUSING COVER 2

BR8-12428-00-00

$3.40

14

GASKET (4V2)

90430-06166-00

$3.76

15

BOLT, FLANGE DEEP RECESS

95E32-06070-00

$0.70

16

BOLT, FLANGE DEEP RECESS

95E32-06060-00

Unavailable

17

BOLT, FLANGE DEEP RECESS

95E32-06025-00

Unavailable
