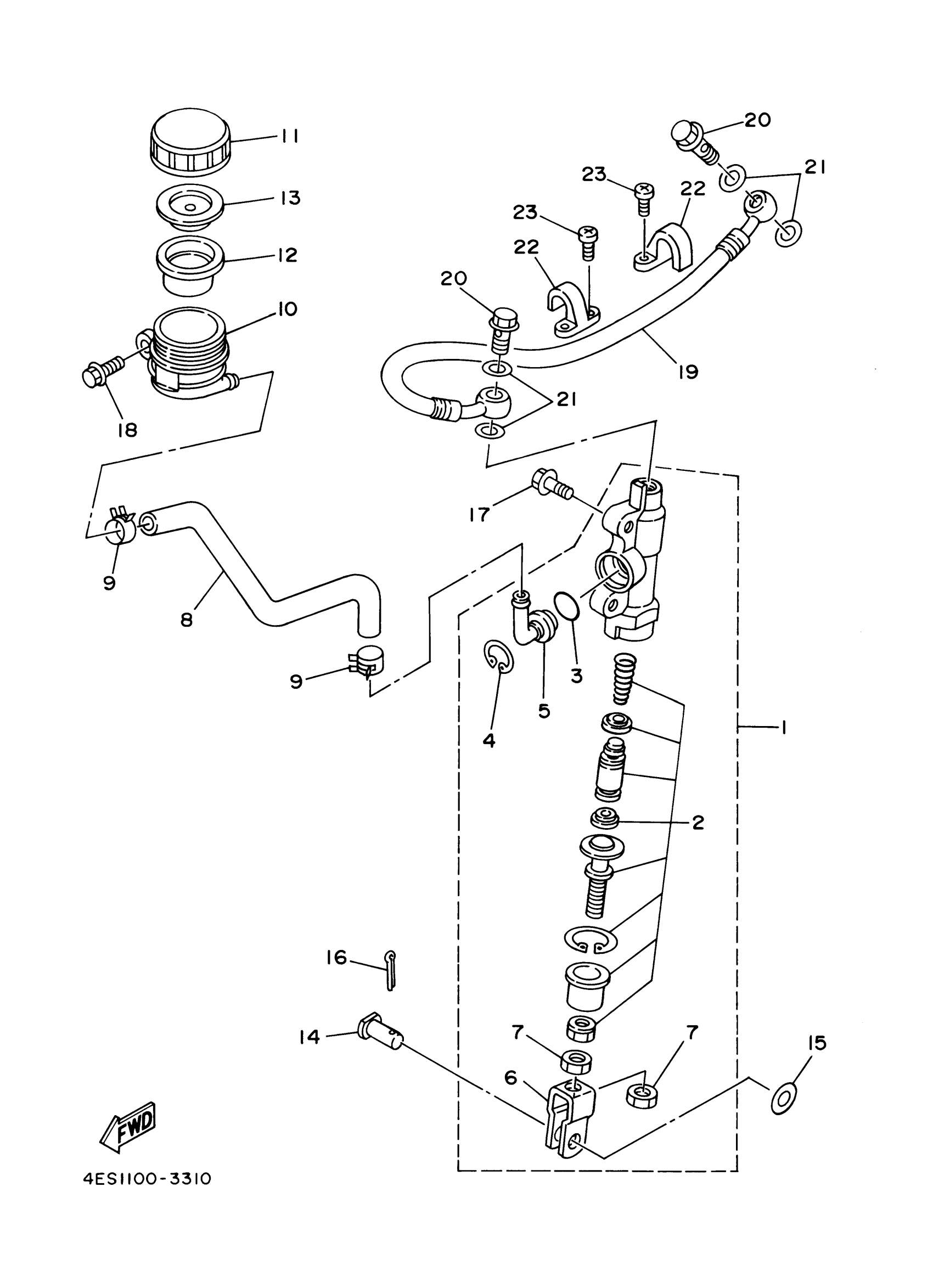

Yamaha YZ85M (YZ85) B4B8 2021 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

4ES-2583V-00-00

$136.99

2

CYLINDER KIT, MASTER

1FK-W0042-50-00

$70.99

3

O-RING (22U)

93210-15566-00

$7.49

4

CIRCLIP

2VN-25866-00-00

$6.99

5

JOINT

2VN-2582A-50-00

$20.99

6

JOINT

2YK-27222-00-00

$21.99

7

NUT(6TA)

95337-08600-00

$8.49

8

HOSE, RESERVOIR

4ES-25895-01-00

$30.99

9

CLIP (7K7)

90467-11044-00

$8.49

10

TANK, RESERVOIR

4EW-25894-00-00

$23.99

11

CAP, RESERVOIR

3XP-25852-50-00

$22.99

12

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

13

BUSH,DIAPHRAGM

2VN-25855-00-00

$10.99

14

PIN, CLEVIS(2YK)

90240-08124-00

$7.49

15

WASHER, PLATE 1562722600

90201-08083-00

$9.49

16

PIN, COTTER

91490-16020-00

Unavailable

17

BOLT, FLANGE

90105-06090-00

Unavailable

18

BOLT, FLANGE DEEP RECESS

95E32-06012-00

Unavailable

19

HOSE, BRAKE 2

B4B-25873-00-00

Unavailable

20

BOLT, UNION

90401-10172-00

Unavailable

21

GASKET

90430-10005-00

Unavailable

22

HOLDER, BRAKE HOSE

1C3-25886-50-00

Unavailable

23

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable
