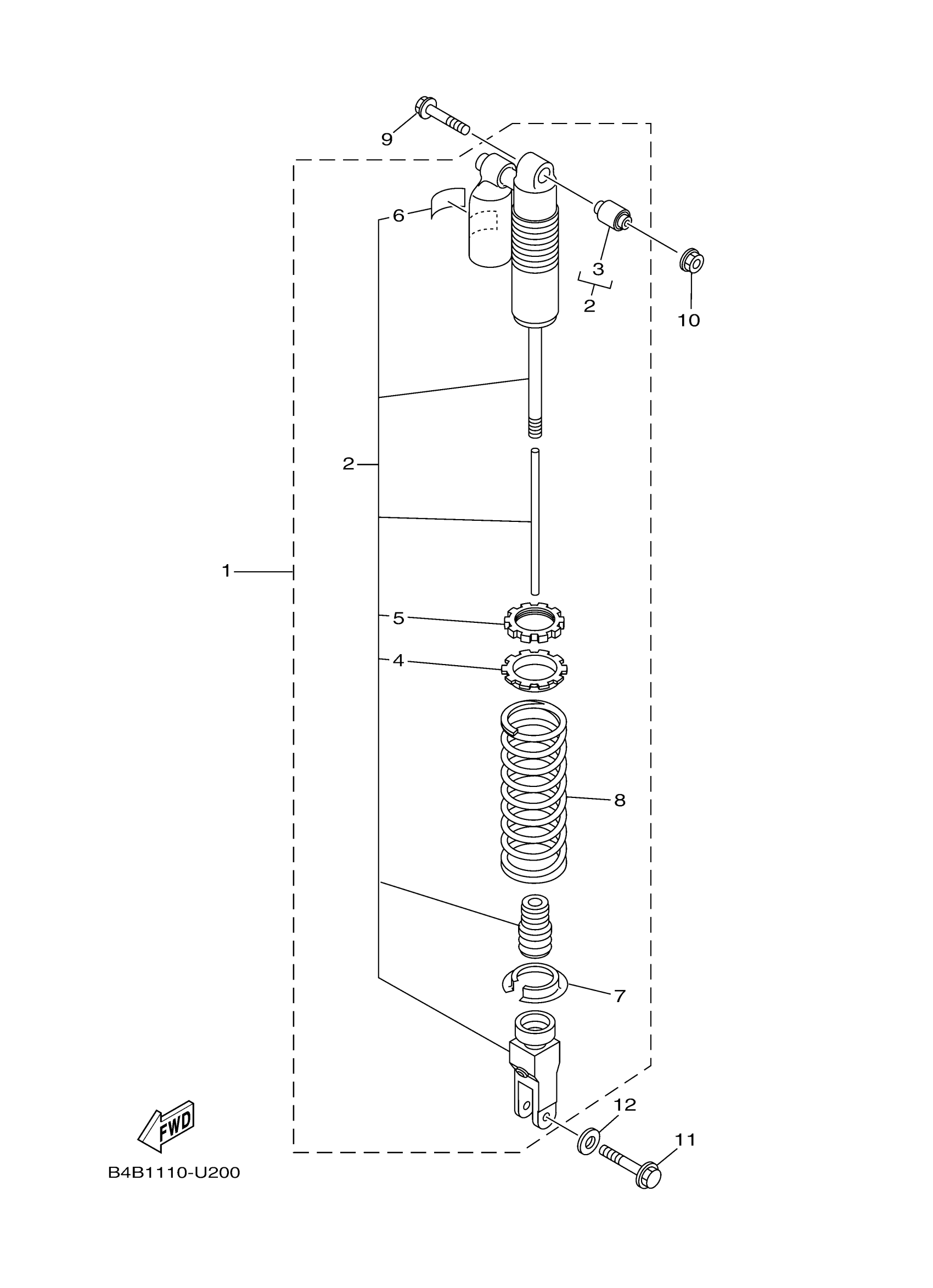

Yamaha YZ85M (YZ85) B4B8 2021 REAR ARM SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

B4B-22200-00-00

Unavailable

2

DAMPER SUB ASSY

B4B-22201-00-00

Unavailable

3

BUSH, REAR SHOCK ABSORBER

4ES-22216-00-00

$33.06

4

GUIDE, SPRING 1

4ES-22214-00-00

Unavailable

5

NUT 1

4ES-22251-00-00

Unavailable

6

LABEL, WARNING

4AA-22259-80-00

$11.85

7

GUIDE, SPRING 1

3JD-22214-00-00

$14.88

8

SPRING (K=5.0)

4ES-22212-F0-00

Unavailable

9

BOLT, FLANGE

90105-10390-00

$4.67

10

NUT

90179-10024-00

$8.20

11

BOLT, WASHER BASED(3XJ)

90105-10614-00

$8.69

12

WASHER, PLATE

90201-11016-00

$3.52
