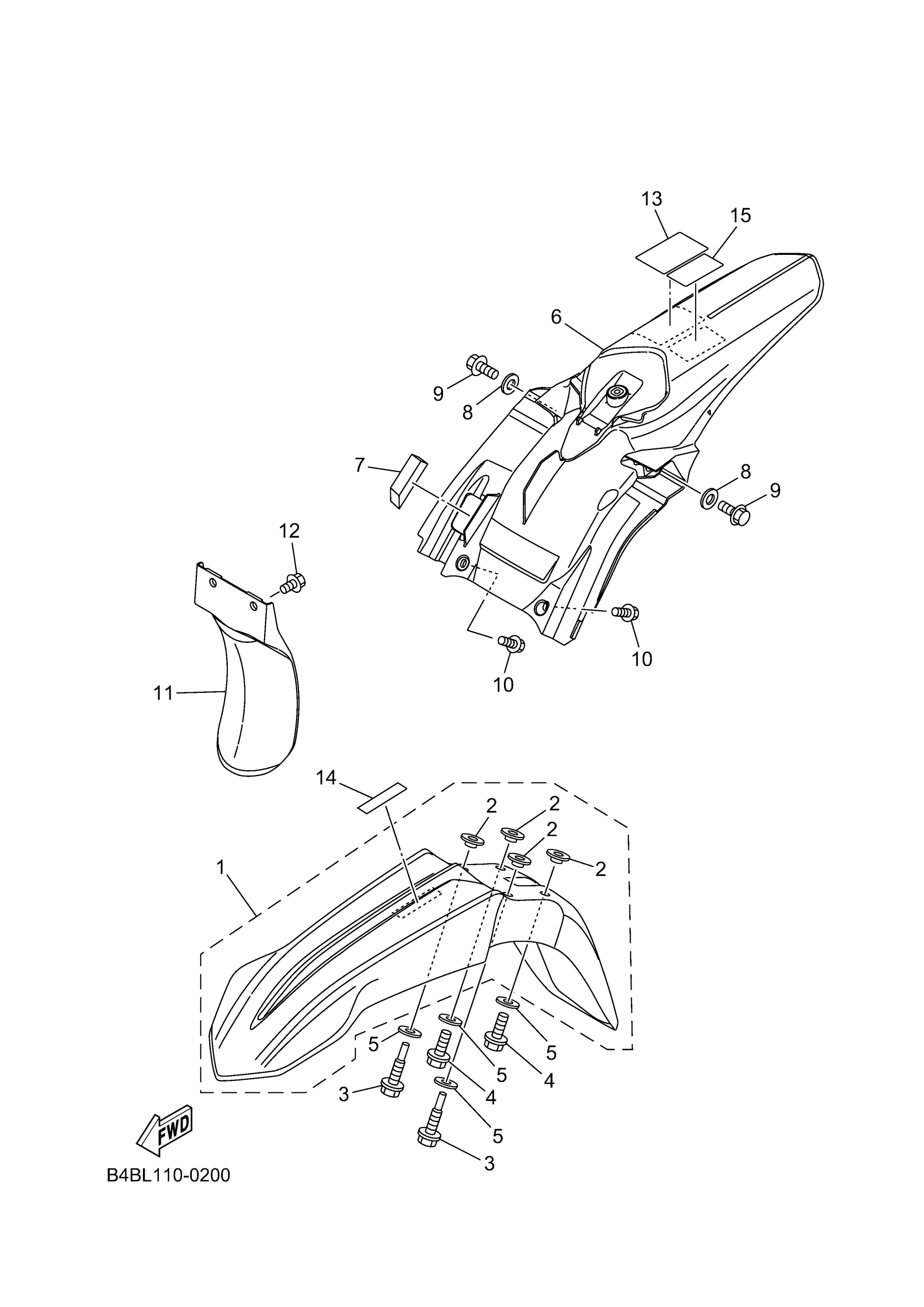

Yamaha YZ85LWT (YZ85 LW) B0GU 2026 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

B4B-21510-00-00

Unavailable

2

COLLAR

90387-06259-00

$5.76

3

BOLT, FLANGE

90105-06210-00

$8.77

4

BOLT, FLANGE

90105-06127-00

$5.75

5

WASHER, PLATE

90201-06077-00

$4.76

6

REAR FENDER COMP.

B4B-21610-10-00

$40.58

7

DAMPER 2

B4B-21639-00-00

$2.23

8

WASHER, PLATE

90201-06032-00

$5.76

9

BOLT, FLANGE

90105-06100-00

$5.20

10

BOLT, WITH WASHER

90119-06268-00

$1.93

11

GUARD, FLAP

4ES-21642-01-00

$33.68

12

SCREW, TAPPING

97702-60016-00

$1.15

13

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

14

LABEL, CAUTION

3XJ-2415E-A2-00

$1.40

15

PLATE, COMPETITION USA

17D-2812P-00-00

$5.70
