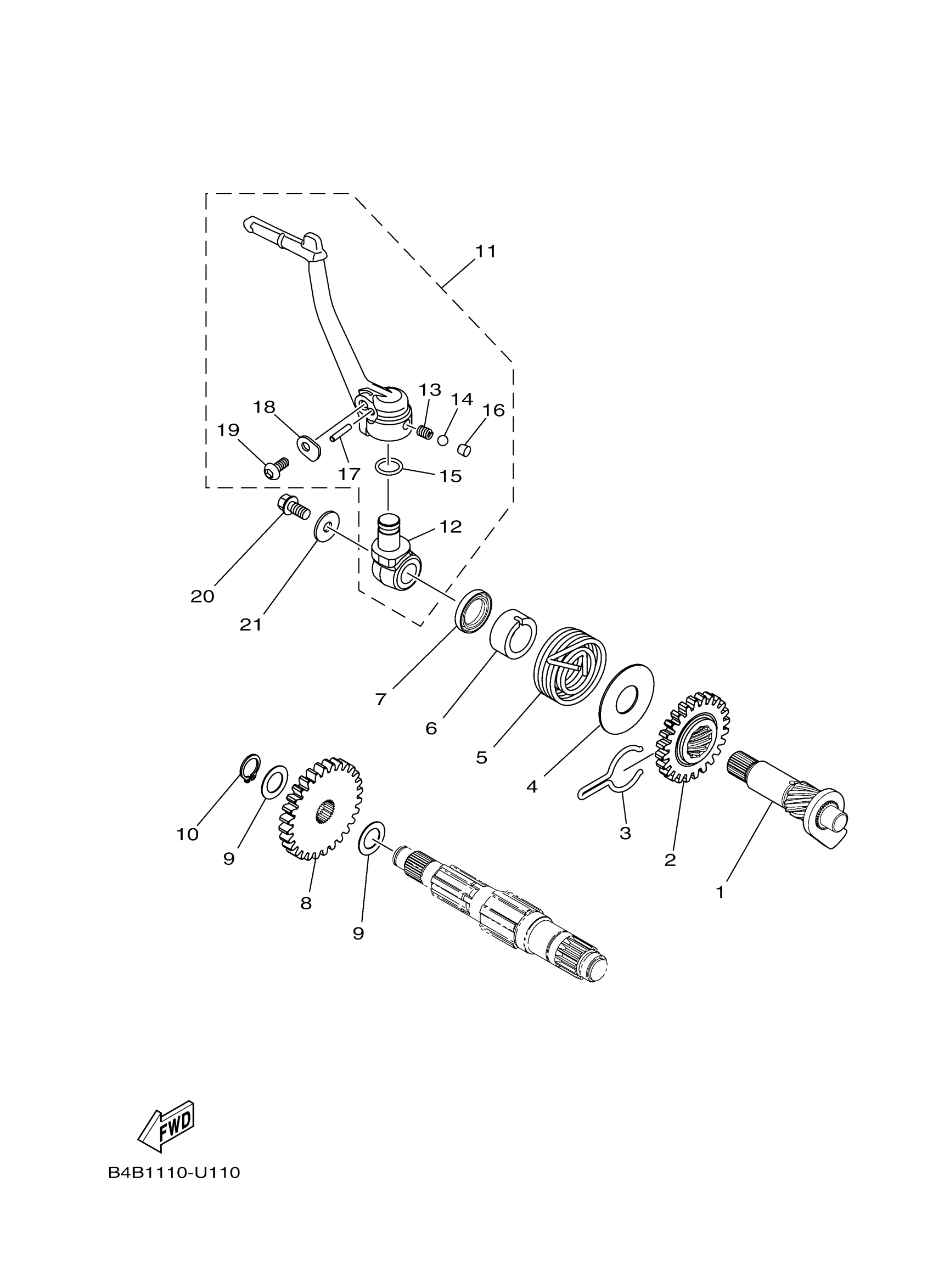

Yamaha YZ85LWS (YZ85 LW) B0GP 2025 STARTER Diagram

#

Description
Price

1

KICK AXLE ASSY

5PA-15660-00-00

$83.72

2

GEAR, KICK

5PA-15641-00-00

$72.05

3

CLIP(4ES)

90468-23194-00

$7.37

4

WASHER, PLATE(2UV)

90201-176L4-00

$7.58

5

SPRING, TORSION(2UV)

90508-26750-00

$9.87

6

GUIDE, SPRING

4ES-15664-00-00

$26.35

7

OIL SEAL (15A)

93102-17263-00

$8.31

8

GEAR, KICK IDLE

5PA-15651-00-00

$59.27

9

WASHER, PLATE (10X)

90201-124F8-00

$5.86

10

CIRCLIP(10Y)

99009-12400-00

$2.87

11

KICK CRANK ASSY

BR8-15620-00-00

$123.42

12

BOSS, KICK CRANK

BR8-15621-00-00

$49.76

13

SPRING COMPRESSION278156220000

90501-12081-00

$5.75

14

BALL (12R)

93507-32031-00

$3.65

15

O-RING (256)

93210-12152-00

$6.29

16

PLUG, TAPER(3FA)

90336-06031-00

Unavailable

17

PIN, DOWEL(1HX)

93603-16219-00

Unavailable

18

PLATE, THRUST 1

4JY-11915-10-00

Unavailable

19

BOLT,HEX. SOCKET BUTTON

90111-05053-00

Unavailable

20

BOLT, FLANGE DEEP RECESS

95E32-06012-00

Unavailable

21

WASHER, PLATE

90201-06020-00

Unavailable
