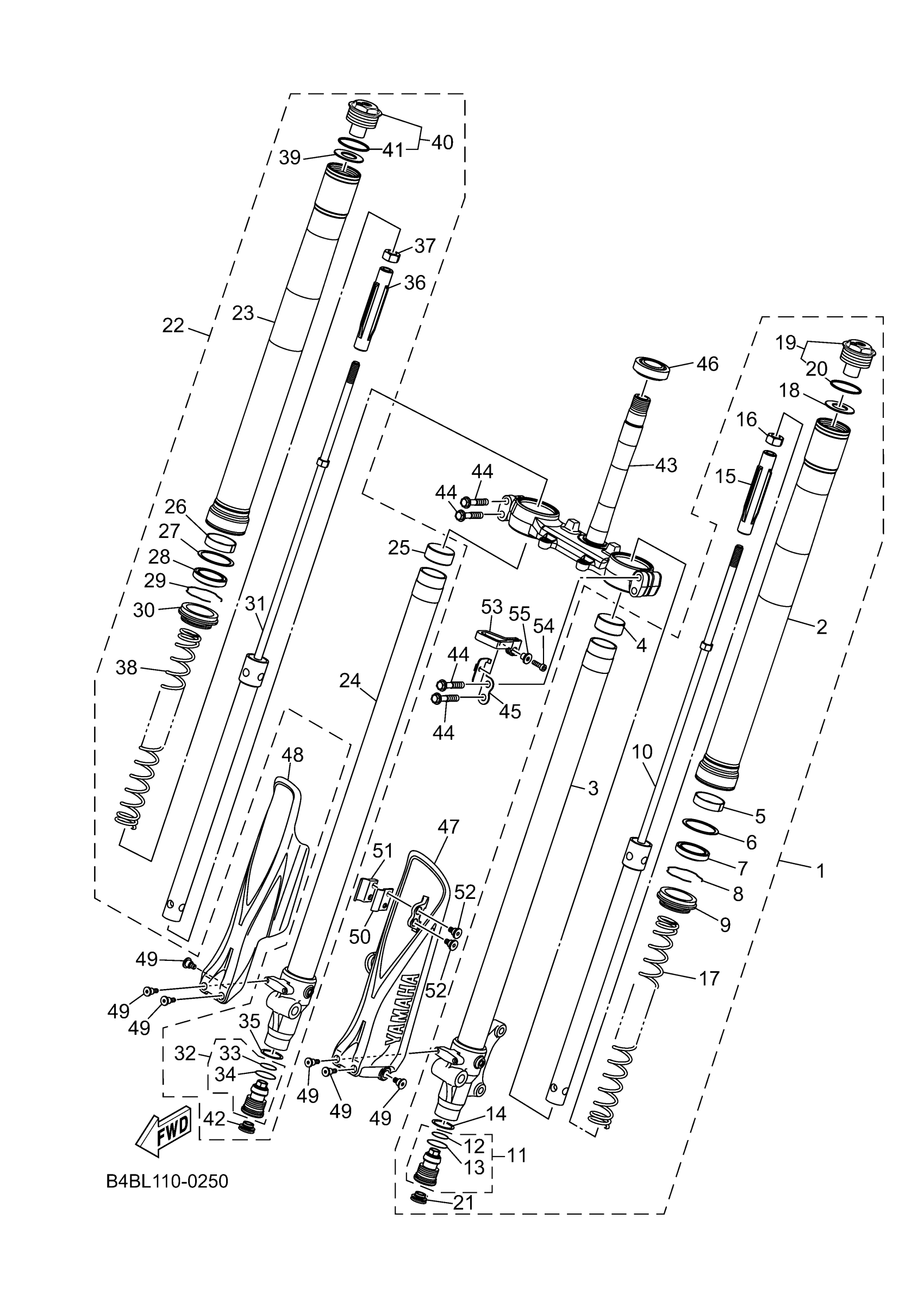

Yamaha YZ85LWS (YZ85 LW) B0GP 2025 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

B0G-23102-02-00

$871.99

2

TUBE, OUTER 2

B4B-23136-00-00

$654.99

3

INNER TUBE COMP.2

B4B-23120-00-00

Unavailable

4

PISTON, FRONT FORK

5PA-23171-00-00

$30.99

5

METAL, SLIDE 1

5PA-23125-00-00

$19.99

6

WASHER, SPRING UPPER

5K5-23149-00-00

$7.99

7

OIL SEAL

4ES-23145-00-00

$22.99

8

RING, SNAP

4A1-23156-00-00

$5.49

9

SEAL, DUST

4ES-23144-00-00

$24.99

10

CYLINDER COMP., FRONT FORK

B4B-23170-01-00

$369.99

11

VALVE COMP.

B0G-2316A-01-00

Unavailable

12

O-RING

4DA-23147-L1-00

$6.99

13

GASKET

276-23114-02-00

$3.33

14

GASKET

2HH-23158-L0-00

$10.99

15

SEAT, SPRING UPPER

B4B-23142-01-00

$33.99

16

NUT

3XJ-23357-L0-00

Unavailable

17

SPRING, FRONT FORK

4LB-23141-10-00

Unavailable

18

WASHER, SPRING UPPER

5PA-23149-00-00

Unavailable

19

BOLT, CAP

BR8-23111-01-00

Unavailable

20

O-RING

4V4-23188-L1-00

Unavailable

21

PLUG, HOLE

3JD-2312G-L1-00

Unavailable

22

FRONT FORK ASSY (R.H)

B0G-23103-02-00

Unavailable

23

TUBE, OUTER 2

B4B-23136-00-00

$654.99

24

INNER TUBE COMP.1

B4B-23110-00-00

Unavailable

25

PISTON, FRONT FORK

5PA-23171-00-00

$30.99

26

METAL, SLIDE 1

5PA-23125-00-00

$19.99

27

WASHER, SPRING UPPER

5K5-23149-00-00

$7.99

28

OIL SEAL

4ES-23145-00-00

$22.99

29

RING, SNAP

4A1-23156-00-00

$5.49

30

SEAL, DUST

4ES-23144-00-00

$24.99

31

CYLINDER COMP., FRONT FORK

B4B-23170-01-00

$369.99

32

VALVE COMP.

B0G-2316A-01-00

Unavailable

33

O-RING

4DA-23147-L1-00

$6.99

34

GASKET

276-23114-02-00

$3.33

35

GASKET

2HH-23158-L0-00

$10.99

36

SEAT, SPRING UPPER

B4B-23142-01-00

$33.99

37

NUT

3XJ-23357-L0-00

Unavailable

38

SPRING, FRONT FORK

4LB-23141-10-00

Unavailable

39

WASHER, SPRING UPPER

5PA-23149-00-00

Unavailable

40

BOLT, CAP

BR8-23111-01-00

Unavailable

41

O-RING

4V4-23188-L1-00

Unavailable

42

PLUG, HOLE

3JD-2312G-L1-00

Unavailable

43

UNDER BRACKET COMP.

BR8-23340-00-00

Unavailable

44

BOLT 1

5PA-23346-00-00

Unavailable

45

GUIDE, CABLE

BR8-2331E-00-00

Unavailable

46

BEARING(4ES)

93332-00079-00

Unavailable

47

PROTECTOR 1

B4B-2315H-20-00

Unavailable

48

PROTECTOR 2

B4B-2315J-20-00

Unavailable

49

BOLT

90109-06232-00

Unavailable

50

CLAMP

17D-23466-00-00

Unavailable

51

CLAMP

17D-23467-00-00

Unavailable

52

BOLT

90109-06232-00

Unavailable

53

GUIDE, CABLE

5TJ-23389-80-00

Unavailable

54

BOLT, SOCKET

91317-05016-00

Unavailable

55

COLLAR

90387-05065-00

Unavailable
