Description

Price

1

EXHAUST PIPE ASSY 1

B4B-14610-00-00

Unavailable

2

O-RING(2HF)

93210-40745-00

$11.49

3

STAY, MUFFLER 1

565-14771-01-00

$18.49

4

BOLT, WITH WASHER

90119-06133-00

$5.60

5

JOINT, EXHAUST 1

17W-14615-00-00

$43.99

6

GROMMET

90480-18411-00

$11.49

7

COLLAR(34X)

90387-105L0-00

$10.49

8

WASHER, PLATE

90201-06086-00

$7.49

9

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

10

SPRING, TENSION

90506-20018-00

$9.49

11

BOLT, WITH WASHER

90119-06133-00

$5.60

12

SILENCER, EXHAUST

4ES-14753-30-00

Unavailable

13

FIBER

4ES-1469A-00-00

Unavailable

14

BOLT(1KT)

90109-060E9-00

$10.49

15

WASHER, PLATE

90201-06045-00

$8.49

16

GROMMET(4EW)

90480-16561-00

Unavailable

17

COLLAR

90387-06168-00

Unavailable

18

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

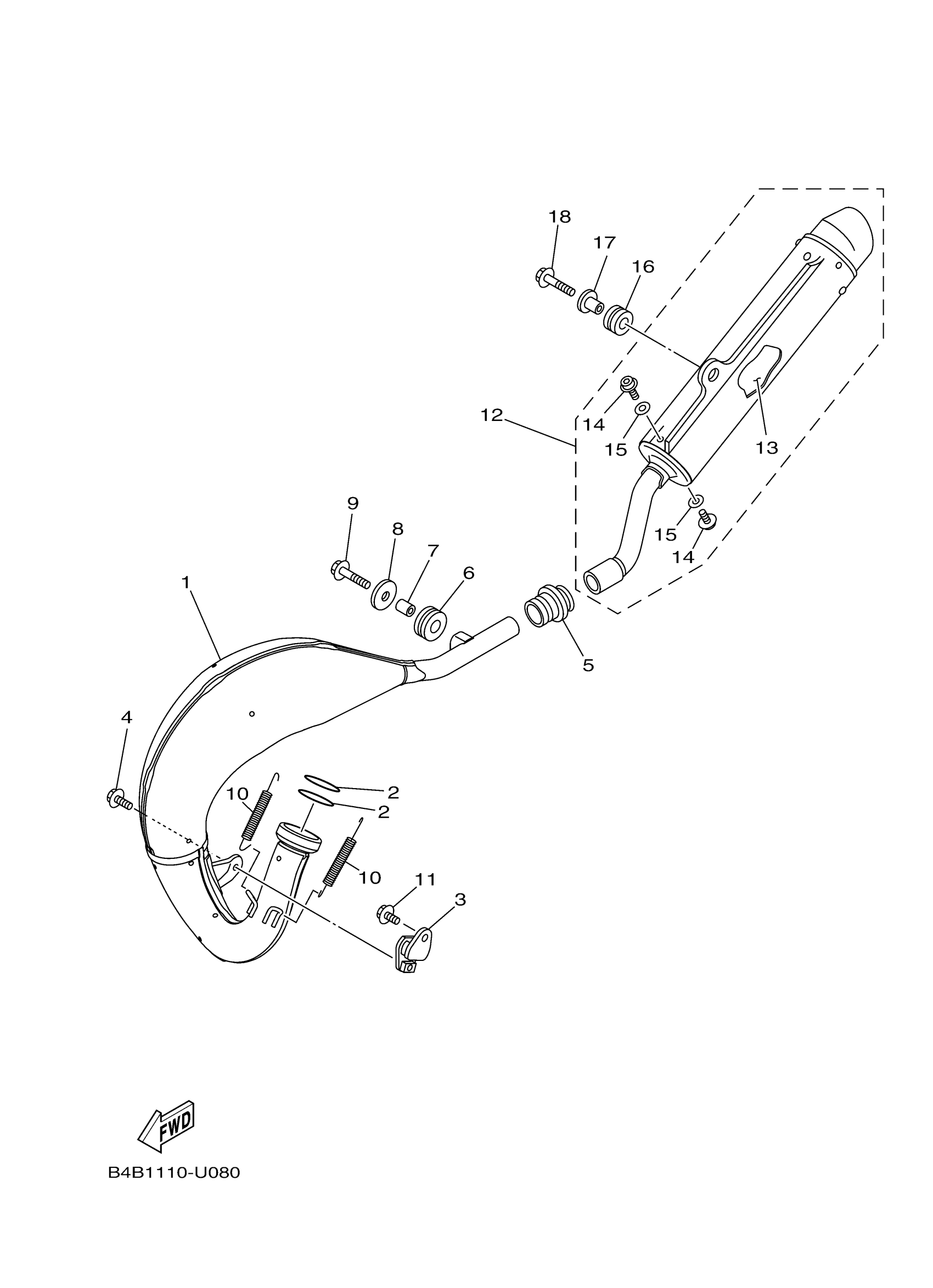

Yamaha YZ85LWS (YZ85 LW) B0GP 2025 EXHAUST Diagram

EXHAUST PIPE ASSY 1

O-RING(2HF)

STAY, MUFFLER 1

BOLT, WITH WASHER

JOINT, EXHAUST 1

GROMMET

COLLAR(34X)

WASHER, PLATE

BOLT, FLANGE DEEP RECESS

SPRING, TENSION

BOLT, WITH WASHER

SILENCER, EXHAUST

FIBER

BOLT(1KT)

WASHER, PLATE

GROMMET(4EW)

COLLAR

BOLT, FLANGE DEEP RECESS
