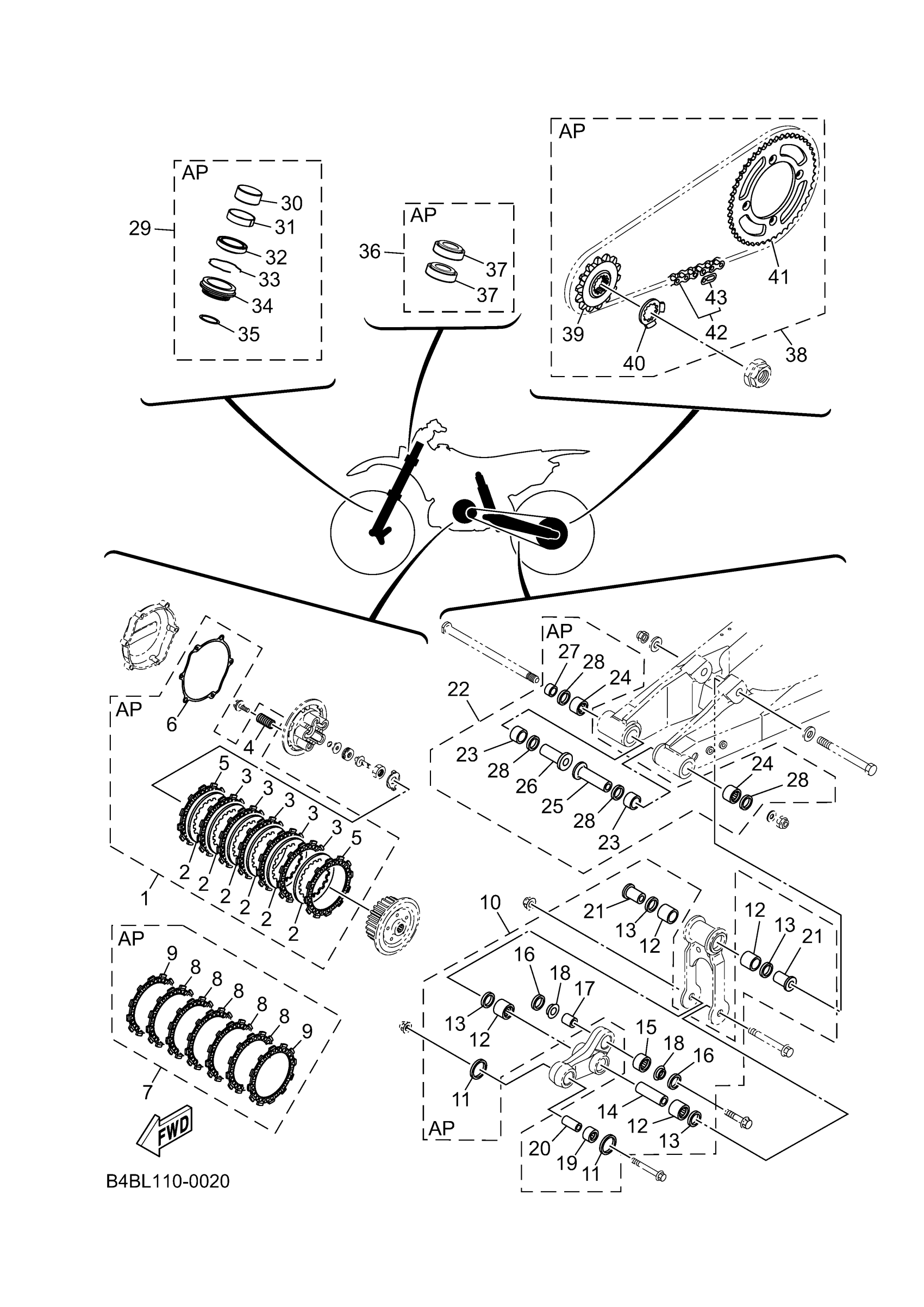

Yamaha YZ85LWS (YZ85 LW) B0GP 2025 3 MAINTENANCE PARTS KIT Diagram

#

Description
Price

1

CLUTCH PLATE KIT

B4B-W001G-00-00

$129.99

2

PLATE, CLUTCH 1

131-16324-10-00

$20.99

3

PLATE, FRICTION

4ES-16321-00-00

$18.49

4

SPRING, COMPRESSION(58T)

90501-204A0-00

$8.49

5

PLATE, FRICTION

3XP-16321-00-00

$19.99

6

GASKET, CARBURETOR COVER 2

5PA-15463-00-00

$14.49

7

FRICTION PLATE KIT

B4B-W001M-00-00

$74.99

8

PLATE, FRICTION

4ES-16321-00-00

$18.49

9

PLATE, FRICTION

3XP-16321-00-00

$19.99

10

SHOCK LINKAGE BEARING KIT

B4B-W002E-00-00

$169.99

11

OIL SEAL

93109-17071-00

$7.49

12

BEARING, CYLINDRICAL(3YL)

93317-31771-00

$36.99

13

OIL SEAL (17X25X4-401)

93101-17062-00

$14.99

14

BUSH, SOLID(4ES)

90380-12219-00

$28.99

15

BEARING

5PA-22176-00-00

$34.99

16

SEAL, DUST

5PA-22475-00-00

Unavailable

17

BUSH

5PA-22184-00-00

Unavailable

18

COLLAR, DISTANCE

5PA-22253-00-00

Unavailable

19

BEARING

93315-31759-00

Unavailable

20

COLLAR

90387-10116-00

Unavailable

21

BUSH, SOLID(4ES)

90381-12091-00

Unavailable

22

SWING ARM PIVOT BEARING KIT

1SN-W002C-00-00

Unavailable

23

BUSH(39K)

90385-17042-00

Unavailable

24

BEARING, CYLINDRICAL(39K)

93317-21746-00

Unavailable

25

COLLAR(39K)

90387-127J8-00

Unavailable

26

COLLAR(39K)

90387-127J7-00

Unavailable

27

COLLAR(4ES)

90387-1200U-00

Unavailable

28

OIL SEAL

93109-17071-00

$7.49

29

FORK SEAL KIT (ONE FORK)

BR8-W003B-00-00

Unavailable

30

PISTON, FRONT FORK

5PA-23171-00-00

Unavailable

31

METAL, SLIDE 1

5PA-23125-00-00

Unavailable

32

OIL SEAL

4ES-23145-00-00

Unavailable

33

RING, SNAP

4A1-23156-00-00

Unavailable

34

SEAL, DUST

4ES-23144-00-00

Unavailable

35

GASKET

2HH-23158-L0-00

Unavailable

36

STEERING BEARING K

B1U-W000B-00-00

Unavailable

37

BEARING(4ES)

93332-00079-00

Unavailable

38

CHAIN & SPROCKET KIT

B0G-W001A-00-00

Unavailable

39

SPROCKET, DRIVE (14T)

9382A-14227-00

Unavailable

40

WASHER, LOCK(2HG)

90215-20261-00

Unavailable

41

SPROCKET, DRIVEN (51T)

5PA-25451-00-00

Unavailable

42

CHAIN (DID 428DS 1

9Y582-43123-00

Unavailable

43

JOINT, CHAIN

94682-43001-00

Unavailable
