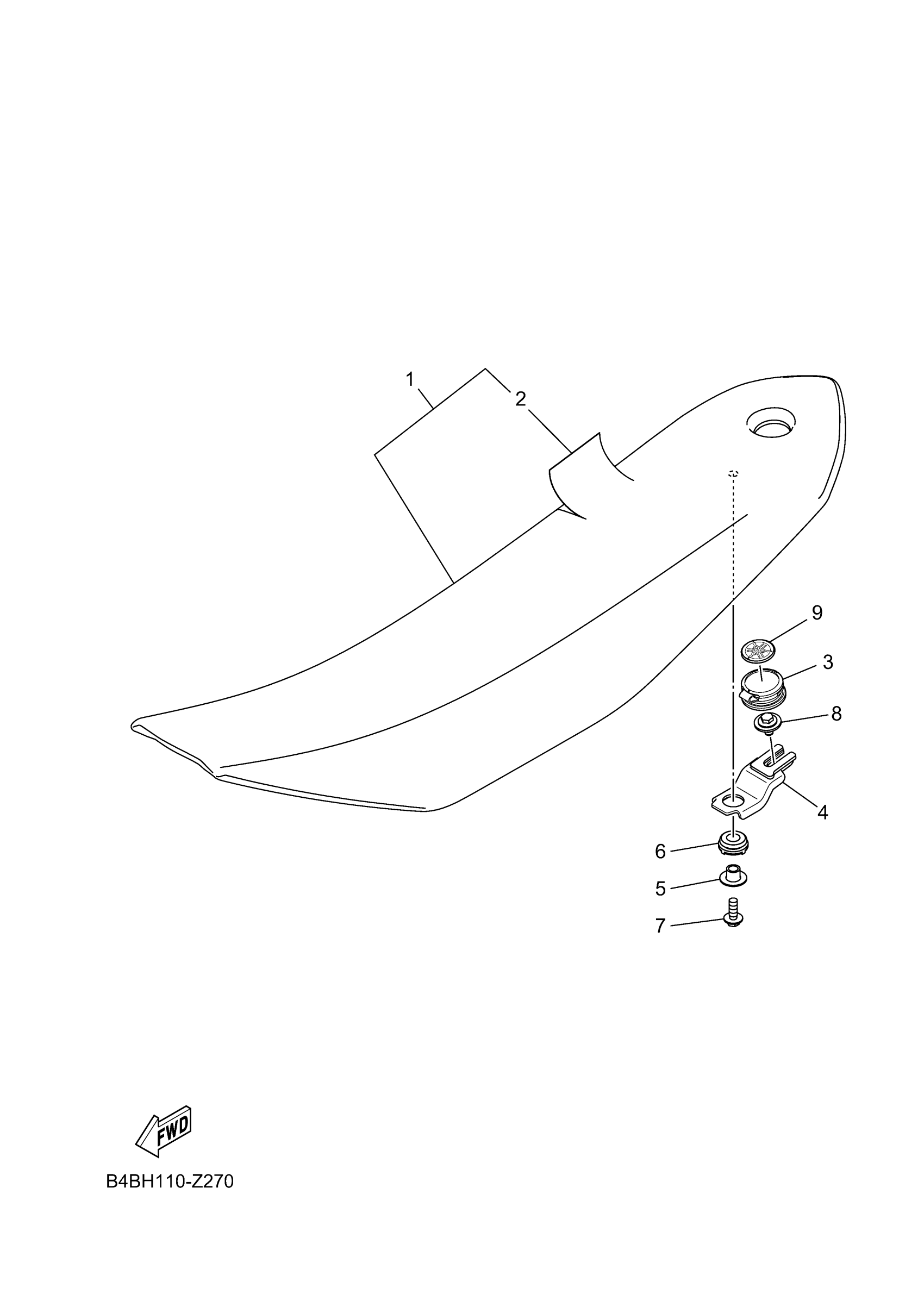

Yamaha YZ85LWR (YZ85 LW) B0GK 2024 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

B4B-24710-10-00

$209.32

2

SEAT COVER COMP.

B4B-2470F-10-00

$103.76

3

CAP,CASING

BCR-2476M-00-00

$14.44

4

BRACKET, SEAT

B4B-24718-10-00

$17.52

5

COLLAR (4N0)

90387-071E0-00

$5.73

6

GROMMET

90480-16016-00

$5.25

7

BOLT, FLANGE

90105-06170-00

$3.95

8

BOLT, FLANGE

90105-06234-00

$6.52

9

TUNING FORK MARK

4KN-2836B-10-00

$17.89
