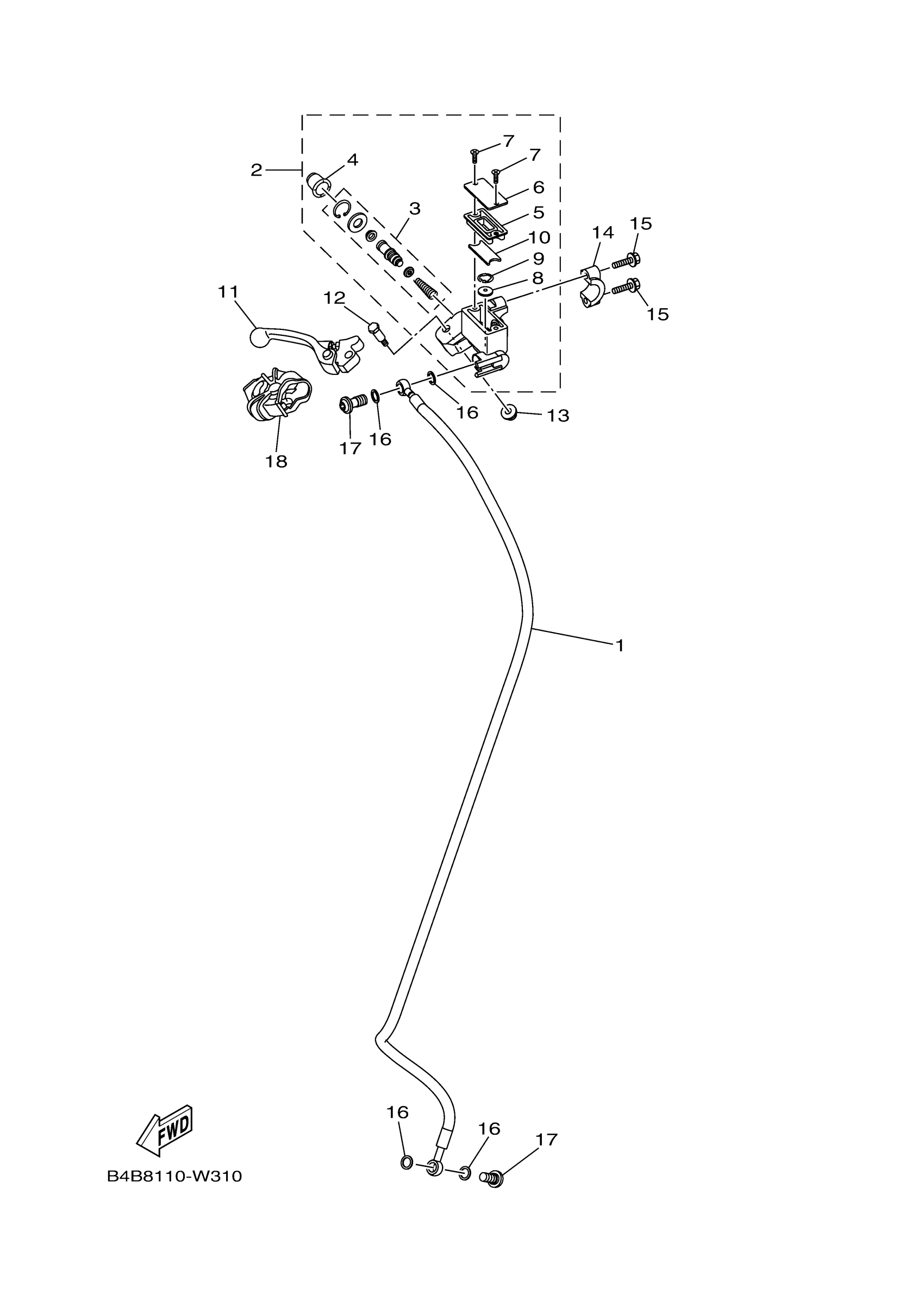

Yamaha YZ85LWR (YZ85 LW) B0GK 2024 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, BRAKE 1

B0G-25872-00-00

Unavailable

2

MASTER CYLINDER SUB ASSY

5XE-W2587-01-00

$185.99

3

CYLINDER KIT, MASTER

5NY-W0041-01-00

$55.99

4

BOOT, MASTER CYLINDER

5NY-25868-01-00

Unavailable

5

DIAPHRAGM, RESERVOIR

5XE-25854-00-00

$15.49

6

CAP, RESERVOIR

5MV-25852-01-00

$13.49

7

SCREW, FLAT

98707-04012-00

$2.18

8

SEPARATOR ASSY

5CG-25715-00-00

$13.49

9

CIRCLIP

5CG-2585G-00-00

$5.49

10

FLOAT, RESERVOIR

5XE-25853-00-00

$7.99

11

LEVER 2

5MV-83922-00-00

$51.99

12

BOLT, LEVER

5MV-2589F-00-00

$6.99

13

NUT, FLANGE(7NB)

95780-06500-00

$2.60

14

BRACKET, MASTER CYLINDER

5MV-25867-00-00

$20.99

15

BOLT, FITTING

5MV-25833-00-00

$6.99

16

GASKET

90430-10005-00

Unavailable

17

BOLT, UNION

90401-10172-00

Unavailable

18

COVER, HANDLE LEVER 1

5NY-26372-00-00

Unavailable
