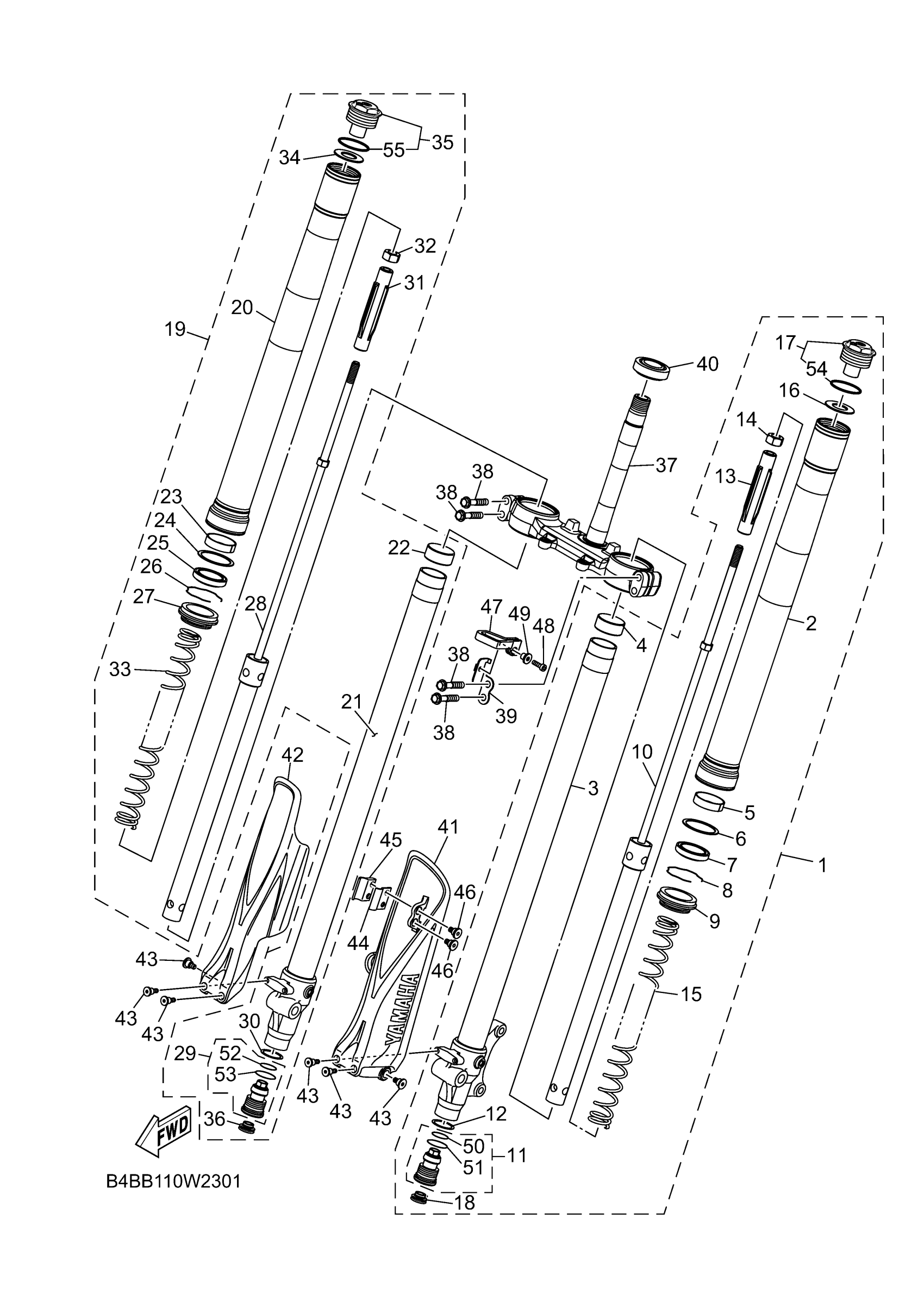

Yamaha YZ85LWR (YZ85 LW) B0GK 2024 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

B0G-23102-02-00

$699.99

2

TUBE, OUTER 2

B4B-23136-00-00

$482.56

3

INNER TUBE COMP.2

B4B-23120-00-00

Unavailable

4

PISTON, FRONT FORK

5PA-23171-00-00

$25.18

5

METAL, SLIDE 1

5PA-23125-00-00

$12.09

6

WASHER, SPRING UPPER

5K5-23149-00-00

$7.30

7

OIL SEAL

4ES-23145-00-00

$17.34

8

RING, SNAP

4A1-23156-00-00

$4.44

9

SEAL, DUST

4ES-23144-00-00

$19.21

10

CYLINDER COMP., FRONT FORK

B4B-23170-01-00

$241.27

11

VALVE COMP.

B0G-2316A-01-00

Unavailable

12

GASKET

2HH-23158-L0-00

$8.88

13

SEAT, SPRING UPPER

B4B-23142-01-00

$28.29

14

NUT

3XJ-23357-L0-00

$0.72

15

SPRING, FRONT FORK

4LB-23141-10-00

Unavailable

16

WASHER, SPRING UPPER

5PA-23149-00-00

Unavailable

17

BOLT, CAP

BR8-23111-01-00

Unavailable

18

PLUG, HOLE

3JD-2312G-L1-00

Unavailable

19

FRONT FORK ASSY (R.H)

B0G-23103-02-00

Unavailable

20

TUBE, OUTER 2

B4B-23136-00-00

$482.56

21

INNER TUBE COMP.1

B4B-23110-00-00

Unavailable

22

PISTON, FRONT FORK

5PA-23171-00-00

$25.18

23

METAL, SLIDE 1

5PA-23125-00-00

$12.09

24

WASHER, SPRING UPPER

5K5-23149-00-00

$7.30

25

OIL SEAL

4ES-23145-00-00

$17.34

26

RING, SNAP

4A1-23156-00-00

$4.44

27

SEAL, DUST

4ES-23144-00-00

$19.21

28

CYLINDER COMP., FRONT FORK

B4B-23170-01-00

$241.27

29

VALVE COMP.

B0G-2316A-01-00

Unavailable

30

GASKET

2HH-23158-L0-00

$8.88

31

SEAT, SPRING UPPER

B4B-23142-01-00

$28.29

32

NUT

3XJ-23357-L0-00

$0.72

33

SPRING, FRONT FORK

4LB-23141-10-00

Unavailable

34

WASHER, SPRING UPPER

5PA-23149-00-00

Unavailable

35

BOLT, CAP

BR8-23111-01-00

Unavailable

36

PLUG, HOLE

3JD-2312G-L1-00

Unavailable

37

UNDER BRACKET COMP.

BR8-23340-00-00

Unavailable

38

BOLT 1

5PA-23346-00-00

Unavailable

39

GUIDE, CABLE

BR8-2331E-00-00

Unavailable

40

BEARING(4ES)

93332-00079-00

Unavailable

41

PROTECTOR 1

B4B-2315H-20-00

Unavailable

42

PROTECTOR 2

B4B-2315J-20-00

Unavailable

43

BOLT

90109-06232-00

Unavailable

44

CLAMP

17D-23466-00-00

Unavailable

45

CLAMP

17D-23467-00-00

Unavailable

46

BOLT

90109-06232-00

Unavailable

47

GUIDE, CABLE

5TJ-23389-80-00

Unavailable

48

BOLT, SOCKET

91317-05016-00

Unavailable

49

COLLAR

90387-05065-00

Unavailable

50

O-RING

4DA-23147-L1-00

Unavailable

51

GASKET

276-23114-02-00

Unavailable

52

O-RING

4DA-23147-L1-00

Unavailable

53

GASKET

276-23114-02-00

Unavailable

54

O-RING

4V4-23188-L1-00

Unavailable

55

O-RING

4V4-23188-L1-00

Unavailable
