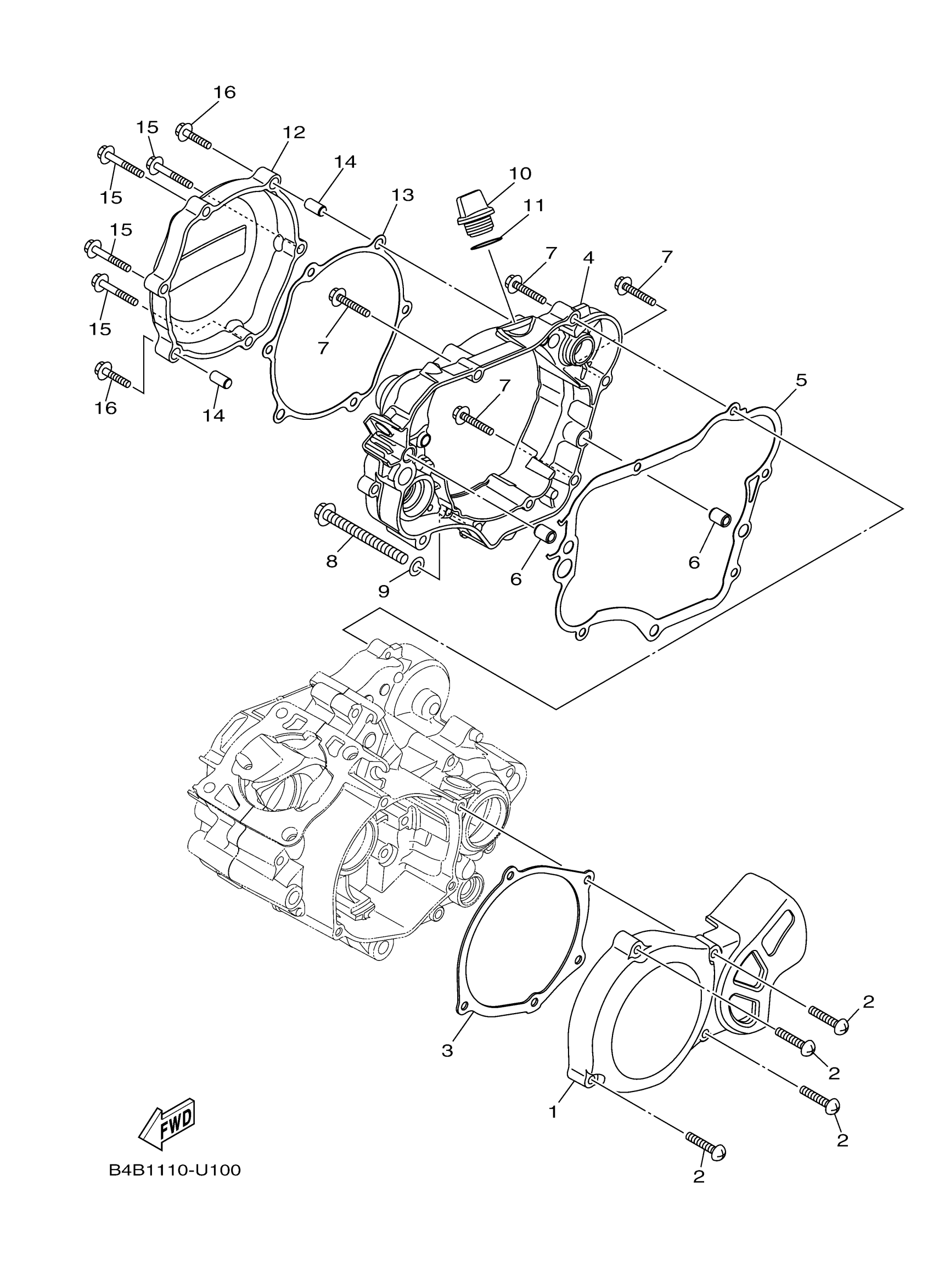

Yamaha YZ85LWR (YZ85 LW) B0GK 2024 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE 1

4ES-15411-02-00

$12.08

2

SCREW, PAN HEAD

98502-06030-00

$1.16

3

GASKET, CRANKCASE COVER 1

5PA-15451-00-00

$20.42

4

COVER, CRANKCASE 3

BR8-15431-00-00

Unavailable

5

GASKET, CRANKCASE COVER 2

BR8-15461-00-00

$11.25

6

PIN, DOWEL(3VD)

99530-10114-00

$2.13

7

BOLT, FLANGE DEEP RECESS

95E32-06030-00

$0.67

8

BOLT, FLANGE DEEP RECESS

95E32-08080-00

$2.41

9

GASKET

90430-08119-00

Unavailable

10

PLUG, OIL

3Y1-15363-10-00

$15.94

11

O-RING (646)

93210-19123-00

Unavailable

12

COVER, 1

5PA-15415-11-00

Unavailable

13

GASKET, CARBURETOR COVER 2

5PA-15463-00-00

$10.40

14

PIN, DOWEL(3XW)

91808-16023-00

$5.26

15

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.47

16

BOLT, FLANGE DEEP RECESS

95E32-06035-00

Unavailable
