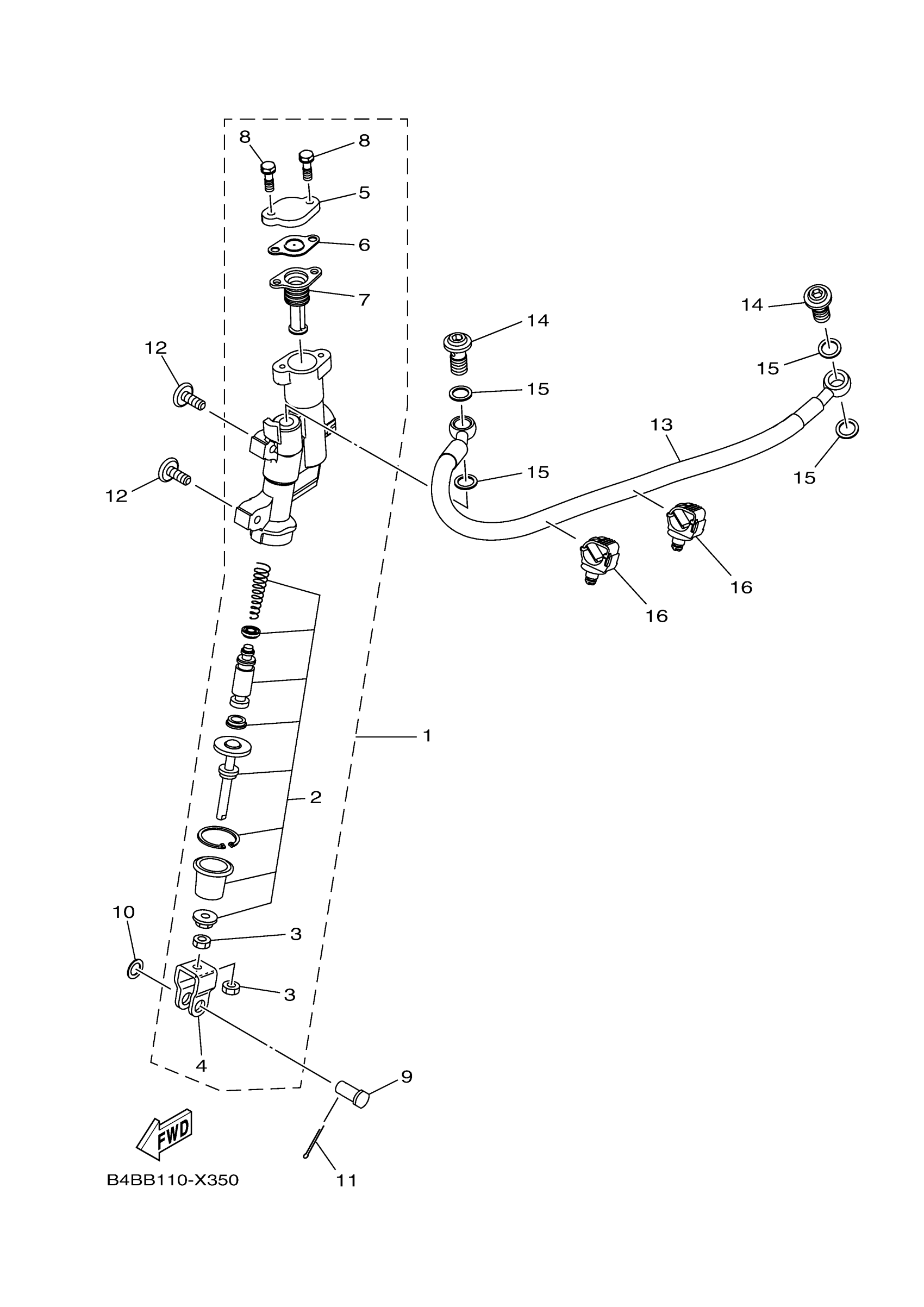

Yamaha YZ85LWP (YZ85 LW) B0GF 2023 REAR MASTER CYLINDER Diagram

Description

Price

RR. MASTER CYLINDER ASSY.

BR8-2583V-00-00

$135.99

CYLINDER KIT, MASTER

BR8-25808-00-00

$60.99

NUT, HEXAGON SMALL

95317-08700-00

$9.49

JOINT

2YK-27222-00-00

$21.99

CAP, RESERVOIR

5UN-25852-50-00

$17.49

PLATE, DIAPHRAGM

5UN-2585B-00-00

$7.99

DIAPHRAGM, RESERVOIR

5UN-25854-00-00

$14.49

BOLT

5UN-27217-00-00

$5.49

PIN, CLEVIS(2YK)

90240-08124-00

$7.49

WASHER, PLATE 1562722600

90201-08083-00

$9.49

PIN, COTTER

91490-16020-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-06116-00

$7.49

HOSE, BRAKE 2

B0G-25873-10-00

$84.99

BOLT, UNION

90401-10172-00

$5.60

GASKET

90430-10005-00

$9.49

CLAMP

90464-12018-00

Unavailable
