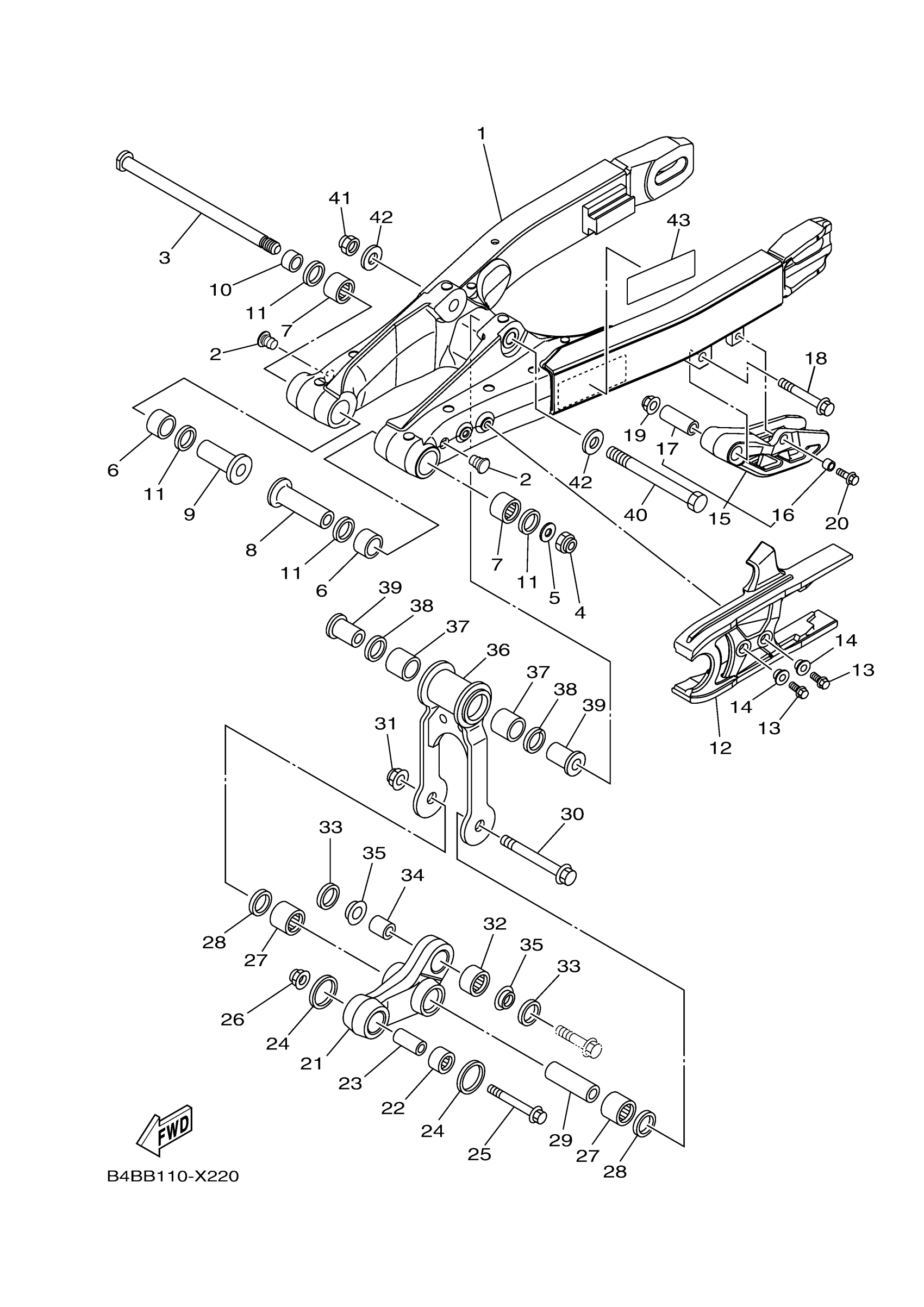

Yamaha YZ85LWP (YZ85 LW) B0GF 2023 REAR ARM Diagram
#
12
SEAL, GUARD
B4B-22151-00-00
Unavailable
14
COLLAR
90387-06180-00
Unavailable
16
COLLAR
90387-06207-00
Unavailable
17
COLLAR
90387-09002-00
Unavailable
18
BOLT, FLANGE DEEP RECESS
95E32-08055-00
Unavailable
19
NUT, SELF-LOCKING
95602-08200-00
Unavailable
20
BOLT, FLANGE DEEP RECESS
95D02-06016-00
Unavailable
21
ARM, RELAY
B4B-2217A-00-00
Unavailable
22
BEARING
93315-31759-00
Unavailable
23
COLLAR
90387-10116-00
Unavailable
25
BOLT, WASHER BASED(3FV)
90105-10582-00
Unavailable
26
NUT, S/L FLANGE
95602-10200-00
Unavailable
27
BEARING, CYLINDRICAL(3YL)
93317-31771-00
Unavailable
28
OIL SEAL (17X25X4-401)
93101-17062-00
Unavailable
29
BUSH, SOLID(4ES)
90380-12219-00
Unavailable
30
BOLT
90109-12015-00
Unavailable
31
NUT, SELF-LOCKING
95602-12200-00
Unavailable
32
BEARING
5PA-22176-00-00
Unavailable
33
SEAL, DUST
5PA-22475-00-00
Unavailable
34
BUSH
5PA-22184-00-00
Unavailable
35
COLLAR, DISTANCE
5PA-22253-00-00
Unavailable
36
ROD, CONNECTING 1
4ES-2217F-00-00
Unavailable
37
BEARING, CYLINDRICAL(3YL)
93317-31771-00
Unavailable
38
OIL SEAL (17X25X4-401)
93101-17062-00
Unavailable
39
BUSH, SOLID(4ES)
90381-12091-00
Unavailable
40
BOLT(4ES)
90101-12755-00
Unavailable
41
NUT, SELF-LOCKING
90185-12011-00
Unavailable
42
WASHER, PLATE
90201-12049-00
Unavailable
43
LABEL, TIRE
3RV-21668-A1-00
Unavailable
