Description

Price

1

WHEEL RIM ASSY

B0G-25102-00-00

$350.99

2

HUB, FRONT

4ES-25111-01-00

$175.99

3

COLLAR (26H)

90387-124H0-00

$16.99

4

BEARING(3WF)

93306-20119-00

$33.99

5

OIL SEAL (22X32X5-818)

93102-22087-00

$12.49

6

DISC, BRAKE (LEFT)

B4B-2582T-00-00

$124.99

7

RIM (1.40-19)

94414-19013-00

$265.99

8

SPOKE SET, FRONT

4LB-25104-00-00

Unavailable

9

SPACER, BEAD

1T1-25194-00-00

Unavailable

10

SCREW, COUNTERSUNK

90151-06080-00

$2.18

11

TIRE (70/100-19 42M MX3SF)

94107-19024-00

Unavailable

12

TUBE (70/100-19M/C TR4)

94207-19290-00

Unavailable

13

BAND, RIM(18-19)

94307-19170-00

$3.71

14

AXLE, WHEEL

4ES-25181-00-00

$48.99

15

NUT, SELF-LOCKING

90185-12010-00

$8.49

16

WASHER, PLATE

90201-12055-00

Unavailable

17

COLLAR, WHEEL

BR8-25183-00-00

Unavailable

18

WRENCH, HEXAGON

1RH-28166-00-00

Unavailable

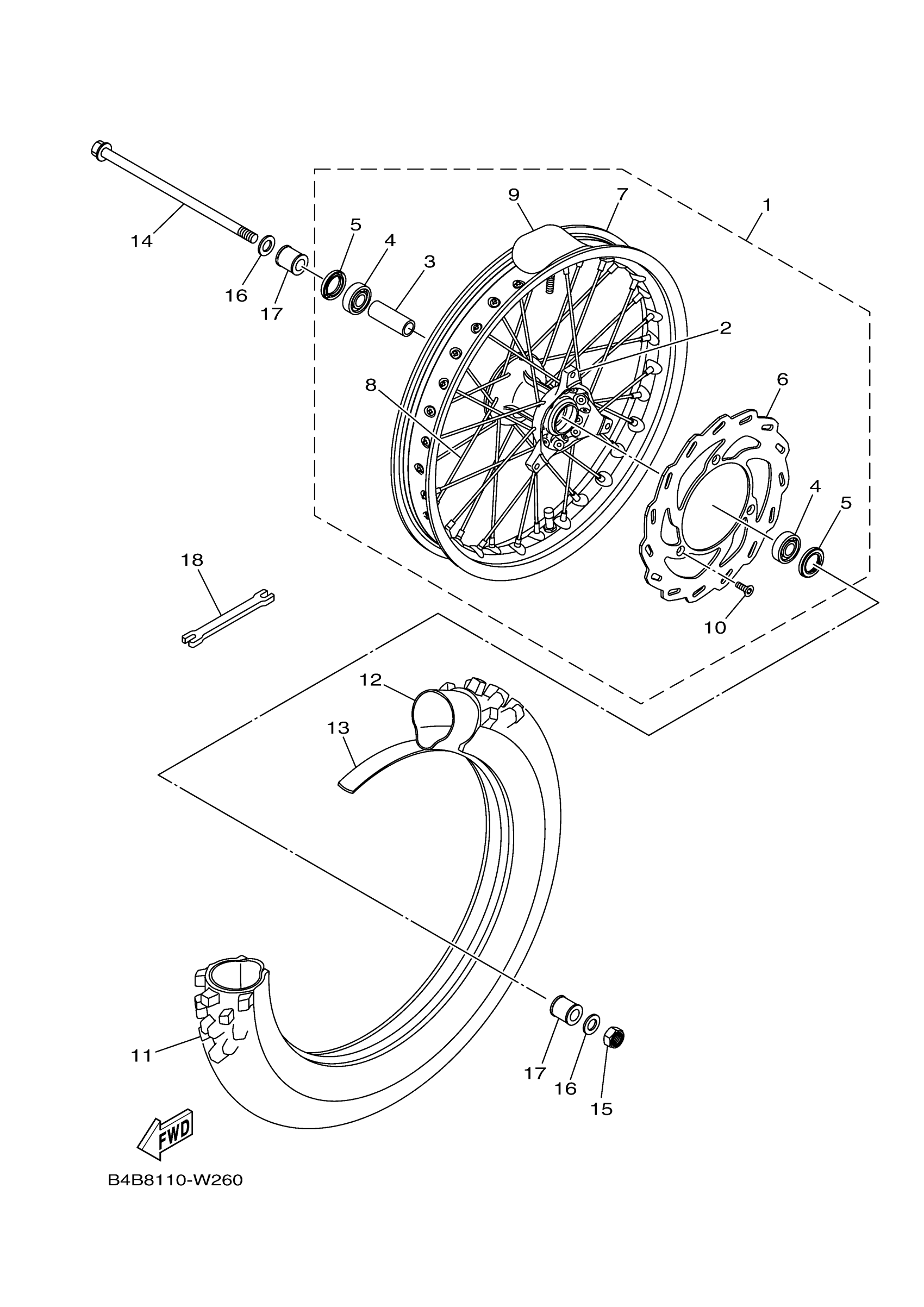

Yamaha YZ85LWP (YZ85 LW) B0GF 2023 FRONT WHEEL Diagram

WHEEL RIM ASSY

HUB, FRONT

COLLAR (26H)

BEARING(3WF)

OIL SEAL (22X32X5-818)

DISC, BRAKE (LEFT)

RIM (1.40-19)

SPOKE SET, FRONT

SPACER, BEAD

SCREW, COUNTERSUNK

TIRE (70/100-19 42M MX3SF)

TUBE (70/100-19M/C TR4)

BAND, RIM(18-19)

AXLE, WHEEL

NUT, SELF-LOCKING

WASHER, PLATE

COLLAR, WHEEL

WRENCH, HEXAGON
