Description

Price

1

FRONT FENDER COMP.

B4B-21510-00-00

Unavailable

2

BOLT, FLANGE

90105-06210-00

$10.49

3

BOLT, FLANGE

90105-06127-00

$8.49

4

WASHER, PLATE

90201-06077-00

$5.60

5

REAR FENDER COMP.

B4B-21610-10-00

$39.99

6

DAMPER 2

B4B-21639-00-00

$2.44

7

WASHER, PLATE

90201-06032-00

$8.49

8

BOLT, FLANGE

90105-06100-00

$7.49

9

BOLT, WITH WASHER

90119-06268-00

$2.28

10

GUARD, FLAP

4ES-21642-01-00

$37.99

11

SCREW, TAPPING

97702-60016-00

$2.19

12

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

13

LABEL, CAUTION

3XJ-2415E-A2-00

$2.18

14

PLATE, COMPETITION USA

17D-2812P-00-00

$7.99

15

COLLAR

90387-06259-00

$8.49

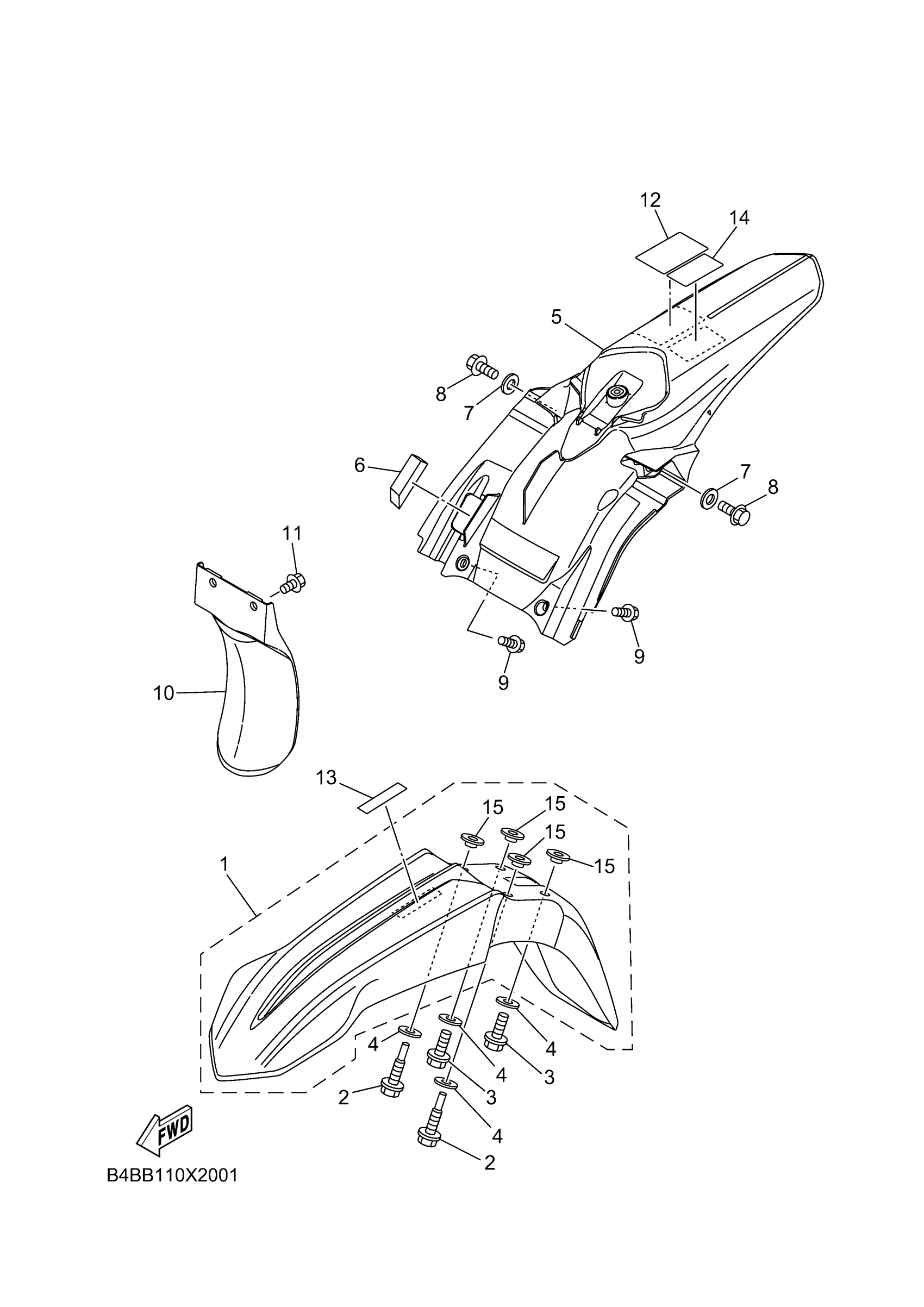

Yamaha YZ85LWP (YZ85 LW) B0GF 2023 FENDER Diagram

FRONT FENDER COMP.

BOLT, FLANGE

BOLT, FLANGE

WASHER, PLATE

REAR FENDER COMP.

DAMPER 2

WASHER, PLATE

BOLT, FLANGE

BOLT, WITH WASHER

GUARD, FLAP

SCREW, TAPPING

LABEL, CAUTION

LABEL, CAUTION

PLATE, COMPETITION USA

COLLAR
