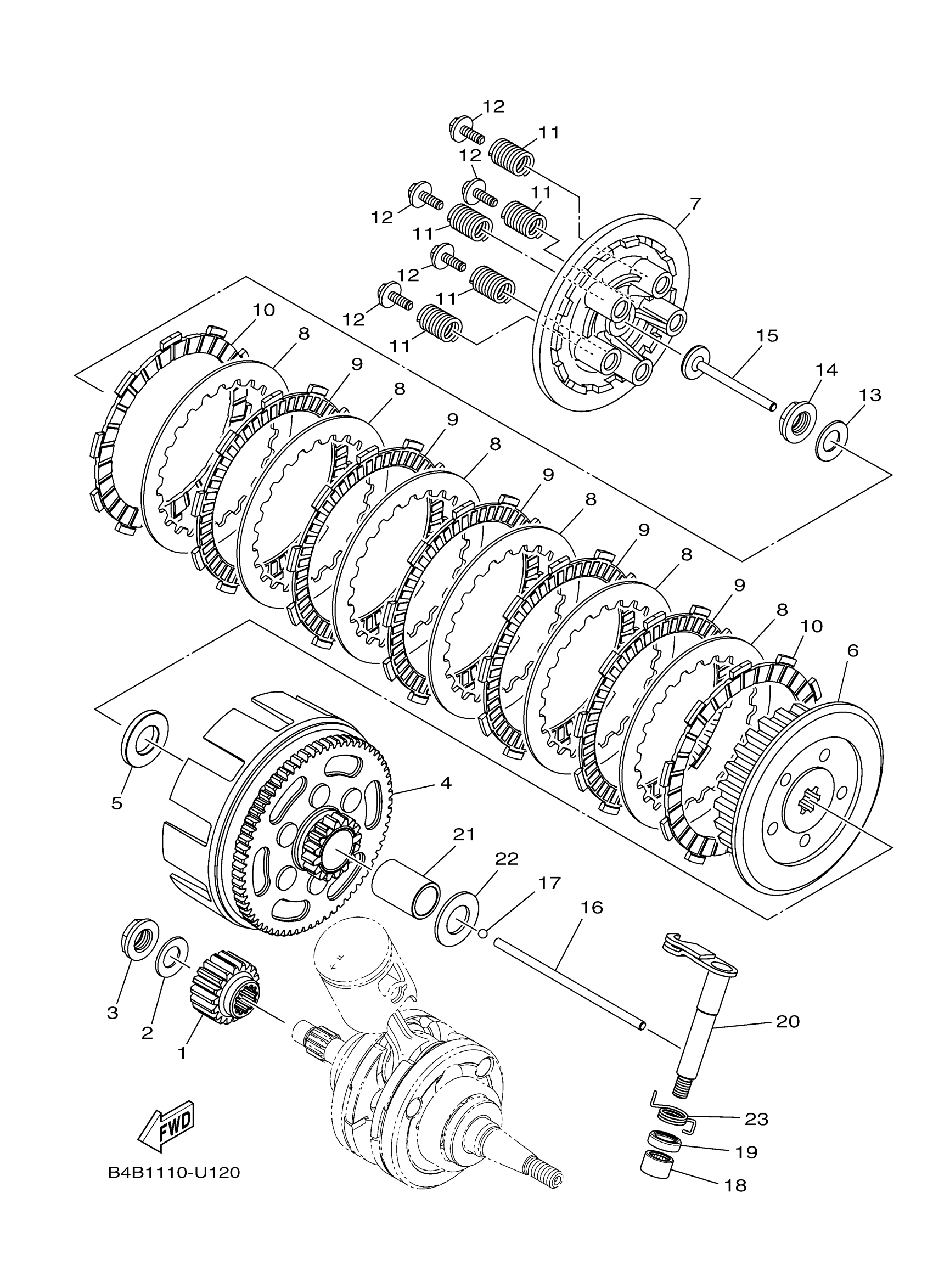

Yamaha YZ85LWP (YZ85 LW) B0GF 2023 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

BR8-16111-00-00

Unavailable

2

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

3

NUT

90179-12007-00

$7.49

4

PRIMARY DRIVEN GEA

5PA-16150-12-00

$294.99

5

WASHER, PLATE (1N1)

90201-17558-00

$9.49

6

BOSS, CLUTCH

5PA-16371-10-00

$100.99

7

PLATE, PRESSURE 1

2TK-16351-00-00

$41.99

8

PLATE, CLUTCH 1

131-16324-10-00

$20.99

9

PLATE, FRICTION

4ES-16321-00-00

$18.49

10

PLATE, FRICTION

3XP-16321-00-00

$19.99

11

SPRING, COMPRESSION(58T)

90501-204A0-00

$8.49

12

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$8.49

13

WASHER, CONICAL SPRING

90208-14033-00

$3.55

14

NUT(22F)

90179-14469-00

Unavailable

15

ROD, PUSH 1

4ES-16356-00-00

$28.99

16

ROD, PUSH 2

5PA-16357-00-00

Unavailable

17

BALL

93503-16003-00

Unavailable

18

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

Unavailable

19

OIL SEAL (4G0)

93102-12224-00

Unavailable

20

PUSH LEVER COMP.

4ES-16381-00-00

Unavailable

21

SPACER 1

5PA-16181-00-00

Unavailable

22

WASHER, PLATE (24X)

90201-171G6-00

Unavailable

23

SPRING, TORSION

90508-14016-00

Unavailable
