Description

Price

1

BEARING(4ES)

93332-00079-00

$69.99

2

WASHER, PLATE(1FK)

90201-256K5-00

$14.99

3

COVER, BALL RACE 1

1J7-23415-00-00

$6.99

4

NUT

90179-25004-00

$24.99

5

CROWN, HANDLE

BR8-23435-00-00

Unavailable

6

WASHER, PLATE

90201-22018-00

$5.60

7

NUT

90179-22025-00

$20.99

8

BOLT, FLANGE DEEP RECESS

95E32-08040-00

$0.85

9

HOLDER, HANDLE UPPER

B2W-23441-00-00

$31.99

10

HOLDER, HANDLE LOWER

BR9-23442-00-00

$38.99

11

WASHER, PLATE

90201-10045-00

$8.49

12

NUT, S/L FLANGE

95602-10200-00

$4.82

13

COLLAR

B4B-23113-00-00

$14.99

14

BOLT, FLANGE DEEP RECESS

95E34-08030-00

$1.75

15

PLATE, NUMBER

1SN-23485-10-00

$27.99

16

BOLT, FLANGE

90105-06064-00

Unavailable

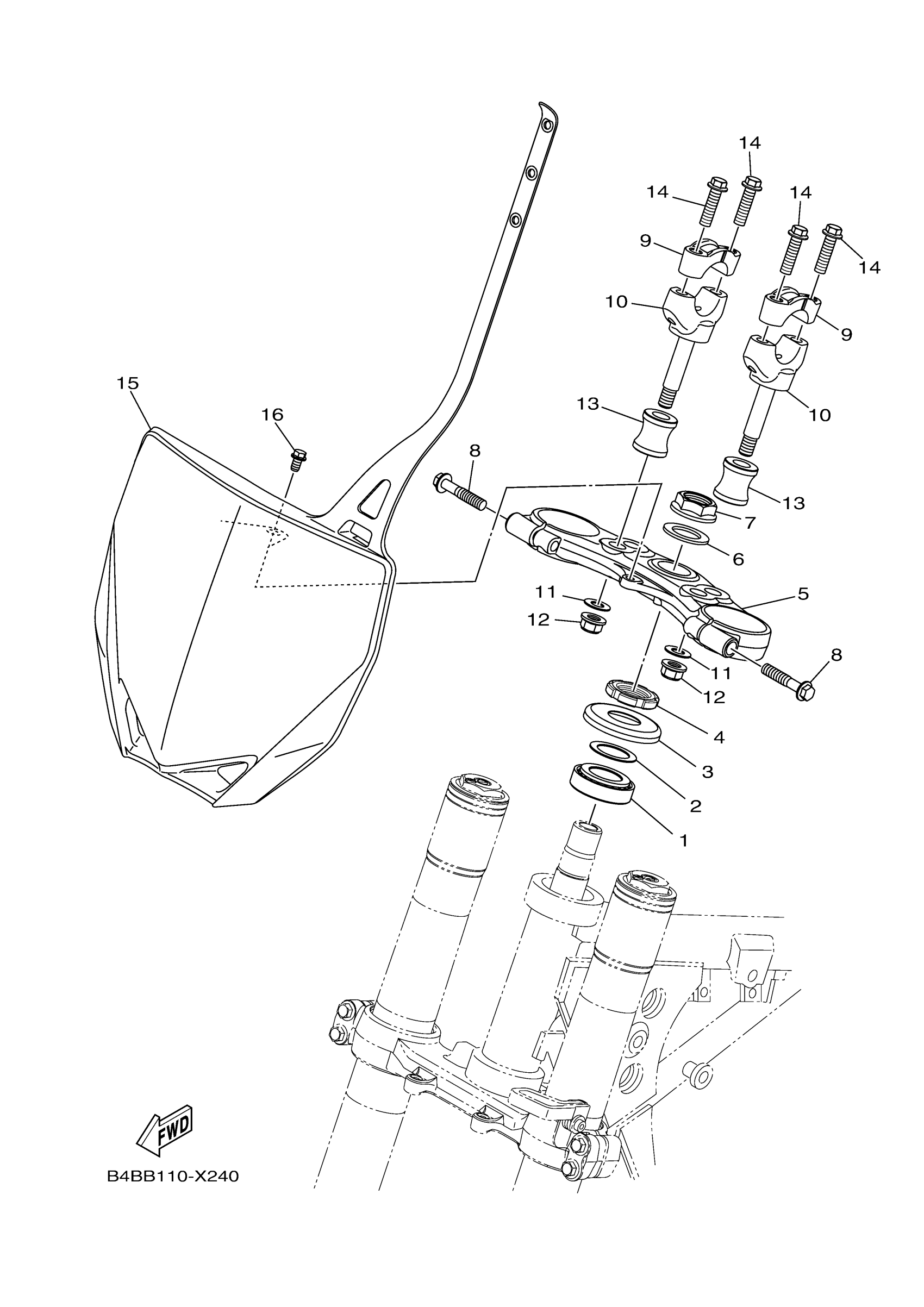

Yamaha YZ85LWN (YZ85 LW) B0GA 2022 STEERING Diagram

BEARING(4ES)

WASHER, PLATE(1FK)

COVER, BALL RACE 1

NUT

CROWN, HANDLE

WASHER, PLATE

NUT

BOLT, FLANGE DEEP RECESS

HOLDER, HANDLE UPPER

HOLDER, HANDLE LOWER

WASHER, PLATE

NUT, S/L FLANGE

COLLAR

BOLT, FLANGE DEEP RECESS

PLATE, NUMBER

BOLT, FLANGE
