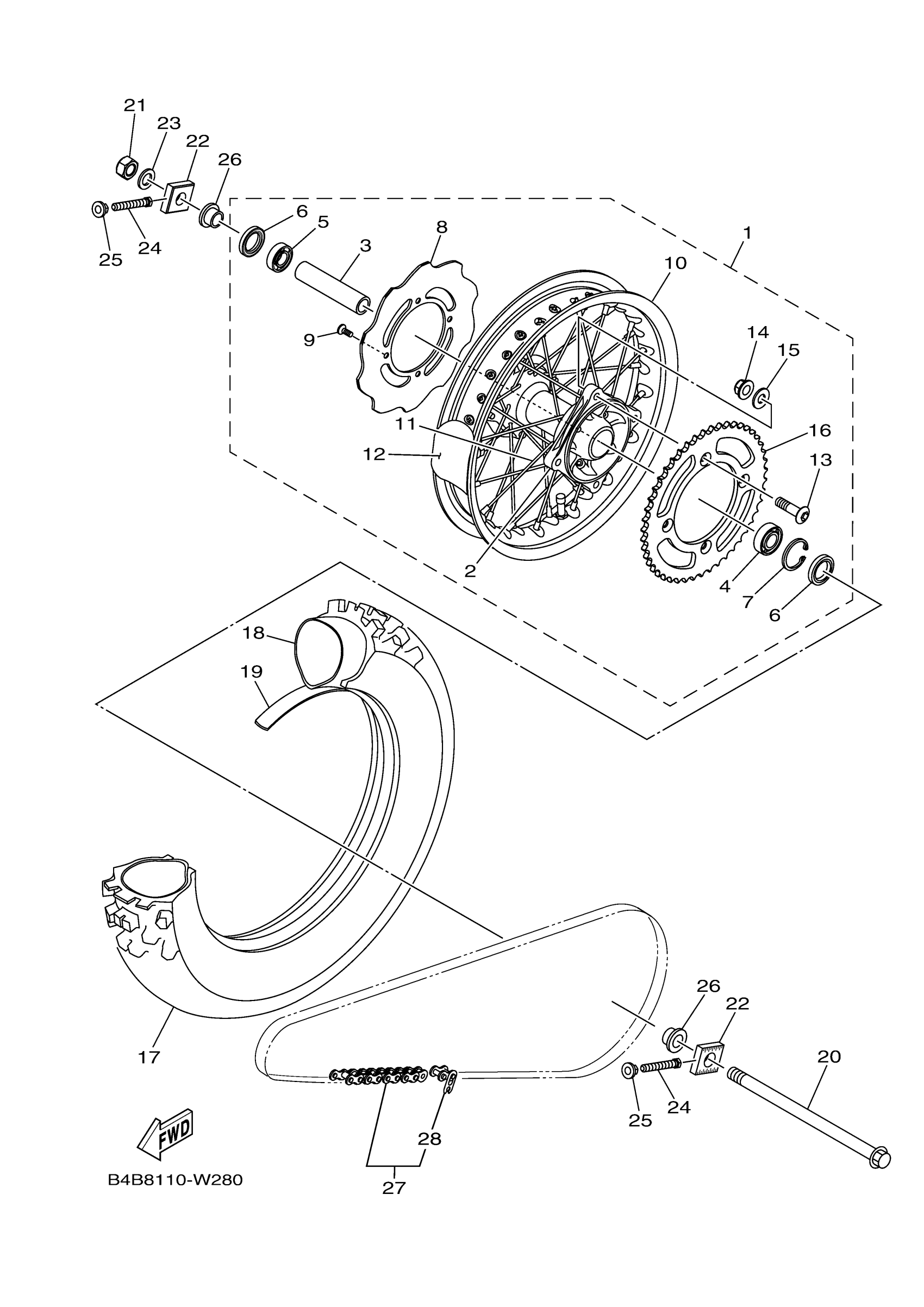

Yamaha YZ85LWN (YZ85 LW) B0GA 2022 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL SUB-ASSY

B0G-25302-00-00

$403.99

2

HUB, REAR

4ES-25311-00-00

$302.99

3

COLLAR, WHEEL

4ES-25383-00-00

$27.99

4

BRG,R-B 6002RS 32MM 30G KY

93306-00201-00

$37.99

5

BEARING

93306-20203-00

$24.99

6

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

7

CIRCLIP(47Y)

99009-35500-00

$8.49

8

DISK, REAR BRAKE 2

B4B-2582W-01-00

$103.99

9

SCREW, COUNTERSUNK

90151-06079-00

$3.23

10

RIM (1.85-16)

94418-16006-00

Unavailable

11

SPOKE SET, REAR

4LB-25304-00-00

$79.99

12

SPACER, BEAD

1T2-25394-00-00

Unavailable

13

SCREW, COUNTERSUNK

90152-08001-00

$3.55

14

NUT, SELF-LOCKING

90185-08008-00

$7.49

15

WASHER, PLATE

90201-08043-00

$7.49

16

SPROCKET, DRIVEN (51T)

5PA-25451-00-00

Unavailable

16

SPROCKET, DRIVEN (52T)

5PA-25452-00-00

Unavailable

16

SPROCKET, DRIVEN (53T)

5PA-25453-00-00

Unavailable

17

TIRE (90/100-16 52M MX3S)

94109-16024-00

Unavailable

18

TUBE (90/100-16M/C TR4)

94209-16291-00

Unavailable

19

BAND, RIM

94330-16058-00

Unavailable

20

AXLE, WHEEL

B4B-25381-00-00

Unavailable

21

NUT, SELF-LOCKING

90185-14009-00

Unavailable

22

PULLER, CHAIN 2

BR8-25389-00-00

Unavailable

23

WASHER, PLAIN (434)

90201-14411-00

Unavailable

24

BOLT

90101-08006-00

Unavailable

25

NUT

90179-08029-00

Unavailable

26

COLLAR, WHEEL

BR8-25383-00-00

Unavailable

27

CHAIN (DID 428DS 1

9Y582-43123-00

Unavailable

28

JOINT, CHAIN

94682-43001-00

Unavailable
