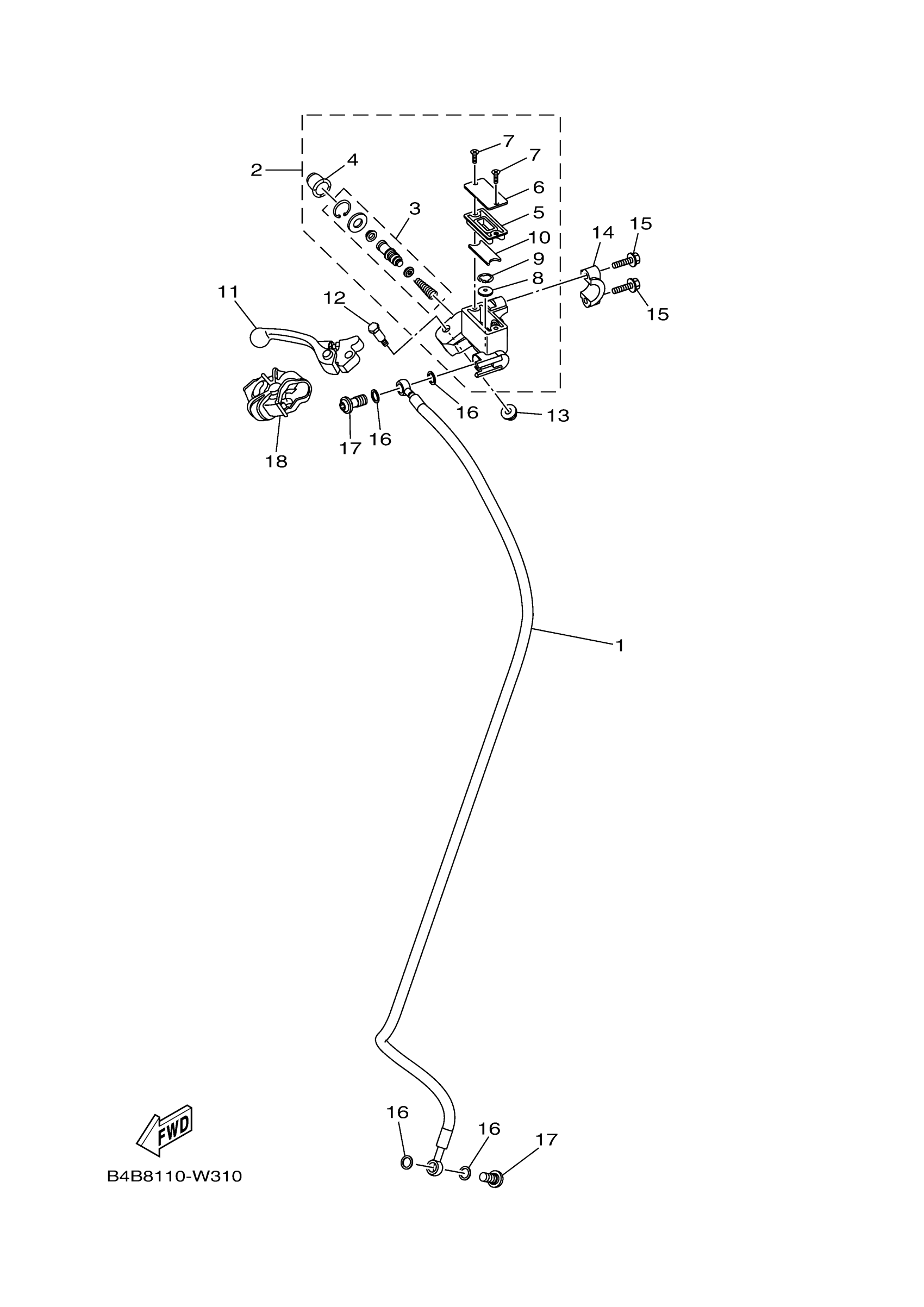

Yamaha YZ85LWN (YZ85 LW) B0GA 2022 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, BRAKE 1

B0G-25872-00-00

Unavailable

2

MASTER CYLINDER SUB ASSY

5XE-W2587-01-00

$152.75

3

CYLINDER KIT, MASTER

5NY-W0041-01-00

$46.93

4

BOOT, MASTER CYLINDER

5NY-25868-01-00

Unavailable

5

DIAPHRAGM, RESERVOIR

5XE-25854-00-00

$12.32

6

CAP, RESERVOIR

5MV-25852-01-00

$10.02

7

SCREW, FLAT

98707-04012-00

$1.34

8

SEPARATOR ASSY

5CG-25715-00-00

$9.87

9

CIRCLIP

5CG-2585G-00-00

$4.70

10

FLOAT, RESERVOIR

5XE-25853-00-00

$5.99

11

LEVER 2

5MV-83922-00-00

$37.00

12

BOLT, LEVER

5MV-2589F-00-00

$5.03

13

NUT, FLANGE(7NB)

95780-06500-00

$1.88

14

BRACKET, MASTER CYLINDER

5MV-25867-00-00

$16.55

15

BOLT, FITTING

5MV-25833-00-00

$5.37

16

GASKET

90430-10005-00

Unavailable

17

BOLT, UNION

90401-10172-00

Unavailable

18

COVER, HANDLE LEVER 1

5NY-26372-00-00

Unavailable
