FRONT FORK

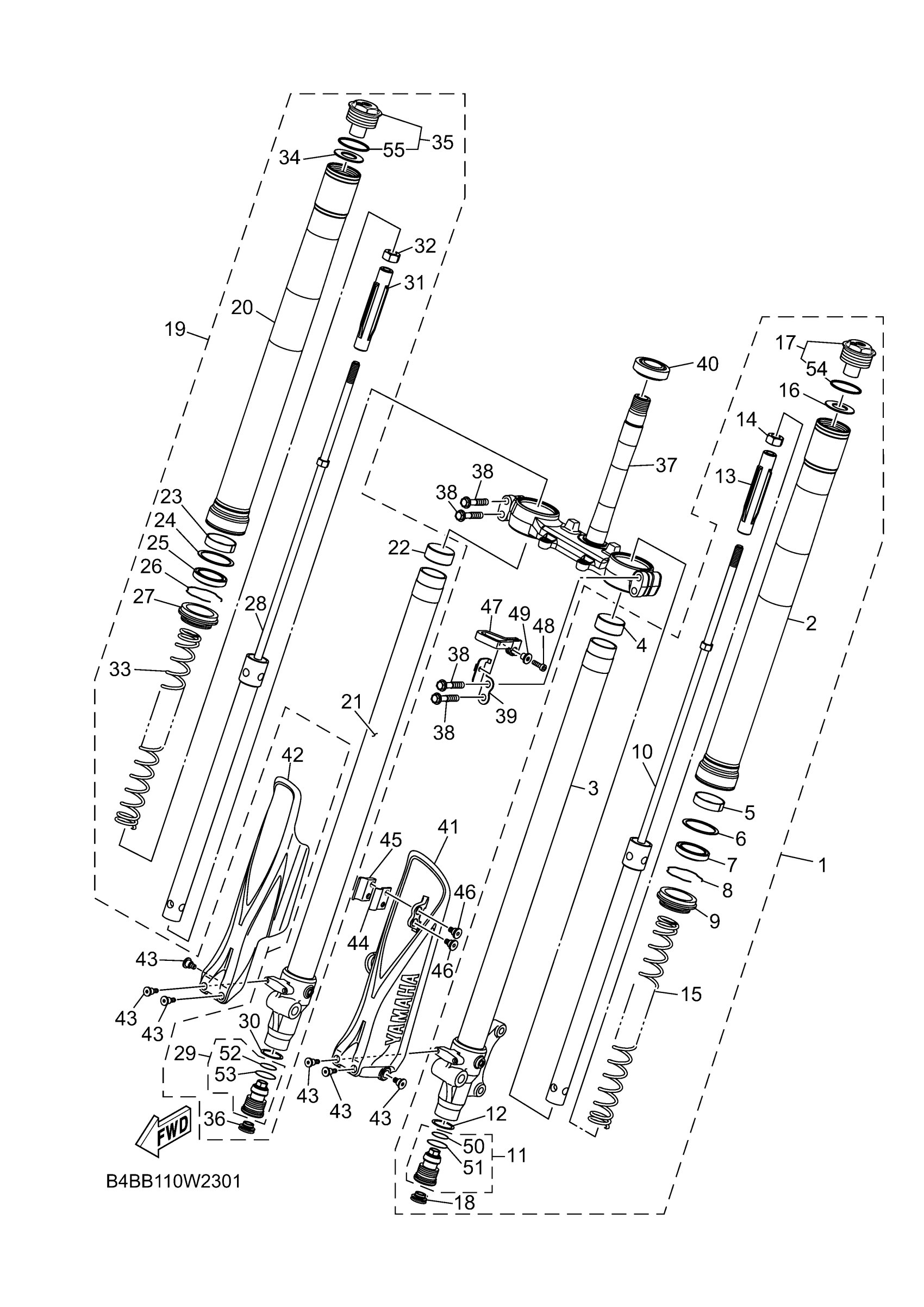

Yamaha YZ85LWN (YZ85 LW) B0GA 2022 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L
B0G-23102-00-00
Unavailable
3
INNER TUBE COMP.2
B4B-23120-00-00
Unavailable
10
CYLINDER COMP., FRONT FORK
B4B-23170-00-00
Unavailable
11
VALVE COMP.
B0G-2316A-00-00
Unavailable
13
SEAT, SPRING UPPER
B4B-23142-00-00
Unavailable
15
SPRING, FRONT FORK
4LB-23141-10-00
Unavailable
16
WASHER, SPRING UPPER
5PA-23149-00-00
Unavailable
17
BOLT, CAP
BR8-23111-00-00
Unavailable
18
PLUG
3JD-2312G-L0-00
Unavailable
19
FRONT FORK ASSY (R
B0G-23103-00-00
Unavailable
21
INNER TUBE COMP.1
B4B-23110-00-00
Unavailable
28
CYLINDER COMP., FRONT FORK
B4B-23170-00-00
Unavailable
29
VALVE COMP.
B0G-2316A-00-00
Unavailable
31
SEAT, SPRING UPPER
B4B-23142-00-00
Unavailable
33
SPRING, FRONT FORK
4LB-23141-10-00
Unavailable
34
WASHER, SPRING UPPER
5PA-23149-00-00
Unavailable
35
BOLT, CAP
BR8-23111-00-00
Unavailable
36
PLUG
3JD-2312G-L0-00
Unavailable
37
UNDER BRACKET COMP.
BR8-23340-00-00
Unavailable
38
BOLT 1
5PA-23346-00-00
Unavailable
39
GUIDE, CABLE
BR8-2331E-00-00
Unavailable
40
BEARING(4ES)
93332-00079-00
Unavailable
41
PROTECTOR 1
B4B-2315H-10-00
Unavailable
42
PROTECTOR 2
B4B-2315J-10-00
Unavailable
43
BOLT
90109-06232-00
Unavailable
44
CLAMP
17D-23466-00-00
Unavailable
45
CLAMP
17D-23467-00-00
Unavailable
46
BOLT
90109-06232-00
Unavailable
47
GUIDE, CABLE
5TJ-23389-80-00
Unavailable
48
BOLT, SOCKET
91317-05016-00
Unavailable
49
COLLAR
90387-05065-00
Unavailable
50
O-RING
4DA-23147-L1-00
Unavailable
51
GASKET
276-23114-02-00
Unavailable
52
O-RING
4DA-23147-L1-00
Unavailable
53
GASKET
276-23114-02-00
Unavailable
54
O-RING
4V4-23188-L1-00
Unavailable
55
O-RING
4V4-23188-L1-00
Unavailable
