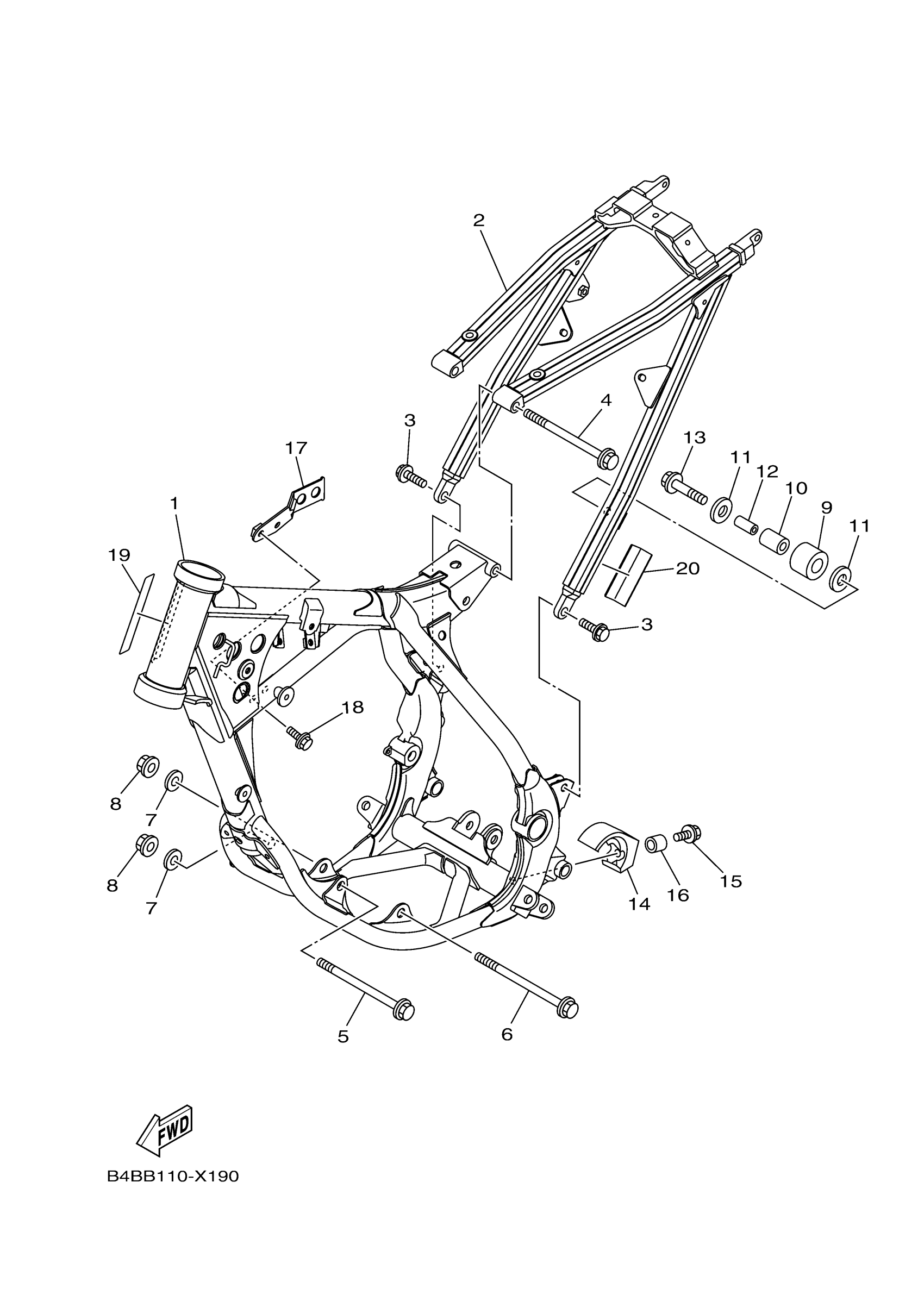

Yamaha YZ85LWN (YZ85 LW) B0GA 2022 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

B4B-21101-00-00

Unavailable

2

REAR FRAME COMP.

B4B-21190-00-00

$592.99

3

BOLT, WASHER BASED(36Y)

90105-08307-00

$9.49

4

BOLT, FLANGE

90105-08097-00

$4.67

5

BOLT, FLANGE

90105-10220-00

$10.49

6

BOLT, FLANGE

90105-10174-00

$11.49

7

WASHER, PLATE

90201-10045-00

$8.49

8

NUT

90179-10024-00

$10.49

9

TENSIONER

30X-22178-00-00

$35.99

10

BUSH

4V4-22184-00-00

$4.47

11

WASHER, PLATE

90201-08045-00

$5.60

12

COLLAR

90387-08041-00

$8.49

13

BOLT, FLANGE DEEP RECESS

95E32-08040-00

$0.85

14

TENSIONER

4ES-22178-01-00

$4.47

15

BOLT, WITH WASHER

90119-06200-00

Unavailable

16

COLLAR(J45)

90387-064T3-00

Unavailable

17

BRACKET, C.D.I. UNIT

5PA-21274-10-00

Unavailable

18

BOLT, FLANGE DEEP RECESS

95E32-06012-00

Unavailable

19

PROTECTOR, FUEL TANK

3HA-24141-00-00

Unavailable

20

COVER ASSY 1

B4B-2110M-00-00

Unavailable
