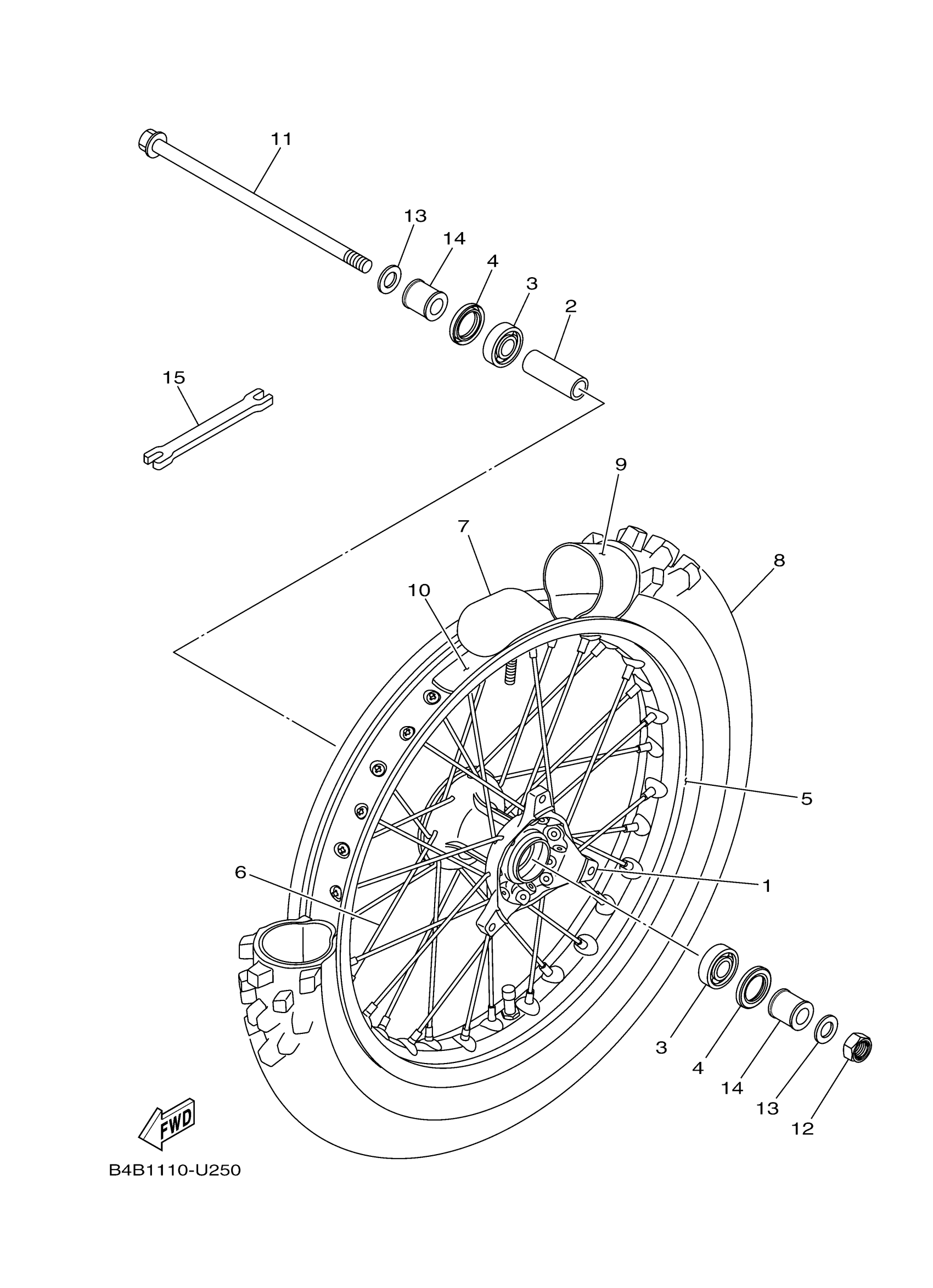

Yamaha YZ85L (YZ85) B4B4 2020 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

4ES-25111-01-00

$175.99

2

COLLAR (26H)

90387-124H0-00

$16.99

3

BEARING(3WF)

93306-20119-00

$33.99

4

OIL SEAL (22X32X5-818)

93102-22087-00

$12.49

5

RIM (1.40-17)

94414-17013-00

Unavailable

6

SPOKE SET, FRONT

4ES-25104-20-00

$72.99

7

SPACER, BEAD

1T1-25194-00-00

Unavailable

8

TIRE (70/100-17 40M MX3SF)

94107-17024-00

Unavailable

9

TUBE (70/100-17 TR4)(4ES)

94207-17284-00

$21.99

10

BAND, RIM (22-17)

94307-17166-00

$7.49

11

AXLE, WHEEL

4ES-25181-00-00

$48.99

12

NUT, SELF-LOCKING

90185-12010-00

$8.49

13

WASHER, PLATE

90201-12055-00

$8.49

14

COLLAR, WHEEL

BR8-25183-00-00

$15.99

15

WRENCH, HEXAGON

1RH-28166-00-00

$5.49
