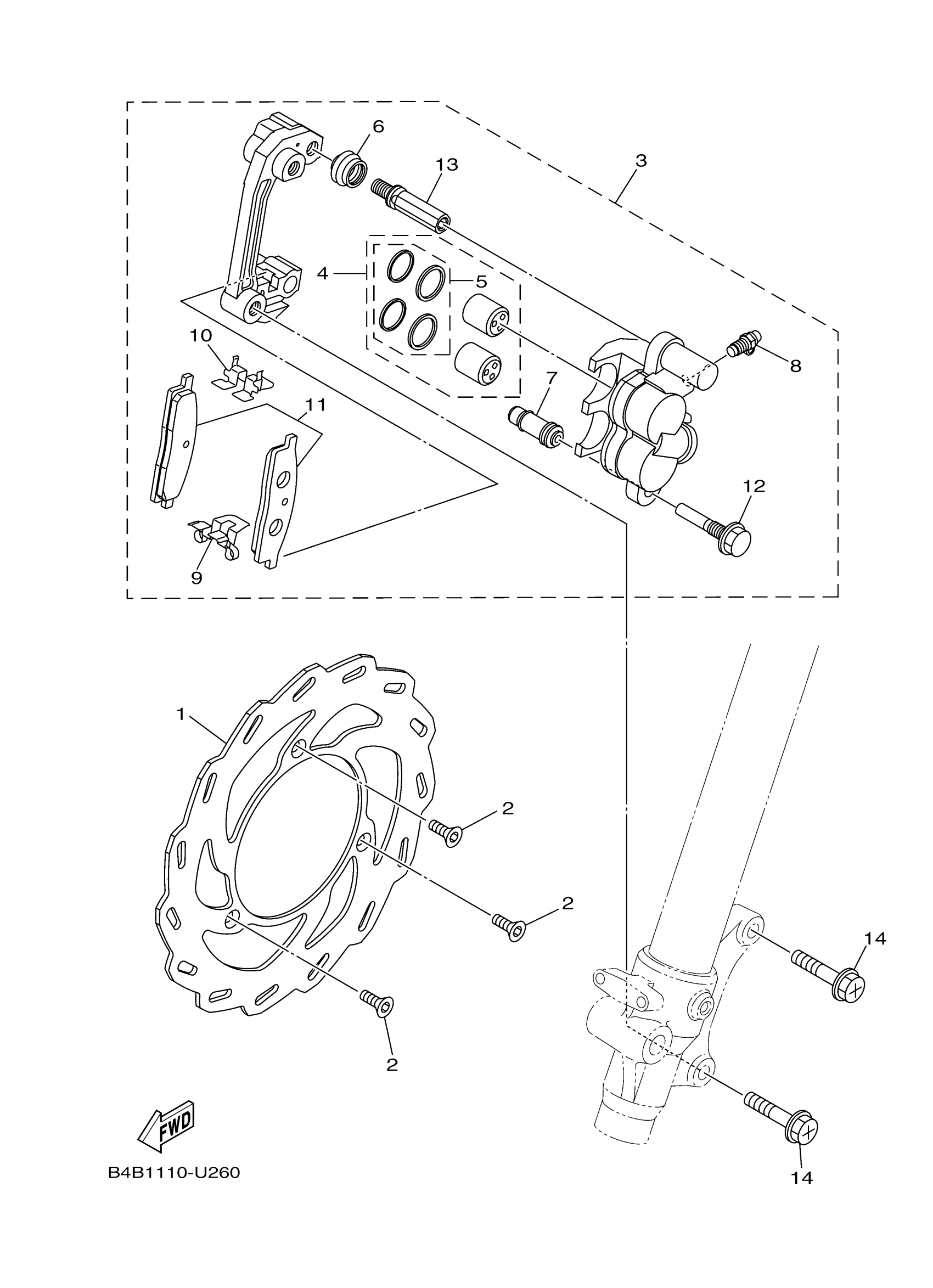

Yamaha YZ85L (YZ85) B4B4 2020 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

B4B-2582T-00-00

$113.47

2

SCREW, COUNTERSUNK

90151-06080-00

$1.21

3

CALIPER ASSY (LEFT)

5PA-2580T-00-00

$449.45

4

PISTON ASSY, CALIPER

4ES-W0057-10-00

$101.27

5

CALIPER SEAL KIT

4ES-25803-10-00

$56.14

6

BOOT 2

5R2-25937-00-00

$30.21

7

BOOT 2

56A-25937-00-00

$18.93

8

BLEED SCREW KIT

15B-W0048-00-00

$16.89

9

SUPPORT, PAD

56A-25919-00-00

$28.89

10

SUPPORT, PAD

56A-25919-10-00

$26.34

11

BRAKE PAD KIT

5PA-W0045-00-00

$47.32

12

BOLT

56A-25926-00-00

$10.95

13

PIN, SLIDE

34X-25914-00-00

$6.38

14

BOLT, FLANGE

90105-08137-00

$3.30
