Description

Price

1

FRONT FENDER COMP.

1SN-21510-00-00

$32.99

2

COLLAR

90387-06259-00

$8.49

3

BOLT, FLANGE

90105-06210-00

$10.49

4

BOLT, FLANGE

90105-06127-00

$8.49

5

WASHER, PLATE

90201-06077-00

$5.60

6

FENDER, REAR

5PA-21611-00-00

$59.99

7

BOLT, WITH WASHER

90119-06133-00

$5.60

8

COLLAR(3XJ)

90387-064X4-00

$7.49

9

COLLAR(4EW)

90387-0701A-00

$9.49

10

NUT, SPRING

90183-060A7-00

$8.49

11

GUARD, FLAP

4ES-21642-01-00

$37.99

12

BOLT, WITH WASHER

90119-06239-00

$3.55

13

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

14

LABEL, CAUTION

3XJ-2415E-A1-00

$4.84

15

PLATE, COMPETITION USA

17D-2812P-00-00

$7.99

16

TUNING FORK MARK

5FK-2175C-31-00

Unavailable

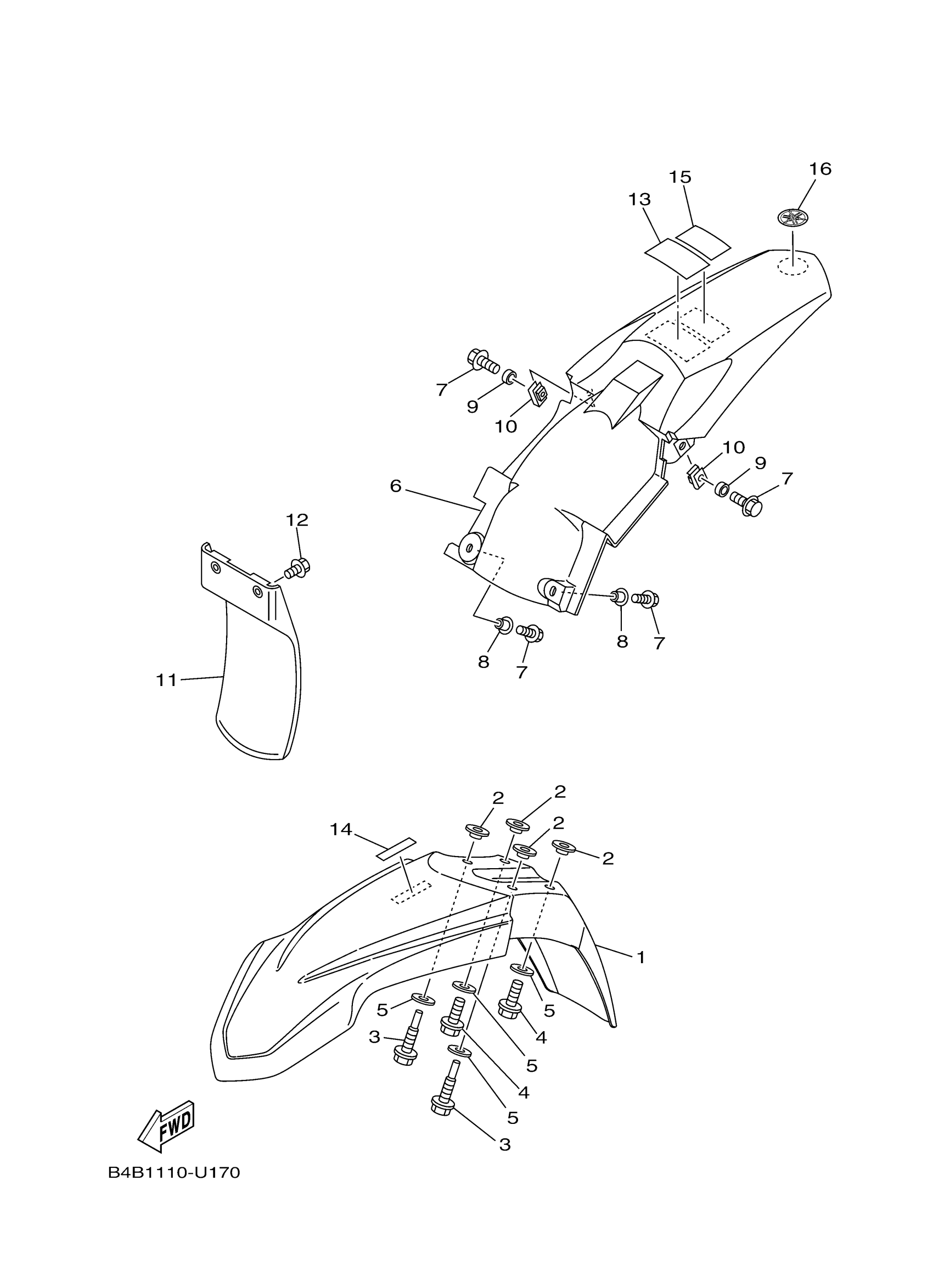

Yamaha YZ85L (YZ85) B4B4 2020 FENDER Diagram

FRONT FENDER COMP.

COLLAR

BOLT, FLANGE

BOLT, FLANGE

WASHER, PLATE

FENDER, REAR

BOLT, WITH WASHER

COLLAR(3XJ)

COLLAR(4EW)

NUT, SPRING

GUARD, FLAP

BOLT, WITH WASHER

LABEL, CAUTION

LABEL, CAUTION

PLATE, COMPETITION USA

TUNING FORK MARK
