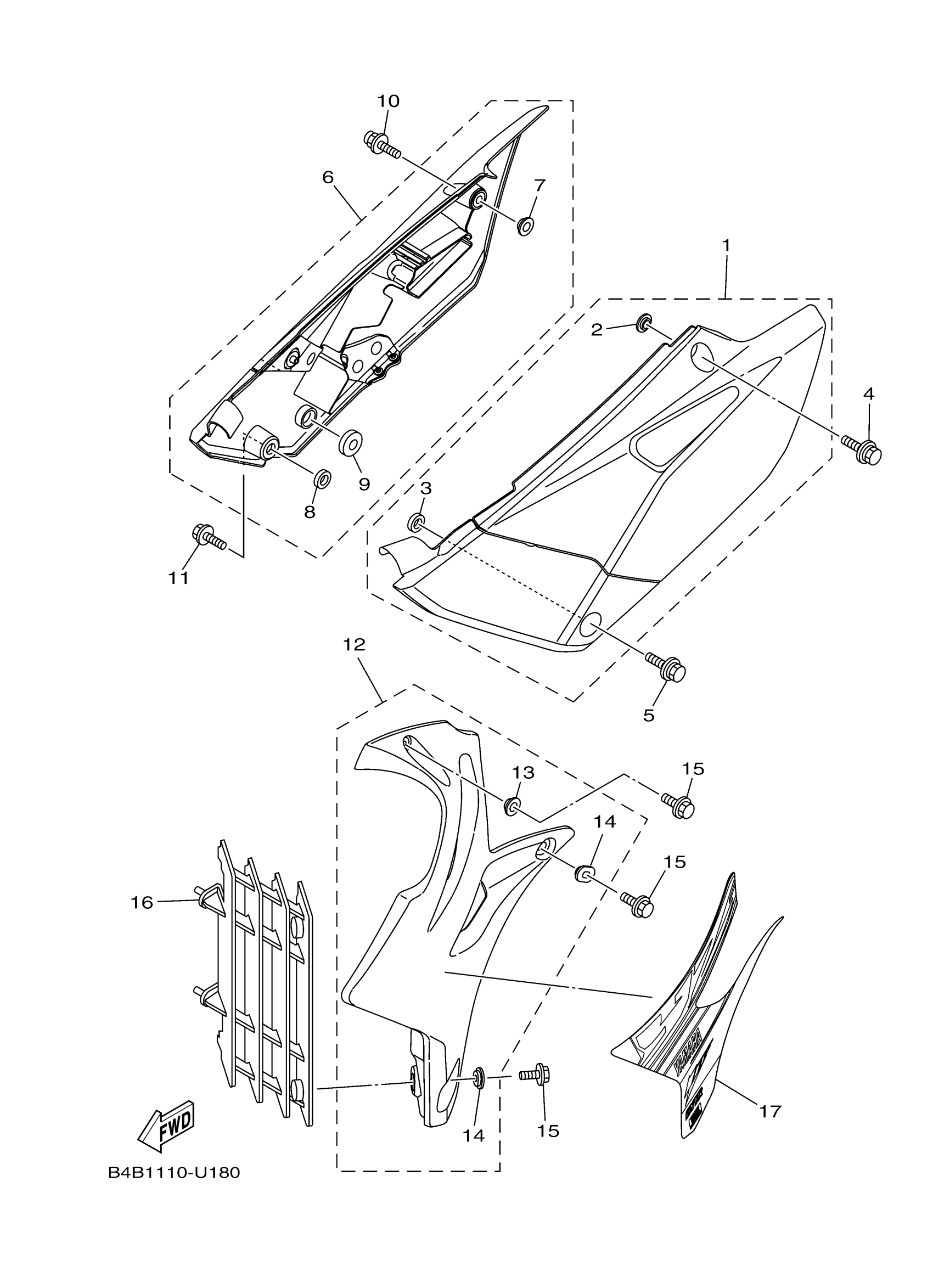

Yamaha YZ85K (YZ85) B4B1 2019 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER ASSY 1

1SN-21710-00-00

$32.99

2

COLLAR

90387-06009-00

$10.49

3

COLLAR

90387-1001B-00

Unavailable

4

BOLT, WITH WASHER

90119-06240-00

$3.55

5

BOLT, WITH WASHER(4ES)

90119-06217-00

$8.49

6

SIDE COVER ASSY 2

1SN-21720-00-00

$69.99

7

COLLAR

90387-06009-00

$10.49

8

COLLAR

90387-1001B-00

Unavailable

9

GROMMET

1SL-21719-00-00

$16.49

10

BOLT, WITH WASHER

90119-06240-00

$3.55

11

BOLT, WITH WASHER(4ES)

90119-06217-00

$8.49

12

SIDE COVER ASSY 3

1SN-21730-00-00

$32.99

13

COLLAR

90387-06009-00

$10.49

14

COLLAR

5PA-21748-00-00

Unavailable

15

BOLT, FLANGE

90105-06064-00

Unavailable

16

PANEL 1

5PH-2172A-11-00

Unavailable

17

GRAPHIC 3

B4B-2174G-00-00

Unavailable
