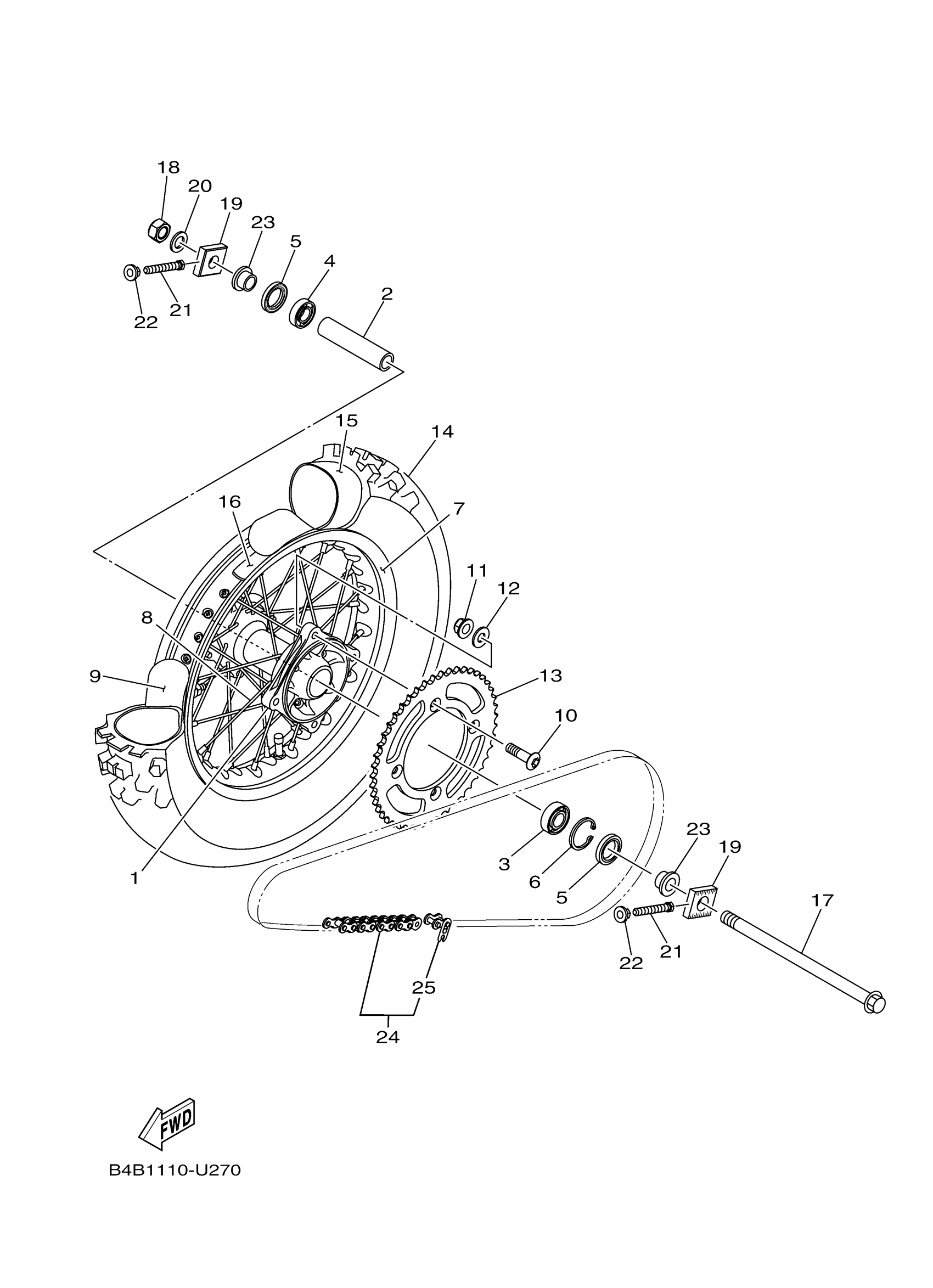

Yamaha YZ85K (YZ85) B4B1 2019 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

4ES-25311-00-00

$302.99

2

COLLAR, WHEEL

4ES-25383-00-00

$27.99

3

BRG,R-B 6002RS 32MM 30G KY

93306-00201-00

$37.99

4

BEARING

93306-20203-00

$24.99

5

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

6

CIRCLIP(47Y)

99009-35500-00

$8.49

7

RIM (1.60-14)

94416-14006-00

Unavailable

8

SPOKE SET, REAR

4ES-25304-20-00

$92.99

9

SPACER, BEAD

5X2-25394-00-00

$39.99

10

SCREW, COUNTERSUNK

90152-08001-00

$3.55

11

NUT, SELF-LOCKING

90185-08008-00

$7.49

12

WASHER, PLATE

90201-08043-00

$7.49

13

SPROCKET, DRIVEN (47T)

4ES-25447-10-00

Unavailable

13

SPROCKET, DRIVEN (46T)

5PA-25446-00-00

$64.99

13

SPROCKET, DRIVEN (48T)

5PA-25448-00-00

Unavailable

13

SPROCKET, DRIVEN (49T)

5PA-25449-00-00

Unavailable

14

TIRE (90/100-14 49M MX3S)

94109-14020-00

Unavailable

15

TUBE (80-90/100-14 TR4)(4ES)

94208-14285-00

Unavailable

16

BAND, RIM (1K8)

94327-14076-00

Unavailable

17

AXLE, WHEEL

BR8-25381-00-00

Unavailable

18

NUT, SELF-LOCKING

90185-14009-00

Unavailable

19

PULLER, CHAIN 2

BR8-25389-00-00

Unavailable

20

WASHER, PLAIN (434)

90201-14411-00

Unavailable

21

BOLT

90101-08006-00

Unavailable

22

NUT

90179-08029-00

Unavailable

23

COLLAR, WHEEL

BR8-25383-00-00

Unavailable

24

CHAIN

9Y582-43117-00

Unavailable

24

GYTR 136L GOLD CHAIN

GYT-0SS56-31-93

Unavailable

25

JOINT, CHAIN

94682-43001-00

Unavailable
