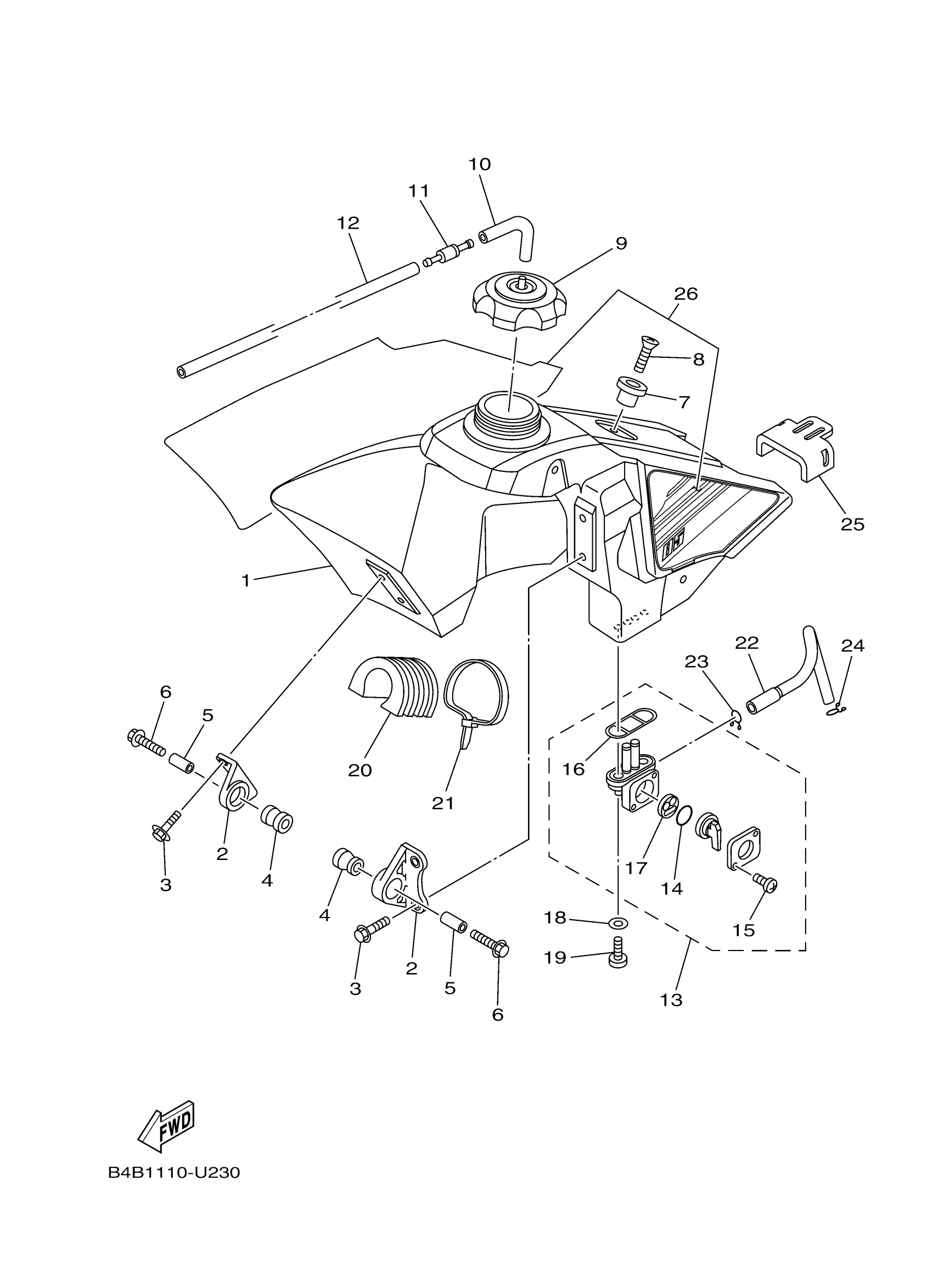

Yamaha YZ85K (YZ85) B4B1 2019 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5PA-24110-30-00

Unavailable

2

HOLDER, DAMPER

5XE-24144-00-00

$23.99

3

BOLT, FLANGE DEEP RECESS

95E32-06016-00

$0.60

4

GROMMET(4AA)

90480-18549-00

$10.49

5

COLLAR 849833160000

90387-06027-00

$8.49

6

BOLT, WITH WASHER

90119-06262-00

$8.49

7

BRACKET, SEAT

4EW-2412F-00-00

$14.49

8

SCREW, FLAT HEAD

98702-06025-00

$8.49

9

CAP ASSY

5NY-24610-10-00

$61.99

10

PIPE 5

5RB-24315-00-00

$7.99

11

PIPE JOINT ASSY

3XJ-24380-00-00

$36.99

12

HOSE (L420)

90445-092K1-00

$12.49

13

FUEL COCK ASSY 1

4DP-24500-10-00

$91.99

14

SEAL, COCK

3AJ-24534-10-00

$7.99

15

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

16

O-RING

4X8-24512-10-00

Unavailable

17

VALVE PACKING

3AC-24523-00-00

Unavailable

18

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

19

SCREW

90149-06108-00

Unavailable

20

DAMPER, LOCATING 2

5PA-24182-00-00

Unavailable

21

CLAMP

90464-65001-00

Unavailable

22

PIPE, FUEL 1

B4B-24311-00-00

Unavailable

23

CLIP

90467-100A1-00

Unavailable

24

CLIP

90467-09002-00

Unavailable

25

DAMPER, LOCATING 1

5PA-24181-00-00

Unavailable

26

GRAPHIC SET

B4B-24240-00-00

Unavailable
