Description

Price

1

FRONT FRAME COMP.

5PA-21101-15-00

Unavailable

2

REAR FRAME COMP.

5PA-21190-02-33

$300.99

3

BOLT, WASHER BASED(36Y)

90105-08307-00

$9.49

4

BOLT, FLANGE

95812-08125-00

$4.14

5

BOLT, FLANGE

90105-10220-00

$10.49

6

BOLT, FLANGE

90105-10174-00

$11.49

7

WASHER, PLATE

90201-10045-00

$8.49

8

NUT

90179-10024-00

$10.49

9

TENSIONER

30X-22178-00-00

$35.99

10

BUSH

4V4-22184-00-00

$4.47

11

WASHER, PLATE

90201-08078-00

$3.61

12

BOLT, FLANGE DEEP RECESS

95E32-08012-00

$0.86

13

TENSIONER

4ES-22178-01-00

$4.47

14

BOLT, WITH WASHER

90119-06200-00

Unavailable

15

COLLAR(J45)

90387-064T3-00

$7.49

16

BRACKET, C.D.I. UNIT

5PA-21274-10-00

Unavailable

17

BOLT, FLANGE DEEP RECESS

95E32-06012-00

Unavailable

18

PROTECTOR, FUEL TANK

3HA-24141-00-00

Unavailable

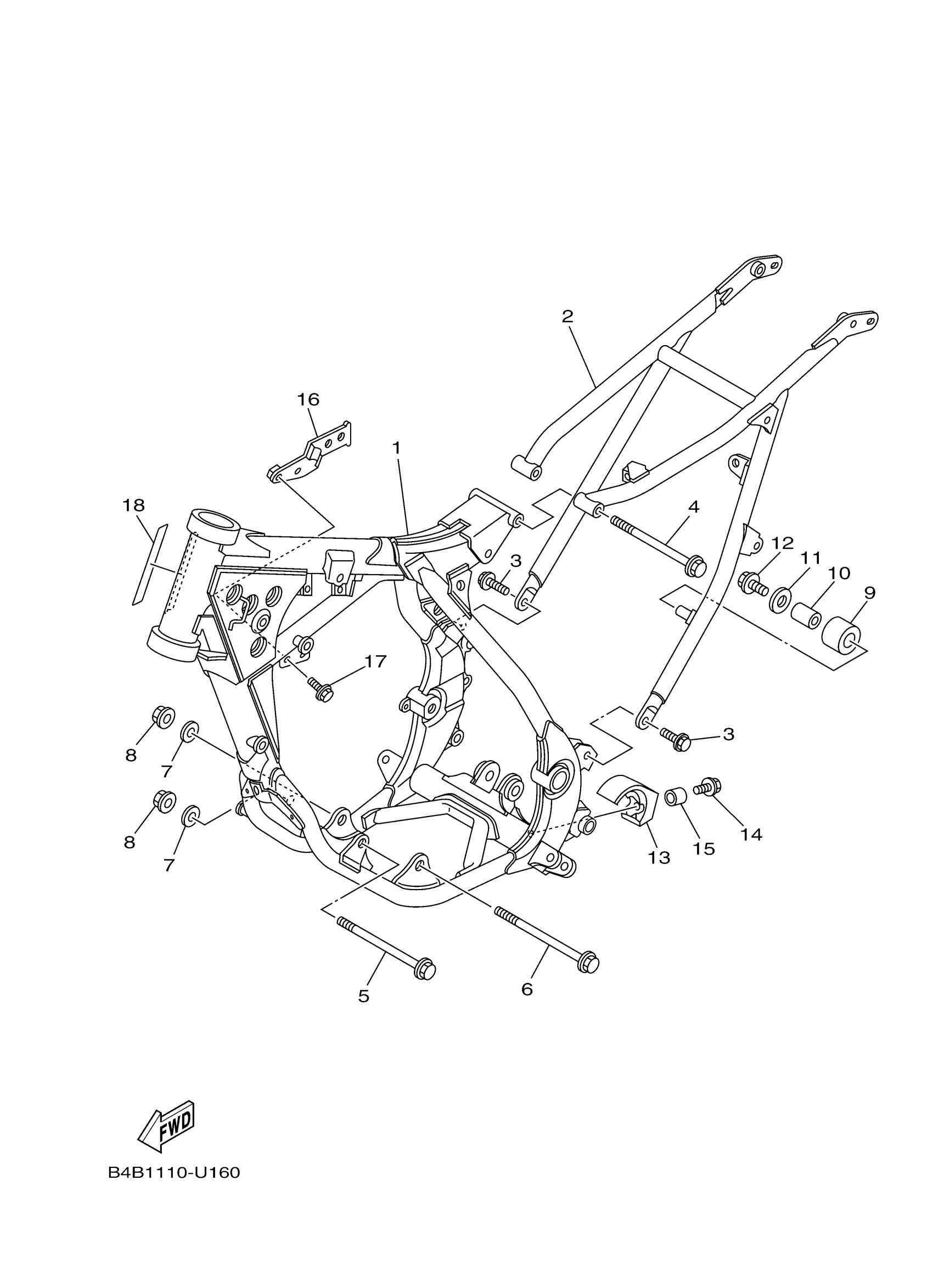

Yamaha YZ85K (YZ85) B4B1 2019 FRAME Diagram

FRONT FRAME COMP.

REAR FRAME COMP.

BOLT, WASHER BASED(36Y)

BOLT, FLANGE

BOLT, FLANGE

BOLT, FLANGE

WASHER, PLATE

NUT

TENSIONER

BUSH

WASHER, PLATE

BOLT, FLANGE DEEP RECESS

TENSIONER

BOLT, WITH WASHER

COLLAR(J45)

BRACKET, C.D.I. UNIT

BOLT, FLANGE DEEP RECESS

PROTECTOR, FUEL TANK
