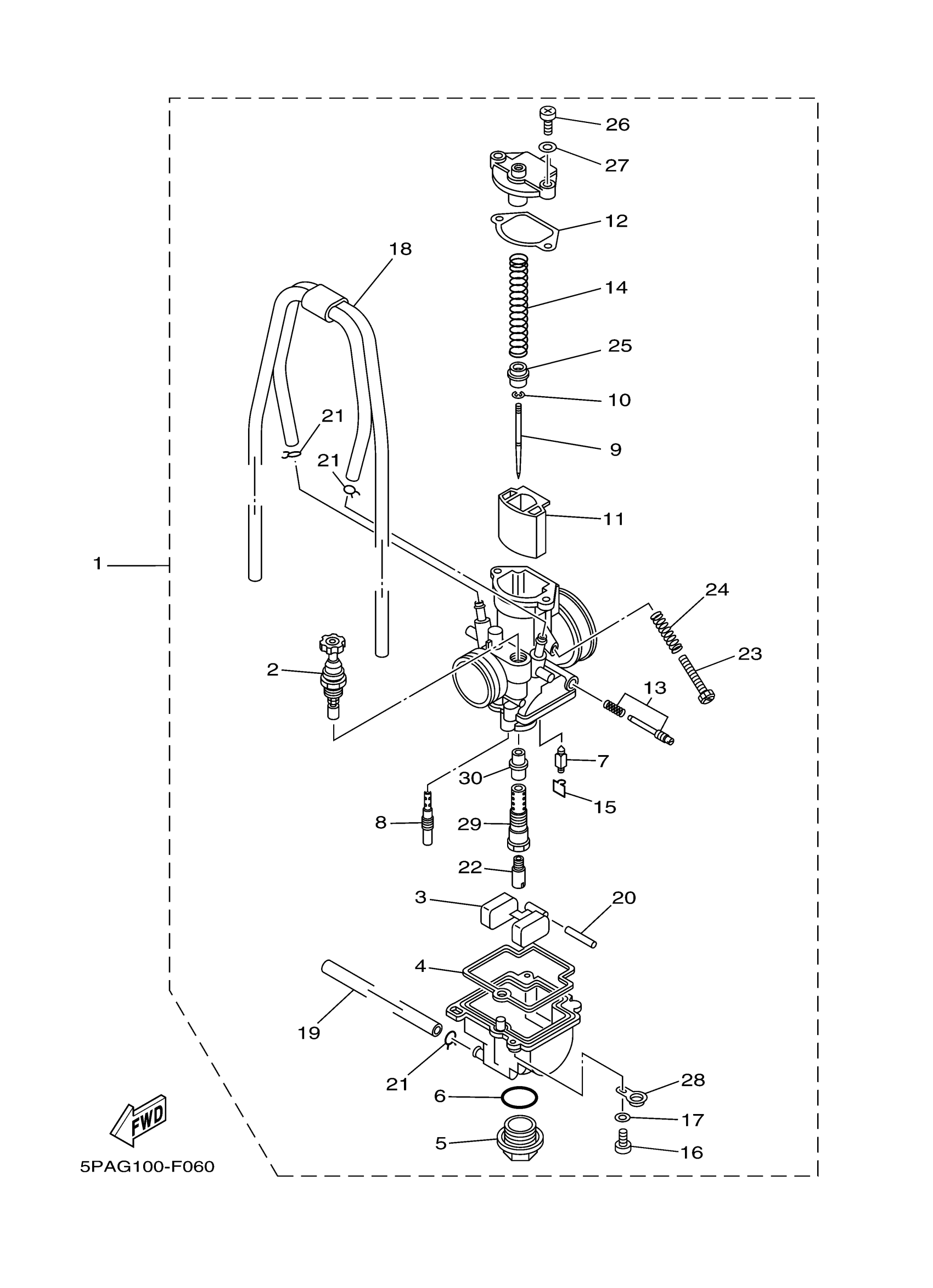

Yamaha YZ85J (YZ85) 1SNK 2018 CARBURETOR Diagram

CARBURETOR ASSY 1

5PA-14101-04-00

$311.99

PLUNGER, STARTER

4JT-14171-00-00

$40.99

FLOAT

5PA-14985-01-00

$40.99

GASKET, FLOAT CHAMBER

5PA-14984-00-00

$16.49

PLUG, SCREW

4MX-14115-00-00

$32.99

O-RING

4MX-14561-00-00

$6.99

VALVE, NEEDLE

5PA-14392-00-00

$39.99

JET, PILOT (#45)

4MX-14948-05-00

$9.99

JET, PILOT (#48)

4MX-14948-06-00

$9.99

NEEDLE (NBKE)

5PA-14916-KE-00

Unavailable

NEEDLE (NBKF)

5PA-14916-KF-00

$36.99

NEEDLE (NBKG)

5PA-14916-KG-00

$28.99

NEEDLE (NBLE)

5PA-14916-LE-00

$30.99

NEEDLE (NBLF)

5PA-14916-LF-00

Unavailable

NEEDLE (NBLG)

5PA-14916-LG-00

Unavailable

CLIP

4MX-14919-00-00

Unavailable

VALVE ASSY

5PA-14340-00-00

Unavailable

GASKET

5PA-14126-00-00

Unavailable

PILOT SCREW SET

5PA-14105-01-00

Unavailable

SPRING, THROTTLE VALVE

5PA-14131-00-00

Unavailable

CLIP

5PA-14159-00-00

Unavailable

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

HOSE

5PA-1410E-00-00

Unavailable

PIPE

4XL-14197-10-00

Unavailable

. PIN, FLOAT ARM

663-14548-00-00

Unavailable

CLIP

3TJ-14137-40-00

Unavailable

JET, MAIN (#135)

4MX-14943-34-00

Unavailable

JET, MAIN (#140)

4MX-14943-35-00

Unavailable

JET, MAIN (#138)

4MX-14943-85-00

Unavailable

JET, MAIN (#142)

4MX-14943-86-00

Unavailable

SCREW, THROTTLE

5HC-14922-00-00

Unavailable

SPRING, THROTTLE STOP

5HC-14934-00-00

Unavailable

RING

5PA-14194-00-00

Unavailable

SCREW, PAN HEAD (686)

98580-04012-00

Unavailable

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

. PLATE

5PA-14146-00-00

Unavailable

HOLDER, NEEDEL JET

5PA-1496A-01-00

Unavailable

JET, NEEDLE

5PA-14947-01-00

Unavailable
