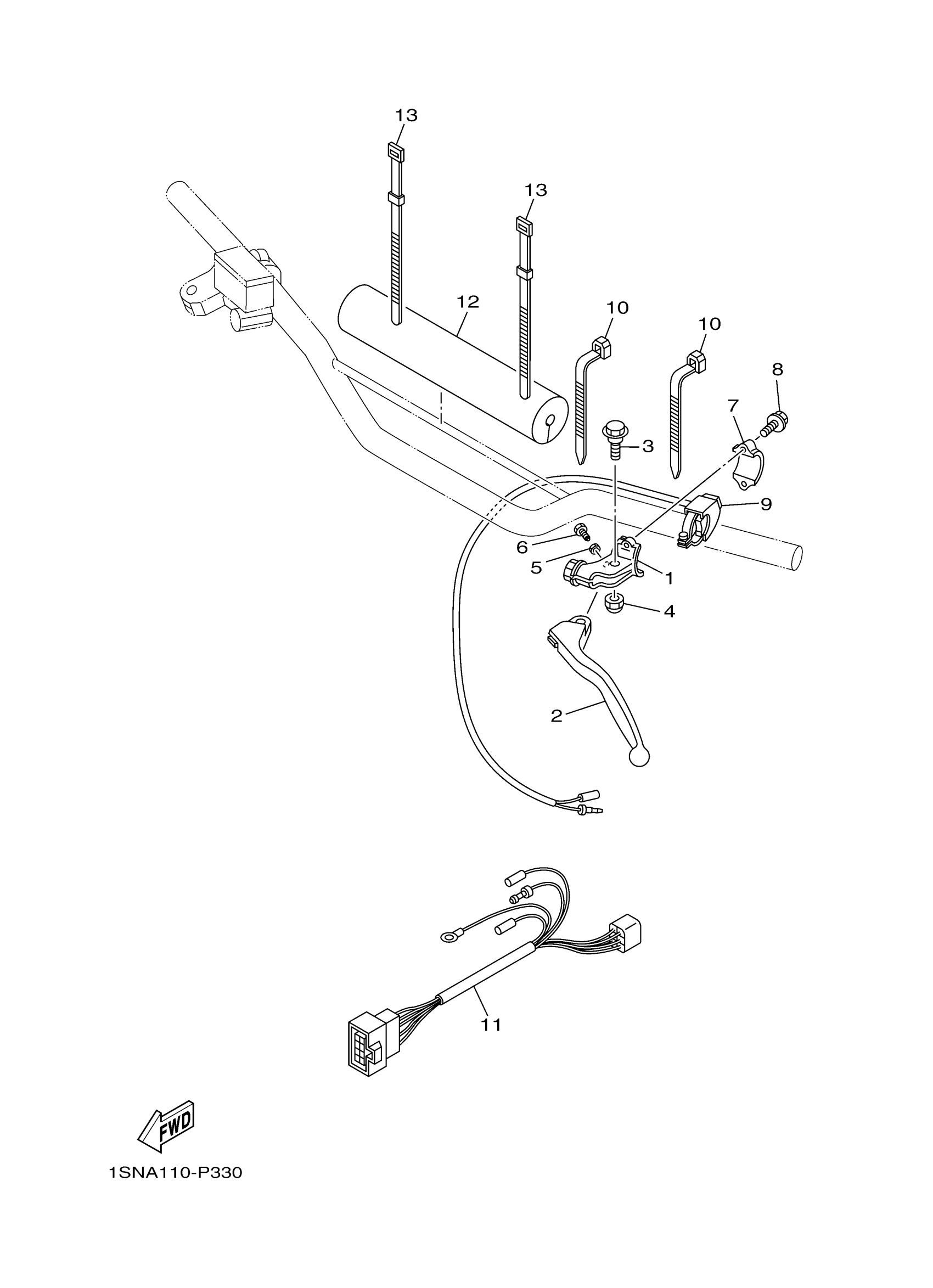

Yamaha YZ85H (YZ85) 1SNG 2017 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

17D-82911-00-00

$37.99

2

LEVER 1

1SS-83912-00-00

$33.99

3

BOLT

90109-06034-00

$7.49

4

NUT, LENS FITTING

5LP-84126-10-00

$6.99

5

NUT, HEXAGON (663)

95380-05600-00

$8.49

6

BOLT

90101-05005-00

$3.08

7

HOLDER, LEVER LOWER 1

33D-82913-00-00

$29.99

8

BOLT, FLANGE

95022-06020-00

$3.62

9

SWITCH, HANDLE 1

22W-83976-02-00

$23.99

10

CLAMP

90464-13077-00

$8.49

11

WIRE, SUB LEAD

5PA-82509-00-00

Unavailable

12

PROTECTOR, HANDLE

2X1-26124-00-00

Unavailable

13

BAND, SWITCH CORD

437-83936-11-00

$4.63
