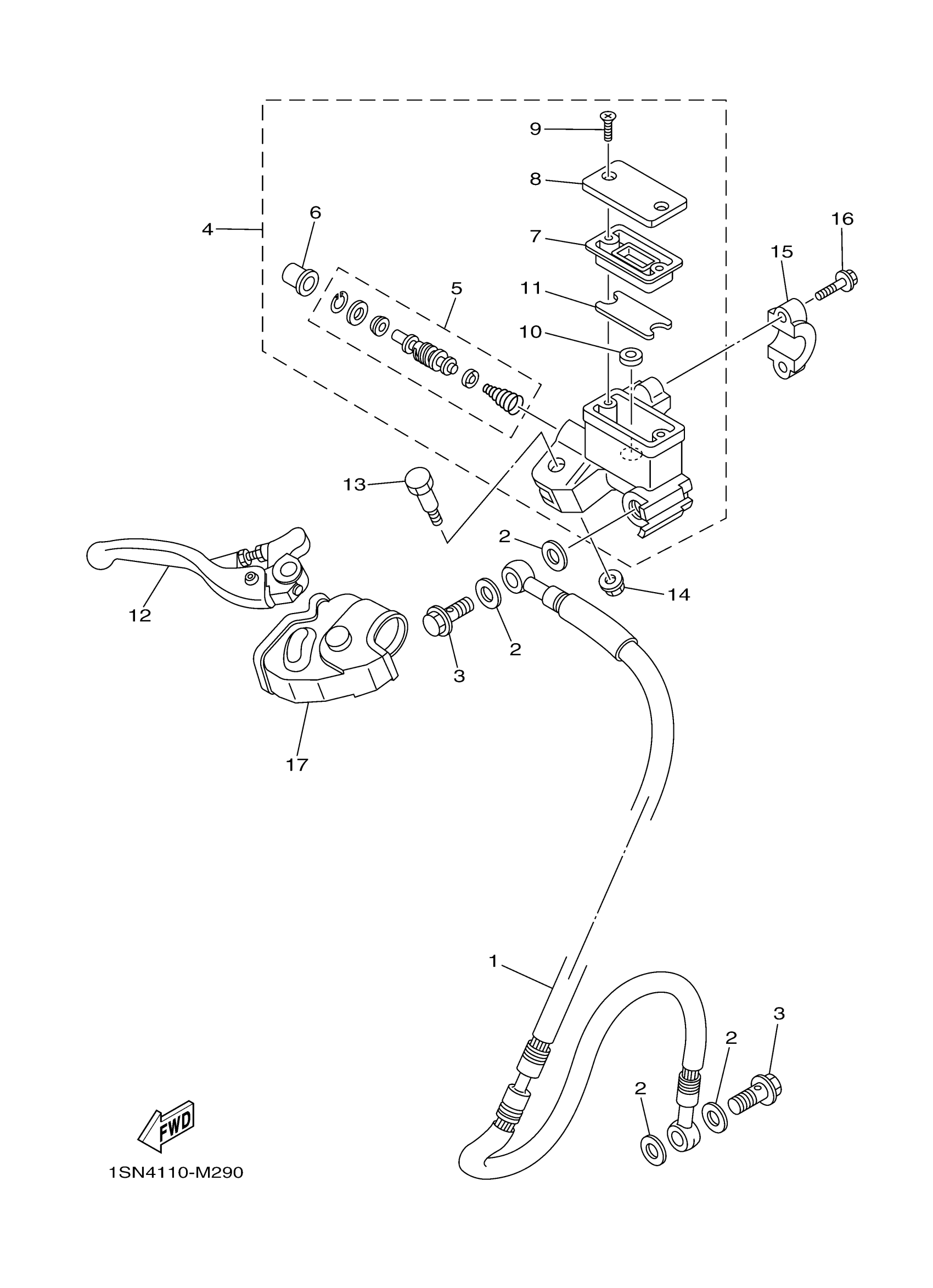

Yamaha YZ85G (YZ85) 1SND 2016 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, BRAKE 1

4ES-25872-11-00

Unavailable

2

GASKET

90430-10005-00

$9.49

3

BOLT, UNION

90401-10172-00

$5.60

4

MASTER CYLINDER SUB ASSY

5XE-W2587-01-00

$185.99

5

CYLINDER KIT, MASTER

5NY-W0041-01-00

$55.99

6

BOOT, MASTER CYLINDER

5NY-25868-00-00

$8.99

7

DIAPHRAGM, RESERVOIR

5XE-25854-00-00

$15.49

8

CAP, RESERVOIR

5MV-25852-01-00

$13.49

9

SCREW, FLAT

98707-04012-00

$2.18

10

SEPARATOR ASSY

5CG-25715-00-00

$13.49

11

FLOAT, RESERVOIR

5XE-25853-00-00

$7.99

12

LEVER 2

5MV-83922-00-00

$51.99

13

BOLT, LEVER

5MV-2589F-00-00

$6.99

14

NUT, FLANGE(7NB)

95780-06500-00

$2.60

15

BRACKET, MASTER CYLINDER

5MV-25867-00-00

$20.99

16

BOLT, FITTING

5MV-25833-00-00

Unavailable

17

COVER, HANDLE LEVER 1

5NY-26372-00-00

Unavailable
