Description

Price

1

FRONT FENDER COMP.

1SN-21510-00-00

$32.99

2

COLLAR

90387-06259-00

$8.49

3

BOLT, FLANGE

90105-06210-00

$10.49

4

BOLT, FLANGE

90105-06127-00

$8.49

5

WASHER, PLATE

90201-06108-00

$4.61

6

LABEL, CAUTION

3XJ-2415E-A1-00

$4.84

7

FENDER, REAR

5PA-21611-00-00

$59.99

8

BOLT, WITH WASHER

90119-06133-00

$5.60

9

COLLAR(3XJ)

90387-064X4-00

$7.49

10

COLLAR(4EW)

90387-0701A-00

$9.49

11

NUT, SPRING

90183-060A7-00

$8.49

12

GUARD, FLAP

4ES-21642-01-00

$37.99

13

BOLT, WITH WASHER

90119-06239-00

$3.55

14

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

15

TUNING FORK MARK

5FK-2175C-31-00

$5.49

16

PLATE, COMPETITION USA

17D-2812P-00-00

Unavailable

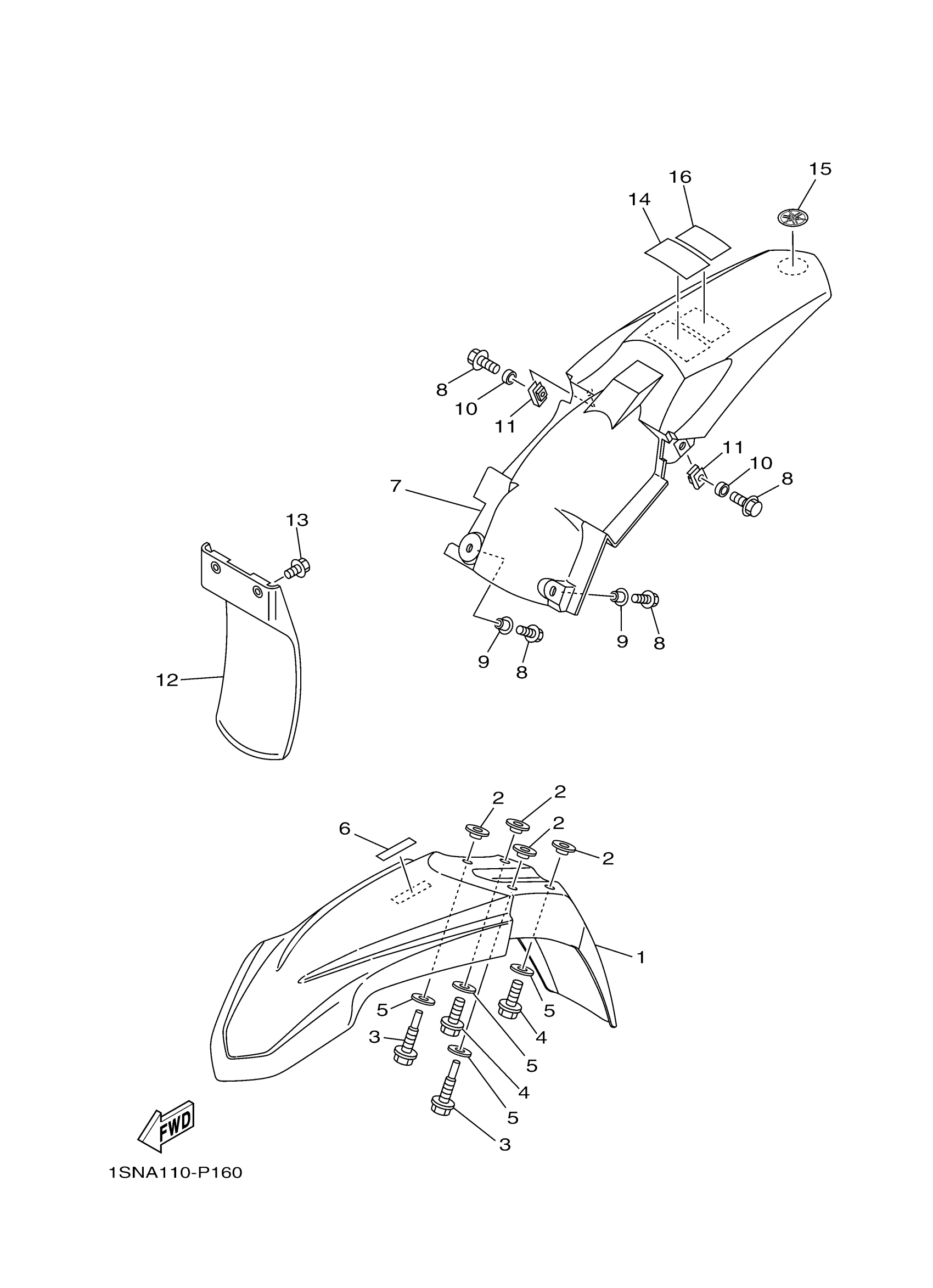

Yamaha YZ85G (YZ85) 1SND 2016 FENDER Diagram

FRONT FENDER COMP.

COLLAR

BOLT, FLANGE

BOLT, FLANGE

WASHER, PLATE

LABEL, CAUTION

FENDER, REAR

BOLT, WITH WASHER

COLLAR(3XJ)

COLLAR(4EW)

NUT, SPRING

GUARD, FLAP

BOLT, WITH WASHER

LABEL, CAUTION

TUNING FORK MARK

PLATE, COMPETITION USA
