Description

Price

1

FENDER, FRONT

4ES-21511-20-00

Unavailable

2

BOLT, WITH WASHER

90119-06201-00

$8.49

3

WASHER

90209-06015-00

$1.96

4

LABEL, CAUTION

3XJ-2415E-A1-00

$4.84

5

FENDER, REAR

5PA-21611-10-00

Unavailable

6

BOLT, WITH WASHER

90119-06133-00

$5.60

7

COLLAR(3XJ)

90387-064X4-00

$7.49

8

COLLAR(4EW)

90387-0701A-00

$9.49

9

NUT, SPRING

90183-060A7-00

$8.49

10

GUARD, FLAP

4ES-21642-01-00

$37.99

11

BOLT, WITH WASHER

90119-06239-00

$3.55

12

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

13

EMBLEM, YAMAHA

4ES-2153E-21-00

$3.33

14

PLATE, COMPETITION USA

17D-2812P-00-00

$7.99

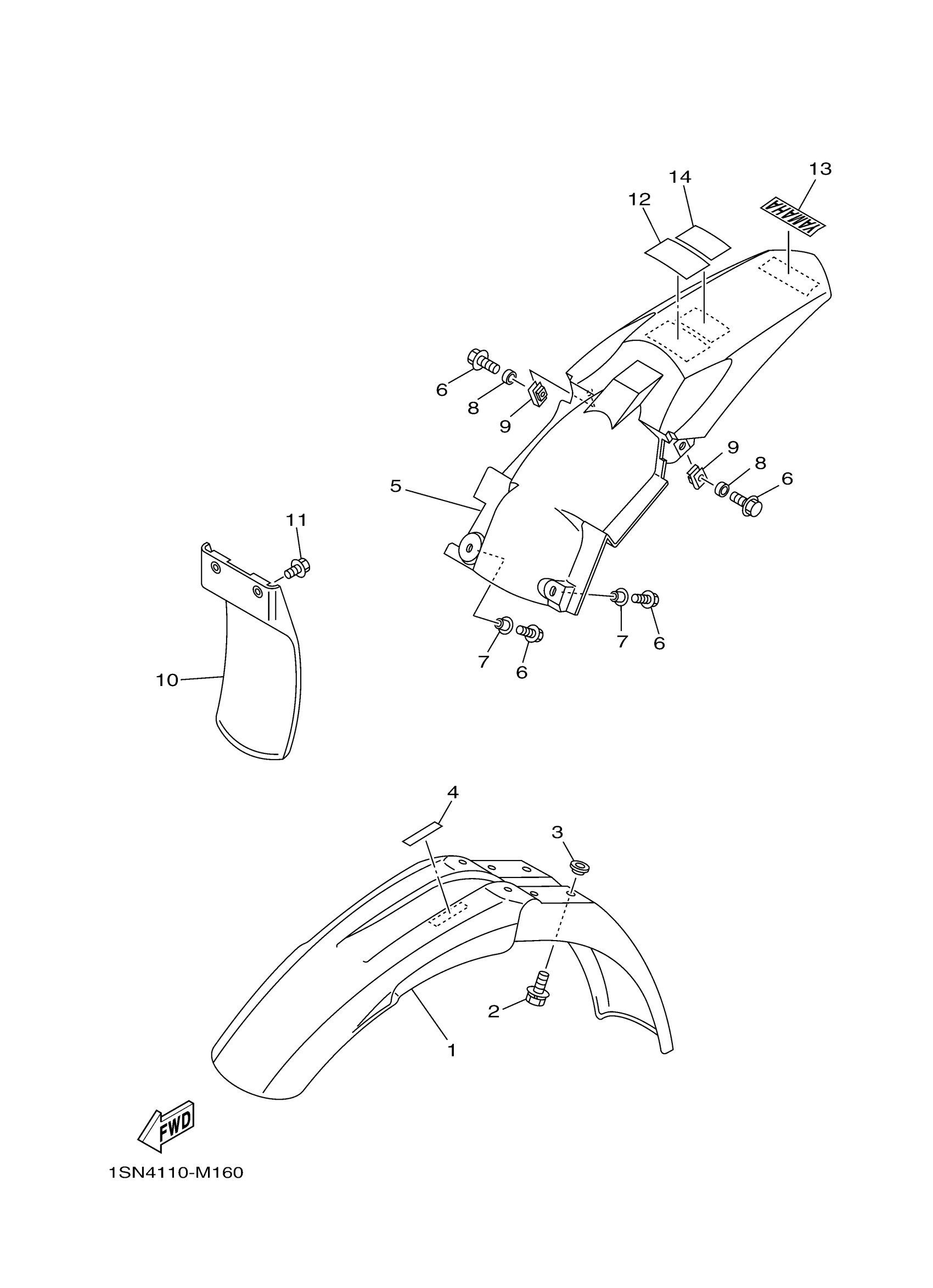

Yamaha YZ85E (YZ85) 1SN7 2014 FENDER Diagram

FENDER, FRONT

BOLT, WITH WASHER

WASHER

LABEL, CAUTION

FENDER, REAR

BOLT, WITH WASHER

COLLAR(3XJ)

COLLAR(4EW)

NUT, SPRING

GUARD, FLAP

BOLT, WITH WASHER

LABEL, CAUTION

EMBLEM, YAMAHA

PLATE, COMPETITION USA
