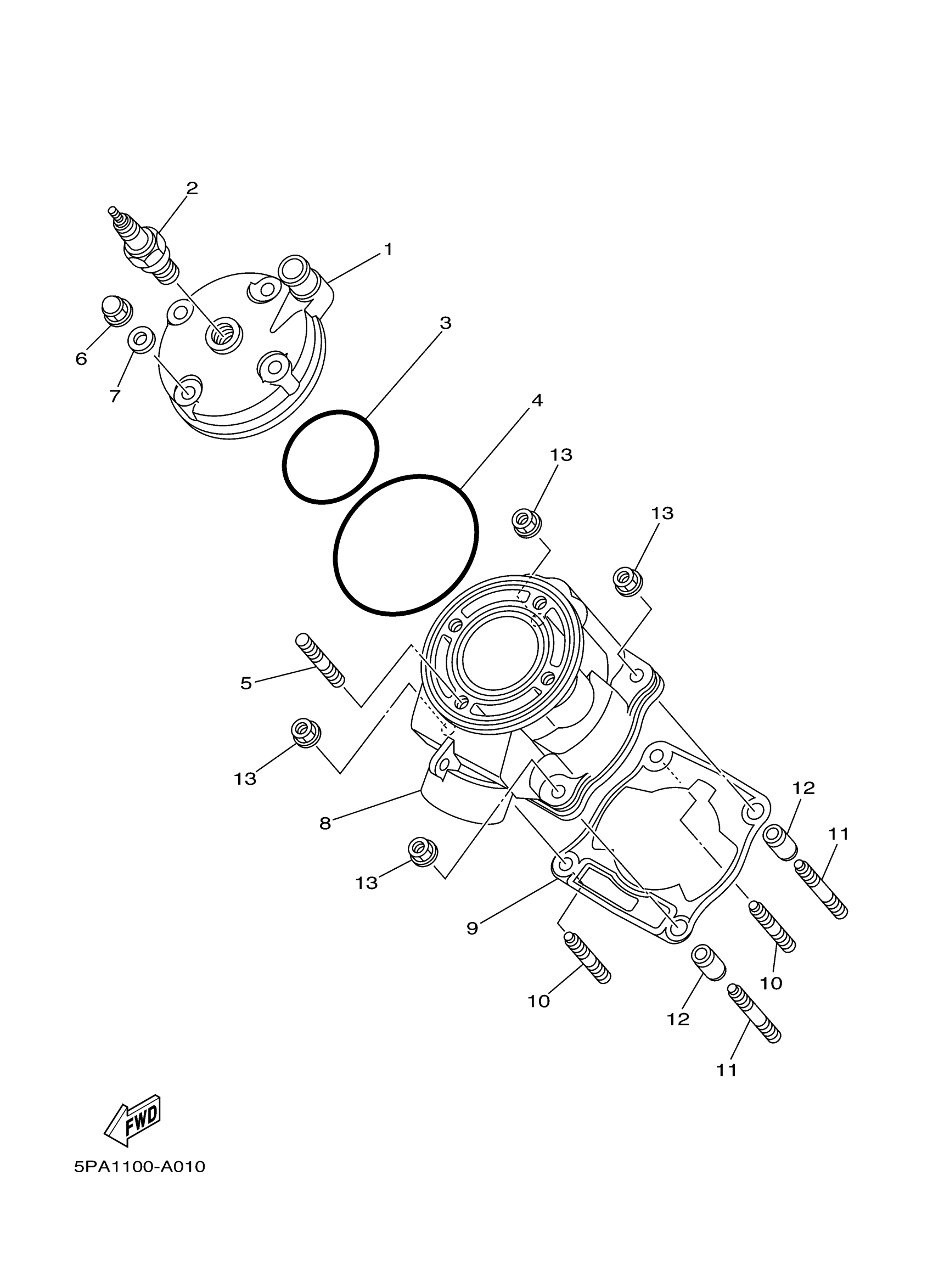

Yamaha YZ85E (YZ85) 1SN7 2014 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

5PA-11111-01-00

Unavailable

2

PLUG, SPARK (NGK BR10EG)

BR1-0EG00-00-00

$6.83

3

O-RING (4G0)

93210-56459-00

$10.29

4

O-RING(4ES)

93210-84724-00

$7.94

5

BOLT, STUD

90116-08027-00

$3.04

6

NUT, CROWN

90176-08005-00

$1.91

7

WASHER, PLATE

90201-080L8-00

$2.61

8

CYLINDER 1

5PA-11311-30-00

$853.58

9

GASKET, CYLINDER

4ES-11351-00-00

$16.29

10

BOLT, STUD

90116-08031-00

$7.77

11

BOLT, STUD

90116-08028-00

$6.34

12

PIN, DOWEL

99590-10114-00

$4.11

13

NUT

90179-08019-00

$4.87

14

TOP END GASKET KIT

5PA-W0002-00-00

Unavailable
