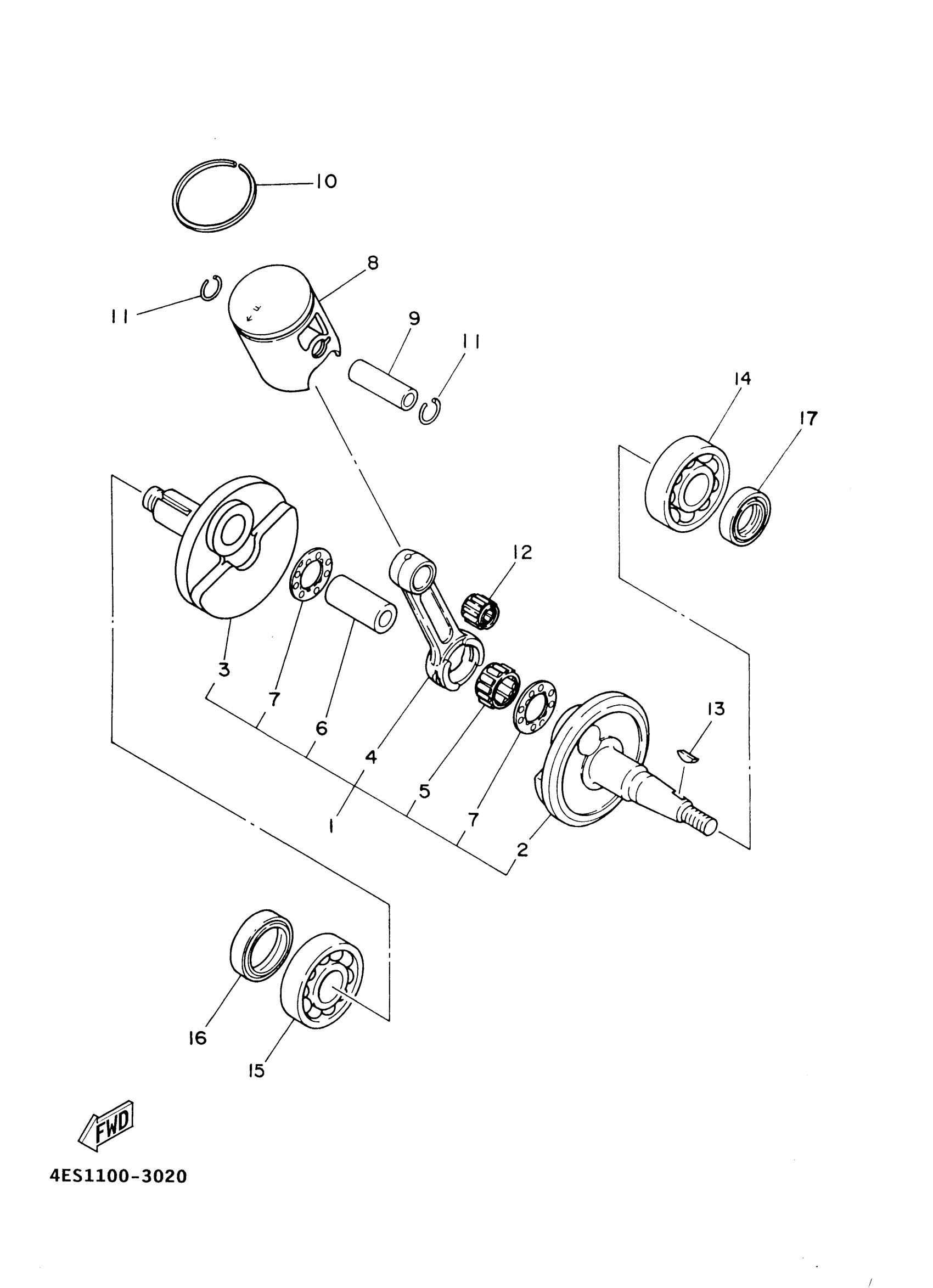

Yamaha YZ85E (YZ85) 1SN7 2014 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

5PA-11400-00-00

$332.98

2

CRANK 1

5PA-11412-00-00

Unavailable

3

CRANK 2

5PA-11422-00-00

$124.65

4

ROD, CONNECTING

4ES-11651-10-00

Unavailable

5

BEARING

93310-420B1-00

$45.27

6

PIN, CRANK 1

2RA-11681-00-00

$32.91

7

WASHER, CRANK PIN (1H9)

90209-20159-00

$3.88

8

PISTON (STD)

5PA-11631-10-A0

$72.17

8

PISTON (STD)

5PA-11631-10-B0

$68.61

8

PISTON (STD)

5PA-11631-10-C0

$72.27

8

PISTON (STD)

5PA-11631-10-D0

$71.91

9

PIN, PISTON

4ES-11633-00-00

$13.33

10

RING, PISTON

5PA-11611-01-00

$12.71

11

CIRCLIP(1HX)

93450-16115-00

$2.60

12

BEARING

93310-21417-00

$25.93

13

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

14

BEARING(4ED)

93306-20468-00

Unavailable

15

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

16

OIL SEAL

93102-28009-00

Unavailable

17

OIL SEAL(4BA)

93102-20447-00

Unavailable
