Description

Price

1

COVER, SIDE 1

5PA-21711-00-00

Unavailable

2

COLLAR

90387-06009-00

$10.49

3

COLLAR

90387-1001B-00

Unavailable

4

GRAPHIC 1

5PA-2173E-30-00

Unavailable

5

GRAPHIC 2

5PA-2173F-30-00

Unavailable

6

BOLT, WITH WASHER

90119-06240-00

$3.55

7

BOLT, WITH WASHER(4ES)

90119-06217-00

$8.49

8

COVER, SIDE 2

5PA-21721-00-00

$37.99

9

COLLAR

90387-06009-00

$10.49

10

COLLAR

90387-1001B-00

Unavailable

11

BOLT, WITH WASHER

90119-06240-00

$3.55

12

BOLT, WITH WASHER(4ES)

90119-06217-00

$8.49

13

COVER, SIDE 3

5PA-21731-10-00

$49.99

14

COLLAR

90387-06009-00

$10.49

15

COLLAR

5PA-21748-00-00

Unavailable

16

GRAPHIC 3

1SN-2174G-10-00

Unavailable

17

SCREW, WITH WASHER(3YJ)

90159-06182-00

Unavailable

18

SCREW, WITH WASHER

90159-06021-00

Unavailable

19

DAMPER

1FK-21746-00-00

Unavailable

20

PANEL 1

5PH-2172A-11-00

Unavailable

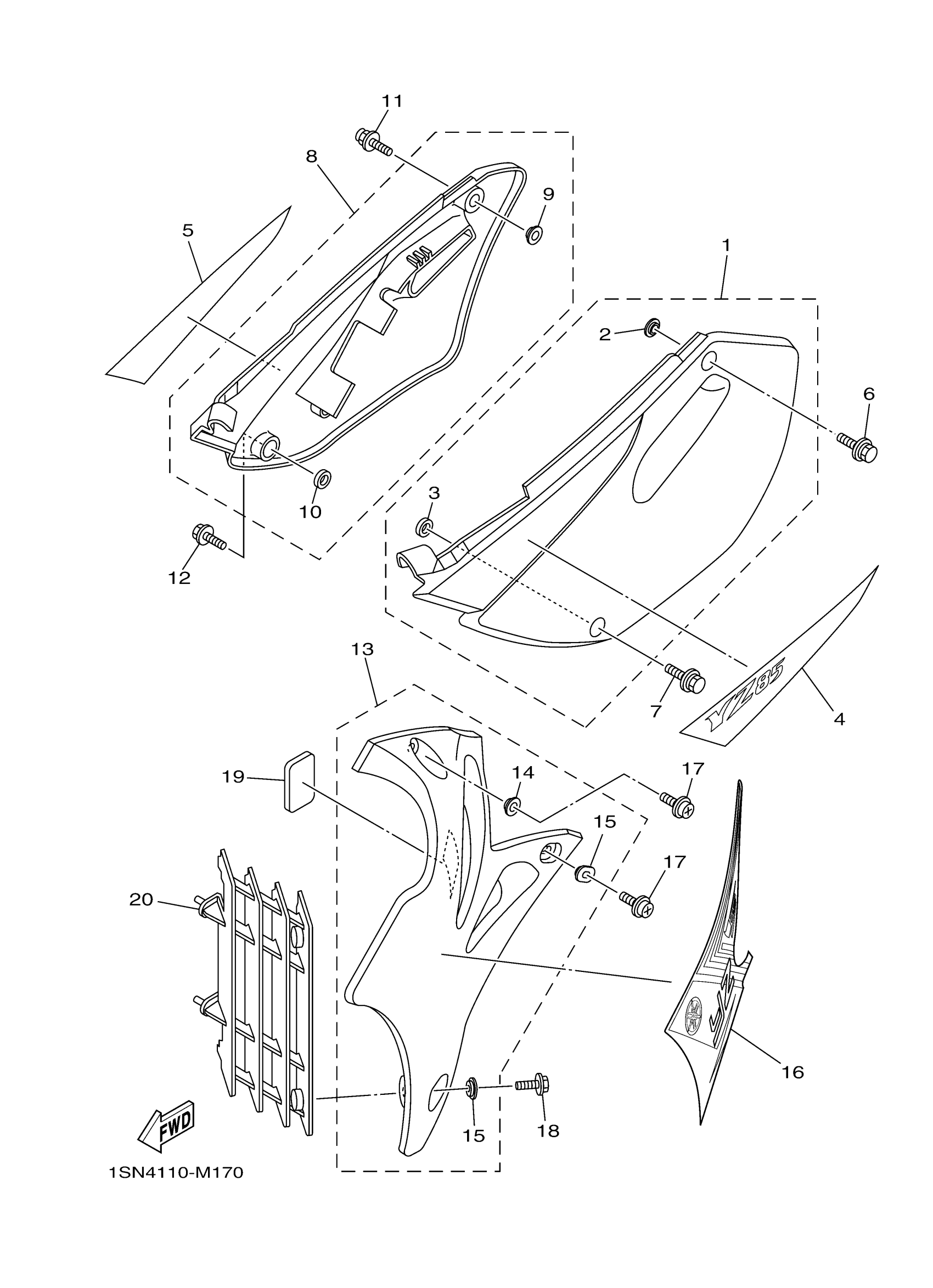

Yamaha YZ85D (YZ85) 1SN4 2013 SIDE COVER Diagram

COVER, SIDE 1

COLLAR

COLLAR

GRAPHIC 1

GRAPHIC 2

BOLT, WITH WASHER

BOLT, WITH WASHER(4ES)

COVER, SIDE 2

COLLAR

COLLAR

BOLT, WITH WASHER

BOLT, WITH WASHER(4ES)

COVER, SIDE 3

COLLAR

COLLAR

GRAPHIC 3

SCREW, WITH WASHER(3YJ)

SCREW, WITH WASHER

DAMPER

PANEL 1
