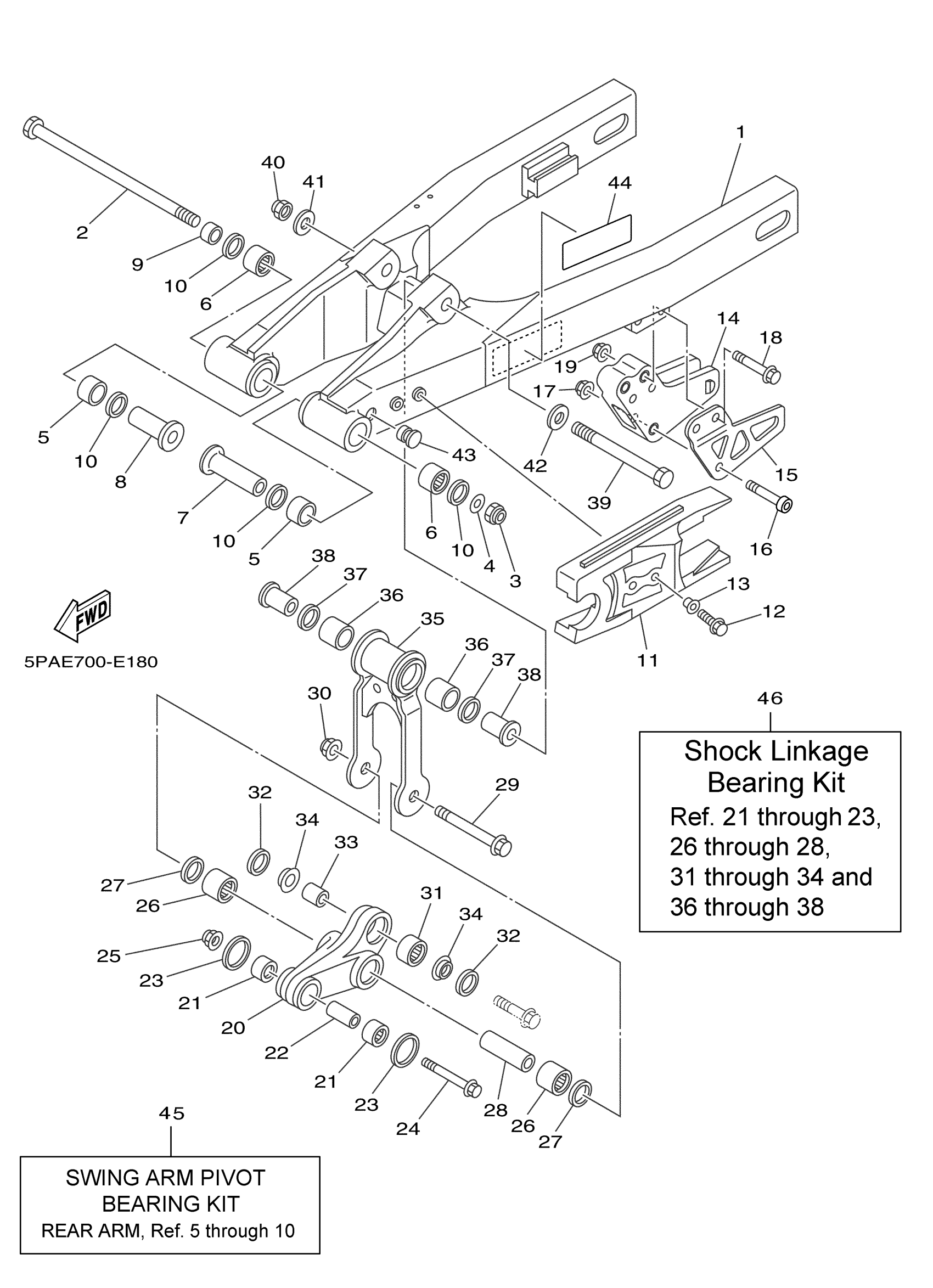

Yamaha YZ85D (YZ85) 1SN4 2013 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

5PA-22110-00-00

Unavailable

2

AXLE, WHEEL

22W-25181-01-00

$28.11

3

NUT, U

95612-12100-00

$3.82

4

WASHER, PLATE

90201-12032-00

$4.26

5

BUSH(39K)

90385-17042-00

$17.77

6

BEARING, CYLINDRICAL(39K)

93317-21746-00

$27.78

7

COLLAR(39K)

90387-127J8-00

$30.33

8

COLLAR(39K)

90387-127J7-00

$25.76

9

COLLAR(4ES)

90387-1200U-00

$15.71

10

OIL SEAL

93109-17071-00

$6.29

11

SEAL, GUARD

5PA-22151-00-00

$89.24

12

BOLT, FLANGE

95022-06014-00

$2.46

13

COLLAR

90387-06180-00

Unavailable

14

SUPPORT, CHAIN

5PA-22199-00-00

$34.12

15

COVER, THRUST 1

5PA-22128-00-00

Unavailable

16

BOLT, BUTTON HEAD

92012-06040-00

Unavailable

17

NUT, U FLANGE

95604-06200-00

Unavailable

18

BOLT, FLANGE

95022-08050-00

Unavailable

19

NUT, SELF-LOCKING

95602-08200-00

Unavailable

20

ARM, RELAY

5PA-2217A-00-00

Unavailable

21

BEARING, CYLINDRICAL(8CM)

93315-21455-00

Unavailable

22

BUSH, SOLID(4ES)

90380-10218-00

Unavailable

23

COVER, THRUST 2

4ES-22129-00-00

Unavailable

24

BOLT, WASHER BASED(3FV)

90105-10582-00

Unavailable

25

NUT, S/L FLANGE

95602-10200-00

Unavailable

26

BEARING, CYLINDRICAL(3YL)

93317-31771-00

Unavailable

27

OIL SEAL (17X25X4-401)

93101-17062-00

Unavailable

28

BUSH, SOLID(4ES)

90380-12219-00

Unavailable

29

BOLT

90109-12015-00

Unavailable

30

NUT, SELF-LOCKING

95602-12200-00

Unavailable

31

BEARING

5PA-22176-00-00

Unavailable

32

SEAL, DUST

5PA-22475-00-00

Unavailable

33

BUSH

5PA-22184-00-00

Unavailable

34

COLLAR, DISTANCE

5PA-22253-00-00

Unavailable

35

ROD, CONNECTING 1

4ES-2217F-00-00

Unavailable

36

BEARING, CYLINDRICAL(3YL)

93317-31771-00

Unavailable

37

OIL SEAL (17X25X4-401)

93101-17062-00

Unavailable

38

BUSH, SOLID(4ES)

90381-12091-00

Unavailable

39

BOLT(4ES)

90101-12755-00

Unavailable

40

NUT, SELF-LOCKING

90185-12011-00

Unavailable

41

WASHER, PLATE

90201-12047-00

Unavailable

42

WASHER, PLATE

90201-12049-00

Unavailable

43

PLUG (31M)

90338-10150-00

Unavailable

44

LABEL, TIRE

3RV-21668-A1-00

Unavailable

45

SWING ARM PIVOT BEARING KIT

1SN-W002C-00-00

Unavailable

46

SHOCK LINKAGE BEARING KIT

1SN-W002E-00-00

Unavailable
