2013 Yamaha YZ85 (YZ85D) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2013 Yamaha YZ85 (YZ85D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

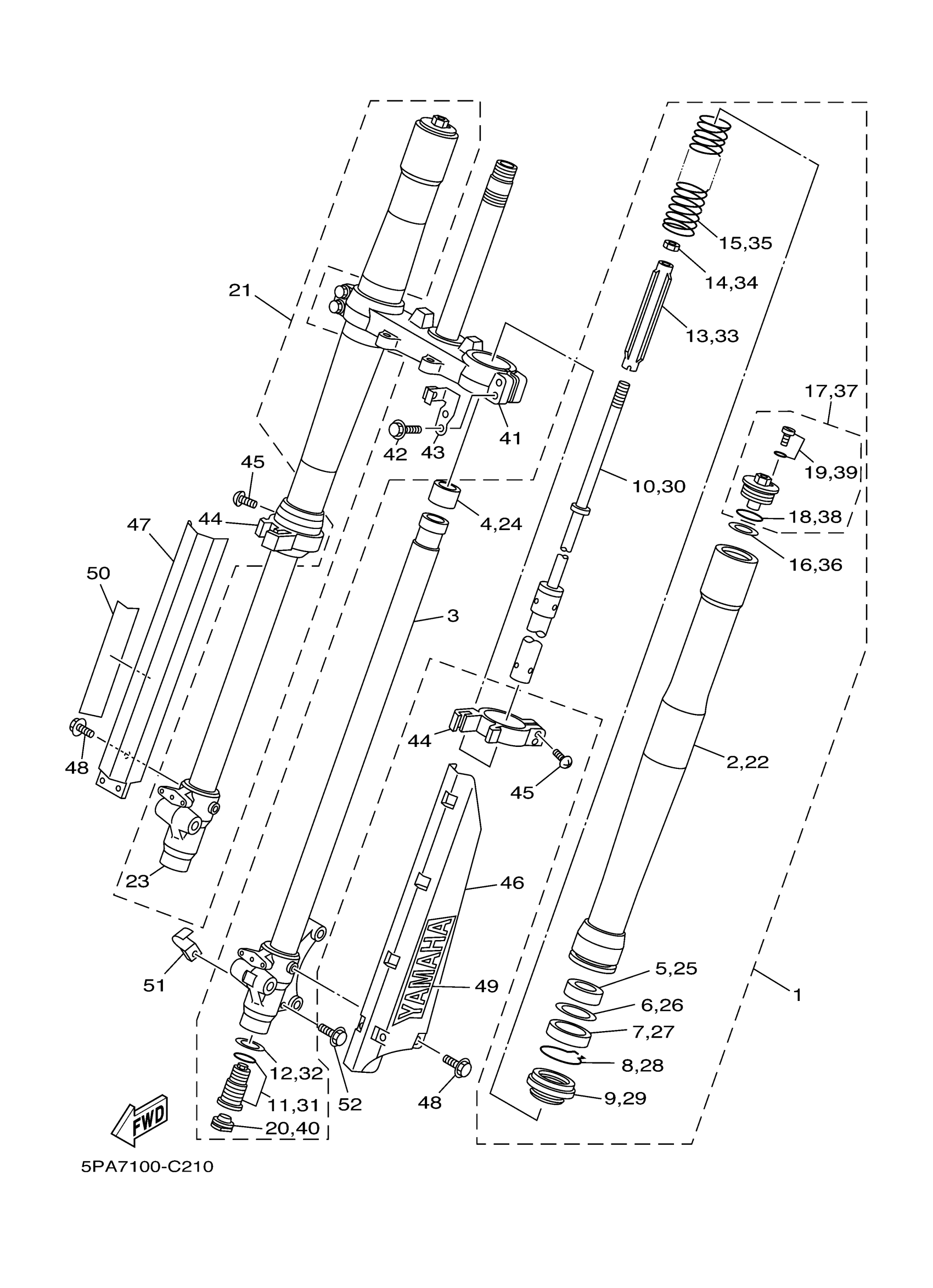

2013 Yamaha YZ85 (YZ85D) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

5PA-23102-10-00

—
Out of stock

2

TUBE, OUTER

5PA-23136-10-00

—
Out of stock

3

INNER TUBE COMP.2

5PA-23120-00-00

—
Out of stock

4

PISTON, FRONT FORK

5PA-23171-00-00

1

$26.50

In stock

5

METAL, SLIDE 1

5PA-23125-00-00

1

$12.09

In stock

6

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

7

OIL SEAL

4ES-23145-00-00

1

$18.57

In stock

8

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

9

SEAL, DUST

4ES-23144-00-00

1

$19.51

In stock

10

CYLINDER COMP., FRONT FORK

5PA-23170-00-00

—
Out of stock

11

VALVE COMP.

5PA-2316A-00-00

—
Out of stock

12

GASKET

2HH-23158-L0-00

1

$9.49

In stock

13

SEAT, SPRING UPPER

4ES-23142-00-00

—
Out of stock

14

NUT

3XJ-23357-L0-00

1

$0.72

In stock

15

SPRING, FRONT FORK

4ES-23141-80-00

—

$47.95

In stock

16

WASHER, SPRING UPPER

5PA-23149-00-00

—

$4.77

In stock

17

BOLT, CAP

4ES-23111-10-00

—
Out of stock

18

O-RING

4V4-23188-L1-00

—

$4.77

In stock

19

B0LT, SPECIAL

3JD-23394-00-00

—
Out of stock

20

PLUG

3JD-2312G-L0-00

—
Out of stock

21

FRONT FORK ASSY (R.H)

5PA-23103-10-00

—
Out of stock

22

TUBE, OUTER

5PA-23136-10-00

—
Out of stock

23

INNER TUBE COMP.1

5PA-23110-00-00

—
Out of stock

24

PISTON, FRONT FORK

5PA-23171-00-00

1

$26.50

In stock

25

METAL, SLIDE 1

5PA-23125-00-00

1

$12.09

In stock

26

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

27

OIL SEAL

4ES-23145-00-00

1

$18.57

In stock

28

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

29

SEAL, DUST

4ES-23144-00-00

1

$19.51

In stock

30

CYLINDER COMP., FRONT FORK

5PA-23170-00-00

—
Out of stock

31

VALVE COMP.

5PA-2316A-00-00

—
Out of stock

32

GASKET

2HH-23158-L0-00

1

$9.49

In stock

33

SEAT, SPRING UPPER

4ES-23142-00-00

—
Out of stock

34

NUT

3XJ-23357-L0-00

1

$0.72

In stock

35

SPRING, FRONT FORK

4ES-23141-80-00

—

$47.95

In stock

36

WASHER, SPRING UPPER

5PA-23149-00-00

—

$4.77

In stock

37

BOLT, CAP

4ES-23111-10-00

—
Out of stock

38

O-RING

4V4-23188-L1-00

—

$4.77

In stock

39

B0LT, SPECIAL

3JD-23394-00-00

—
Out of stock

40

PLUG

3JD-2312G-L0-00

—
Out of stock

41

UNDER BRACKET COMP.

5PA-23340-01-00

—
Out of stock

42

BOLT 1

5PA-23346-00-00

—

$5.22

In stock

43

GUIDE, CABLE

5PA-2331E-10-00

—
Out of stock

44

PROTECTER GUIDE COMP., 1

4ES-2314F-00-00

—
Out of stock

45

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

46

PROTECTER COMP., 1

5PA-2314H-L0-00

—
Out of stock

47

PROTECTER COMP., 2

5PA-2314J-L0-00

—
Out of stock

48

BOLT, FLANGE(2UJ)

95024-06010-00

—

$4.22

In stock

49

EMBLEM, YAMAHA

4XL-2153A-11-00

—
Out of stock

50

EMBLEM, YAMAHA

4XL-2153A-11-00

—
Out of stock

51

HOLDER, CABLE 1

5PA-23318-00-00

—
Out of stock

52

BOLT, FLANGE

95022-06020-00

—

$3.32

In stock

53

FORK SEAL KIT (TWO FORKS)

4ES-W003B-00-00

—
Out of stock
