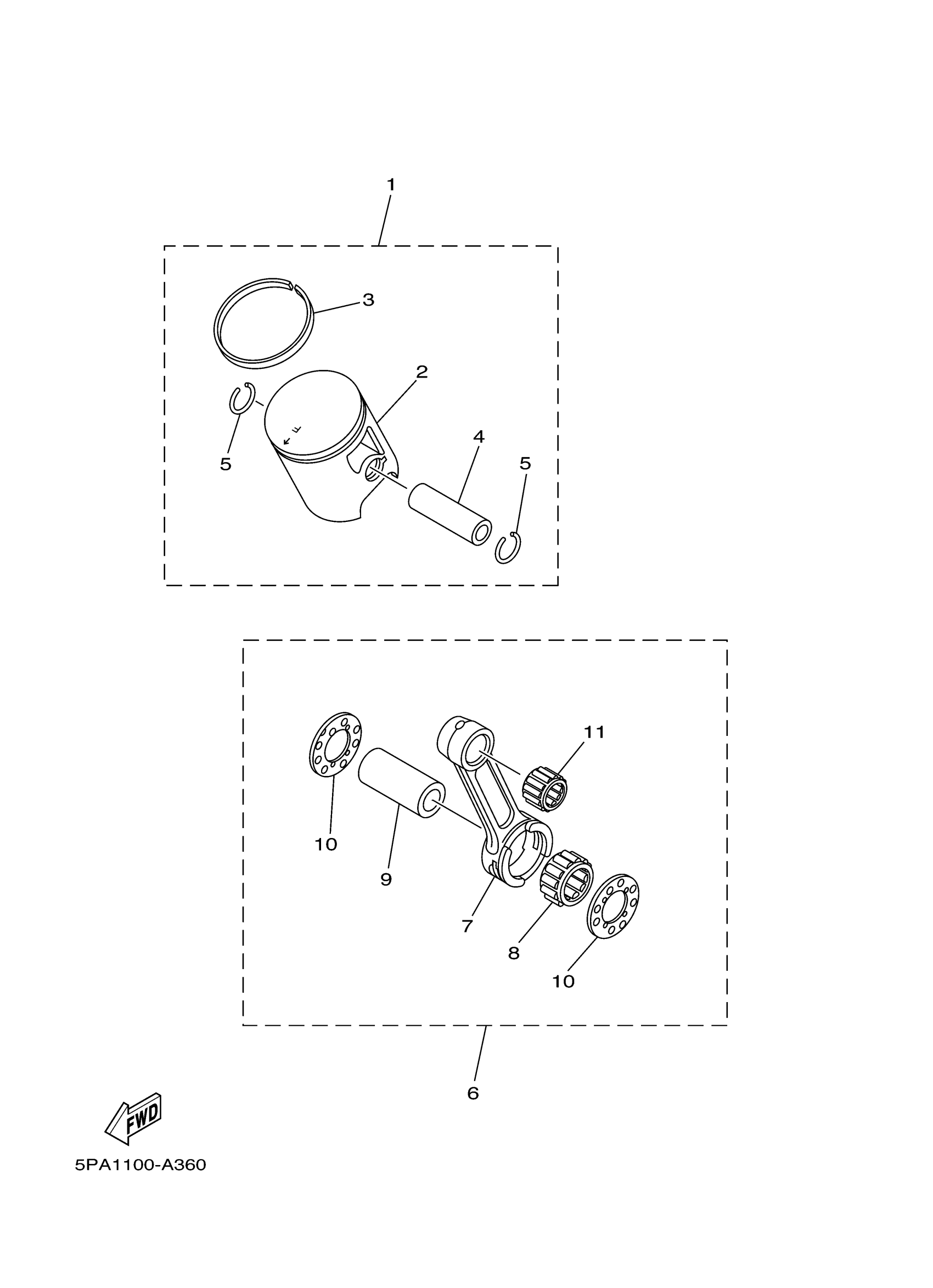

Yamaha YZ85D (YZ85) 1SN4 2013 OPTIONAL PARTS 1 Diagram

#

Description
Price

1

PISTON ASSY (STD)

5PA-11630-00-00

$103.59

2

PISTON (STD)

5PA-11631-10-B0

$68.61

3

RING, PISTON

5PA-11611-01-00

$12.71

4

PIN, PISTON

4ES-11633-00-00

$13.33

5

CIRCLIP(1HX)

93450-16115-00

$2.60

6

CONNECTING ROD ASSY

4ES-11650-10-00

Unavailable

7

ROD, CONNECTING

4ES-11651-10-00

Unavailable

8

BEARING

93310-420B1-00

$45.27

9

PIN, CRANK 1

2RA-11681-00-00

$32.91

10

WASHER, CRANK PIN (1H9)

90209-20159-00

$3.88

11

BEARING

93310-21417-00

$25.93
