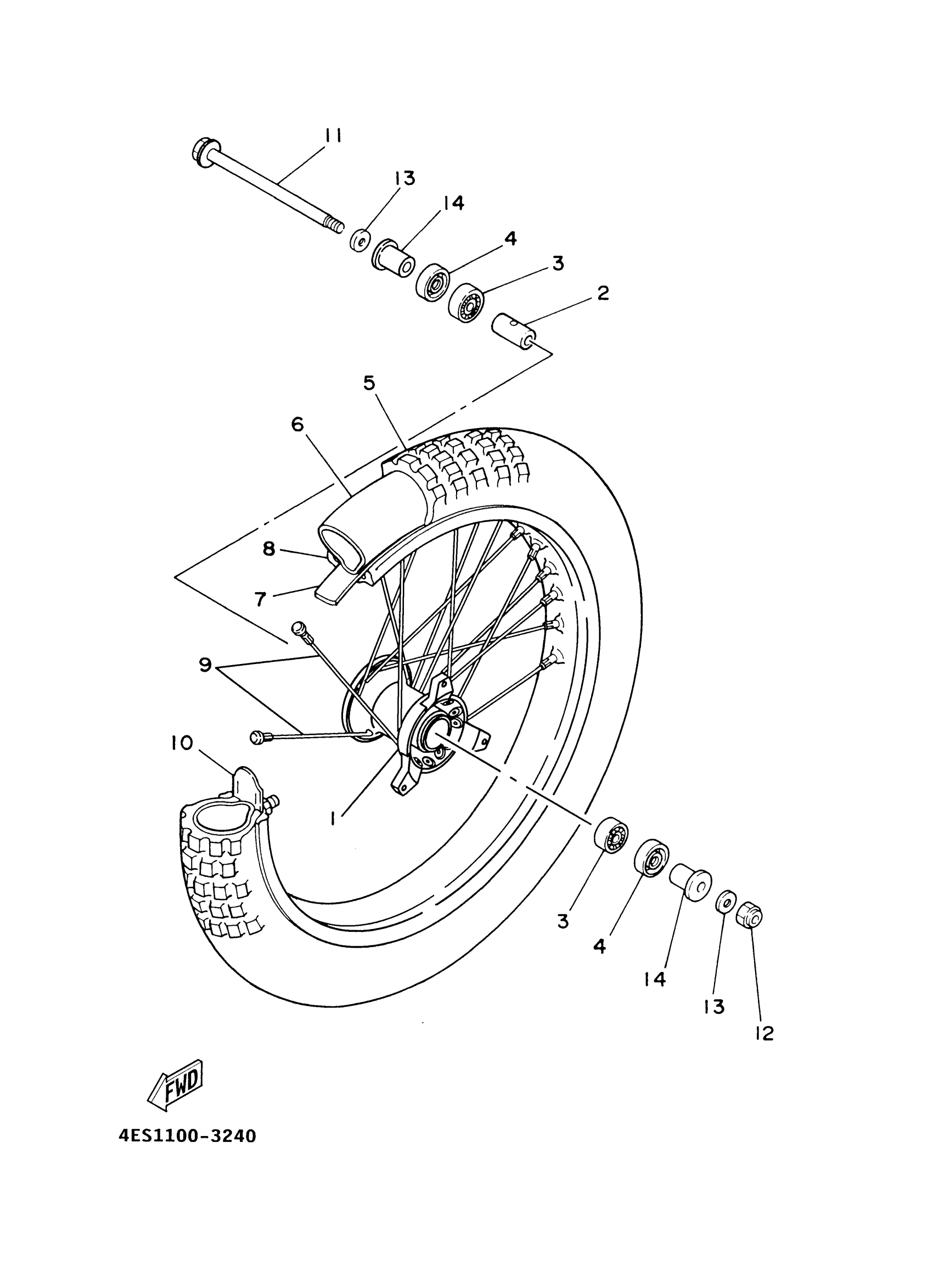

Yamaha YZ85D (YZ85) 1SN4 2013 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

4ES-25111-01-00

$175.99

2

COLLAR (26H)

90387-124H0-00

$16.99

3

BEARING(82M)

93306-20117-00

$34.99

4

OIL SEAL(4ES)

93106-20031-00

$14.99

5

70/100-17 40M D739FA

94107-17019-00

Unavailable

6

TUBE (70/100-17 TR4)(4ES)

94207-17284-00

$21.99

7

BAND, RIM (22-17)

94307-17166-00

$7.49

8

RIM (1.40-17)(4ES)

94414-17530-00

Unavailable

9

SPOKE SET, FRONT

4ES-25104-20-00

$72.99

10

SPACER, BEAD

1T1-25194-00-00

Unavailable

11

AXLE, WHEEL

4ES-25181-00-00

$48.99

12

NUT, SELF-LOCKING

90185-12010-00

$8.49

13

WASHER, PLATE

90201-12055-00

$8.49

14

COLLAR, WHEEL

4ES-25183-10-00

$33.99
