Description

Price

1

KICK AXLE ASSY

5PA-15660-00-00

$103.99

2

GEAR, KICK

5PA-15641-00-00

$77.99

3

CLIP(4ES)

90468-23194-00

$9.49

4

WASHER, PLATE(2UV)

90201-176L4-00

$9.49

5

SPRING, TORSION(2UV)

90508-26750-00

$12.49

6

GUIDE, SPRING

4ES-15664-00-00

$30.99

7

OIL SEAL (15A)

93102-17263-00

$10.49

8

GEAR, KICK IDLE

5PA-15651-00-00

$73.99

9

WASHER, PLATE (10X)

90201-124F8-00

$9.49

10

CIRCLIP(10Y)

99009-12400-00

$3.59

11

KICK CRANK ASSY

5PA-15620-01-00

$206.99

12

BOSS, KICK CRANK

5PA-15621-00-00

Unavailable

13

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

14

BALL (12R)

93507-32031-00

$4.73

15

SCREW, COUNTERSUNK

90151-06045-00

$8.49

16

O-RING (256)

93210-12152-00

Unavailable

17

PLUG, TAPER(3FA)

90336-06031-00

Unavailable

18

BOLT, FLANGE

95022-06012-00

Unavailable

19

WASHER, PLATE

90201-06020-00

Unavailable

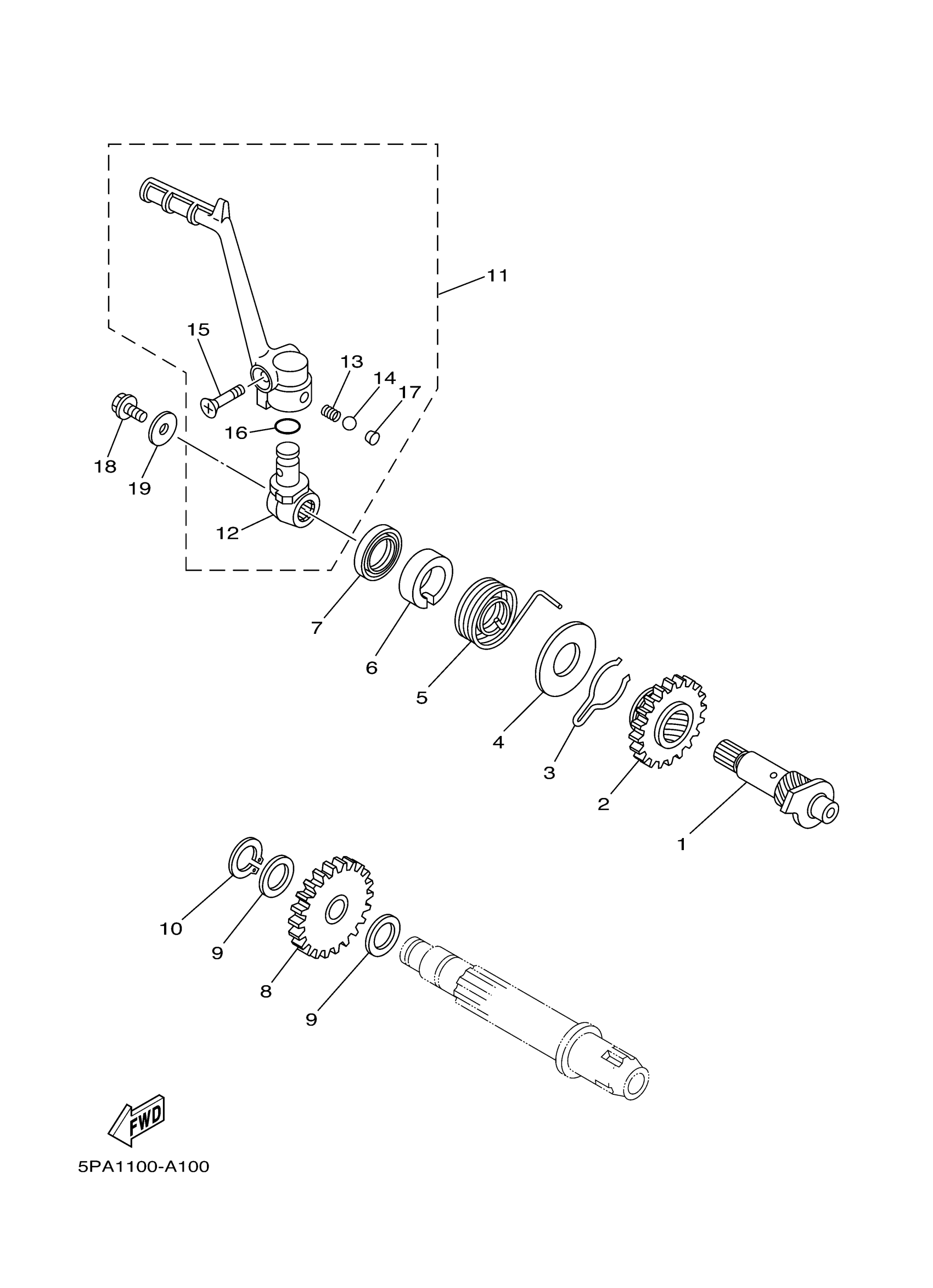

Yamaha YZ85B (YZ85) 1SN1 2012 STARTER Diagram

KICK AXLE ASSY

GEAR, KICK

CLIP(4ES)

WASHER, PLATE(2UV)

SPRING, TORSION(2UV)

GUIDE, SPRING

OIL SEAL (15A)

GEAR, KICK IDLE

WASHER, PLATE (10X)

CIRCLIP(10Y)

KICK CRANK ASSY

BOSS, KICK CRANK

SPRING COMPRESSION278156220000

BALL (12R)

SCREW, COUNTERSUNK

O-RING (256)

PLUG, TAPER(3FA)

BOLT, FLANGE

WASHER, PLATE
