Description

Price

1

FRONT FRAME SET.

99999-04414-00

Unavailable

2

REAR FRAME COMP.

5PA-21190-02-33

$300.99

3

BOLT

90111-08029-00

$8.49

4

BOLT, FLANGE

95812-08125-00

$4.14

5

BOLT, FLANGE

90105-10220-00

$10.49

6

BOLT, FLANGE

90105-10219-00

$7.49

7

NUT, S/L FLANGE

95602-10200-00

$4.82

8

TENSIONER

30X-22178-00-00

$35.99

9

BUSH

4V4-22184-00-00

$4.47

10

WASHER, PLATE

90201-08078-00

$3.61

11

BOLT, FLANGE

95022-08012-00

$12.49

12

TENSIONER SET

99999-04397-00

$18.99

13

BOLT, WITH WASHER

90119-06159-00

$8.49

14

COLLAR(51L)

90387-067K6-00

$10.49

15

BRACKET, C.D.I. UNIT

5PA-21274-10-00

$12.99

16

BOLT, FLANGE

95022-06012-00

Unavailable

17

PROTECTOR, FUEL TANK

3HA-24141-00-00

Unavailable

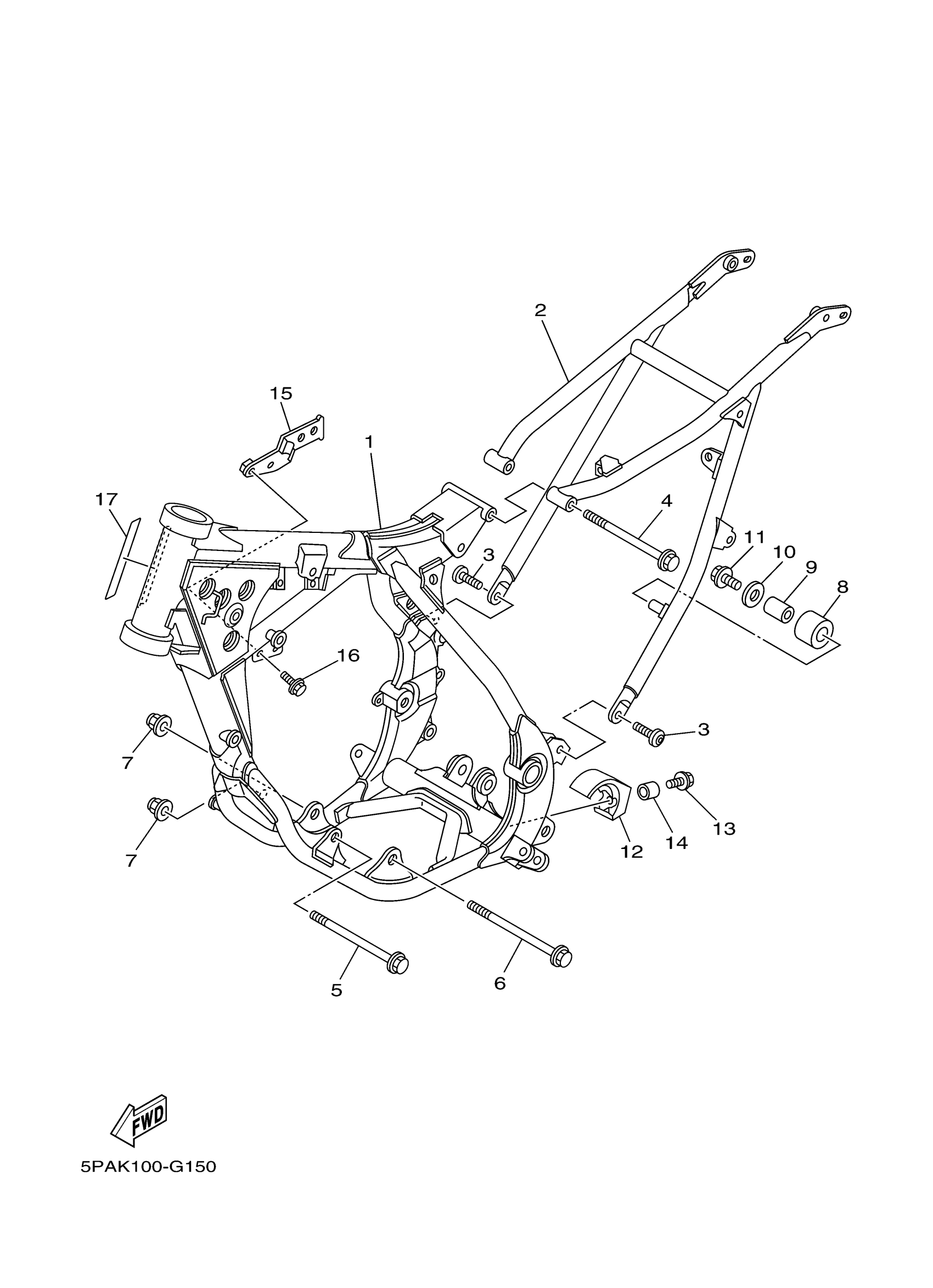

Yamaha YZ85B (YZ85) 1SN1 2012 FRAME Diagram

FRONT FRAME SET.

REAR FRAME COMP.

BOLT

BOLT, FLANGE

BOLT, FLANGE

BOLT, FLANGE

NUT, S/L FLANGE

TENSIONER

BUSH

WASHER, PLATE

BOLT, FLANGE

TENSIONER SET

BOLT, WITH WASHER

COLLAR(51L)

BRACKET, C.D.I. UNIT

BOLT, FLANGE

PROTECTOR, FUEL TANK
