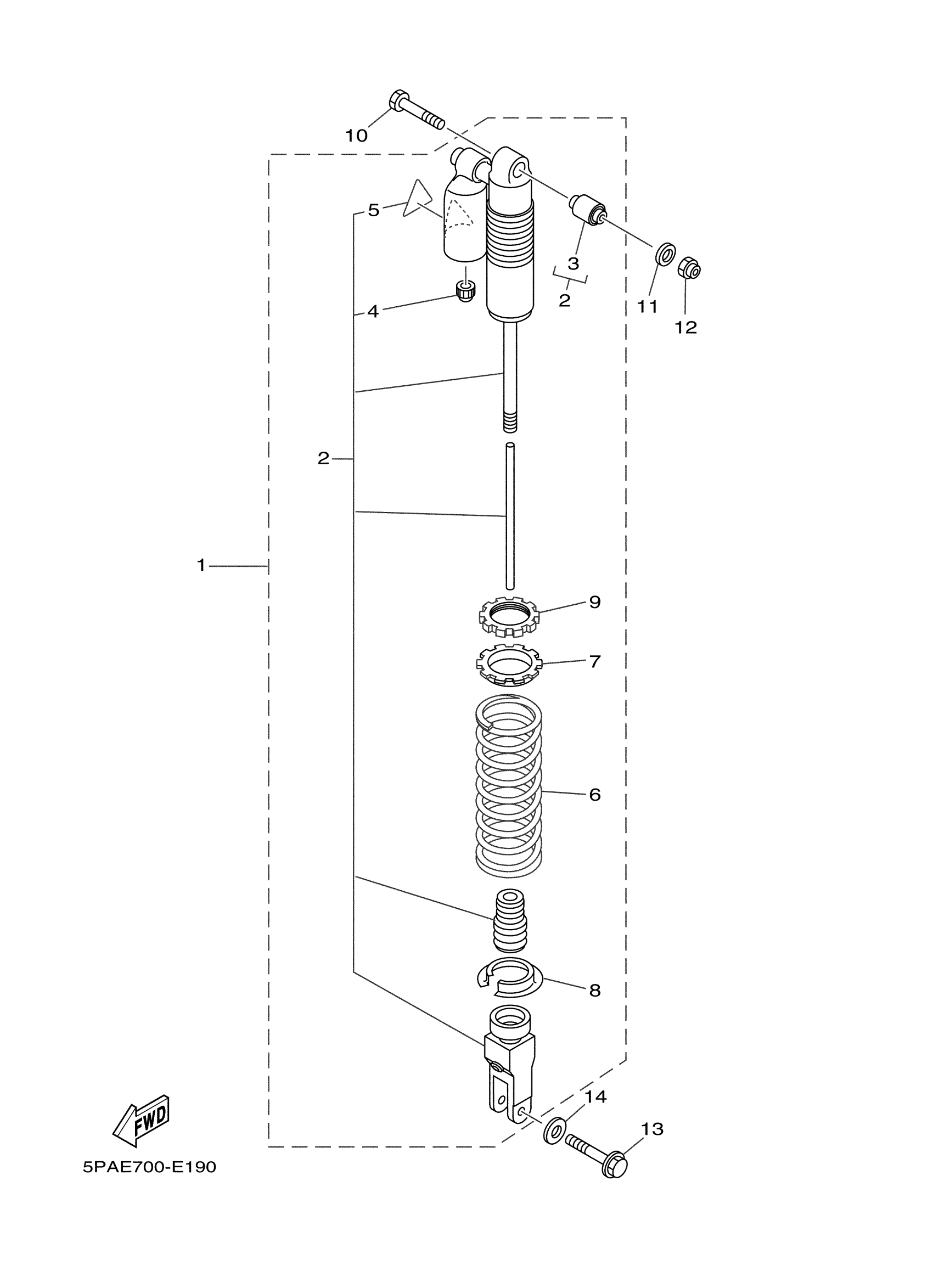

Yamaha YZ85A (YZ85) 5PAV 2011 REAR SUSPENSION Diagram

SHOCK ABSORBER ASSY, REAR

5PA-22210-50-00

Unavailable

DAMPER SUB ASSY

5PA-22201-50-00

$599.99

BUSH, REAR SHOCK ABSORBER

4ES-22216-00-00

$37.99

CAP, AIR VALVE

58T-23184-L0-00

$7.99

LABEL, WARNING

4AA-22259-80-00

$13.49

SPRING (K=5.0)

4ES-22212-F0-00

Unavailable

GUIDE, SPRING 1

4ES-22214-00-00

Unavailable

GUIDE, SPRING 1

3JD-22214-00-00

$28.99

NUT 1

4ES-22251-00-00

Unavailable

BOLT (22W)

90109-10729-00

$7.49

WASHER, PLATE

92990-10600-00

Unavailable

NUT, SELF-LOCKING

90185-10018-00

$8.49

BOLT, WASHER BASED(3XJ)

90105-10614-00

$12.49

WASHER, PLATE

90201-11016-00

$4.19
