- YZ85A (YZ85) 5PAV 2011
FRONT FORK

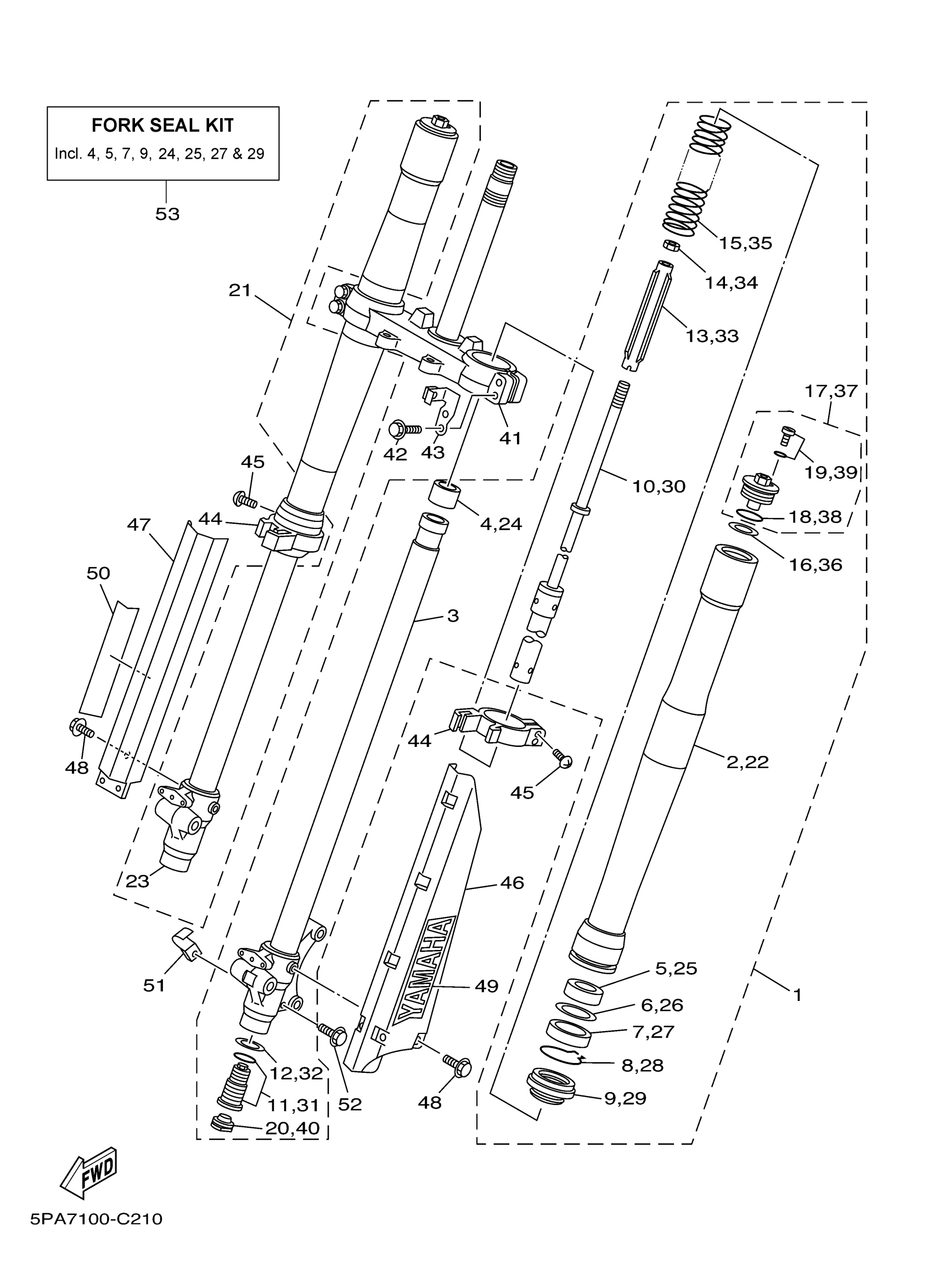

Yamaha YZ85A (YZ85) 5PAV 2011 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
5PA-23102-10-00
Unavailable
2
TUBE, OUTER
5PA-23136-10-00
Unavailable
3
INNER TUBE COMP.2
5PA-23120-00-00
Unavailable
10
CYLINDER COMP., FRONT FORK
5PA-23170-00-00
Unavailable
11
VALVE COMP.
5PA-2316A-00-00
Unavailable
13
SEAT, SPRING UPPER
4ES-23142-00-00
Unavailable
15
SPRING, FRONT FORK
4ES-23141-80-00
Unavailable
16
WASHER, SPRING UPPER
5PA-23149-00-00
Unavailable
17
BOLT, CAP
4ES-23111-10-00
Unavailable
18
O-RING
4V4-23188-L1-00
Unavailable
19
B0LT, SPECIAL
3JD-23394-00-00
Unavailable
20
PLUG
3JD-2312G-L0-00
Unavailable
21
FRONT FORK ASSY (R.H)
5PA-23103-10-00
Unavailable
22
TUBE, OUTER
5PA-23136-10-00
Unavailable
23
INNER TUBE COMP.1
5PA-23110-00-00
Unavailable
30
CYLINDER COMP., FRONT FORK
5PA-23170-00-00
Unavailable
31
VALVE COMP.
5PA-2316A-00-00
Unavailable
33
SEAT, SPRING UPPER
4ES-23142-00-00
Unavailable
35
SPRING, FRONT FORK
4ES-23141-80-00
Unavailable
36
WASHER, SPRING UPPER
5PA-23149-00-00
Unavailable
37
BOLT, CAP
4ES-23111-10-00
Unavailable
38
O-RING
4V4-23188-L1-00
Unavailable
39
B0LT, SPECIAL
3JD-23394-00-00
Unavailable
40
PLUG
3JD-2312G-L0-00
Unavailable
41
UNDER BRACKET COMP.
5PA-23340-01-00
Unavailable
42
BOLT 1
5PA-23346-00-00
Unavailable
43
GUIDE, CABLE
5PA-2331E-10-00
Unavailable
44
PROTECTER GUIDE COMP., 1
4ES-2314F-00-00
Unavailable
45
SCREW, PAN HEAD
98517-04025-00
Unavailable
46
PROTECTER COMP., 1
5PA-2314H-L0-00
Unavailable
47
PROTECTER COMP., 2
5PA-2314J-L0-00
Unavailable
48
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
49
EMBLEM, YAMAHA
4XL-2153A-11-00
Unavailable
50
EMBLEM, YAMAHA
4XL-2153A-11-00
Unavailable
51
HOLDER, CABLE 1
5PA-23318-00-00
Unavailable
52
BOLT, FLANGE
95022-06020-00
Unavailable
53
FORK SEAL KIT (TWO FORKS)
4ES-W003B-00-00
Unavailable
