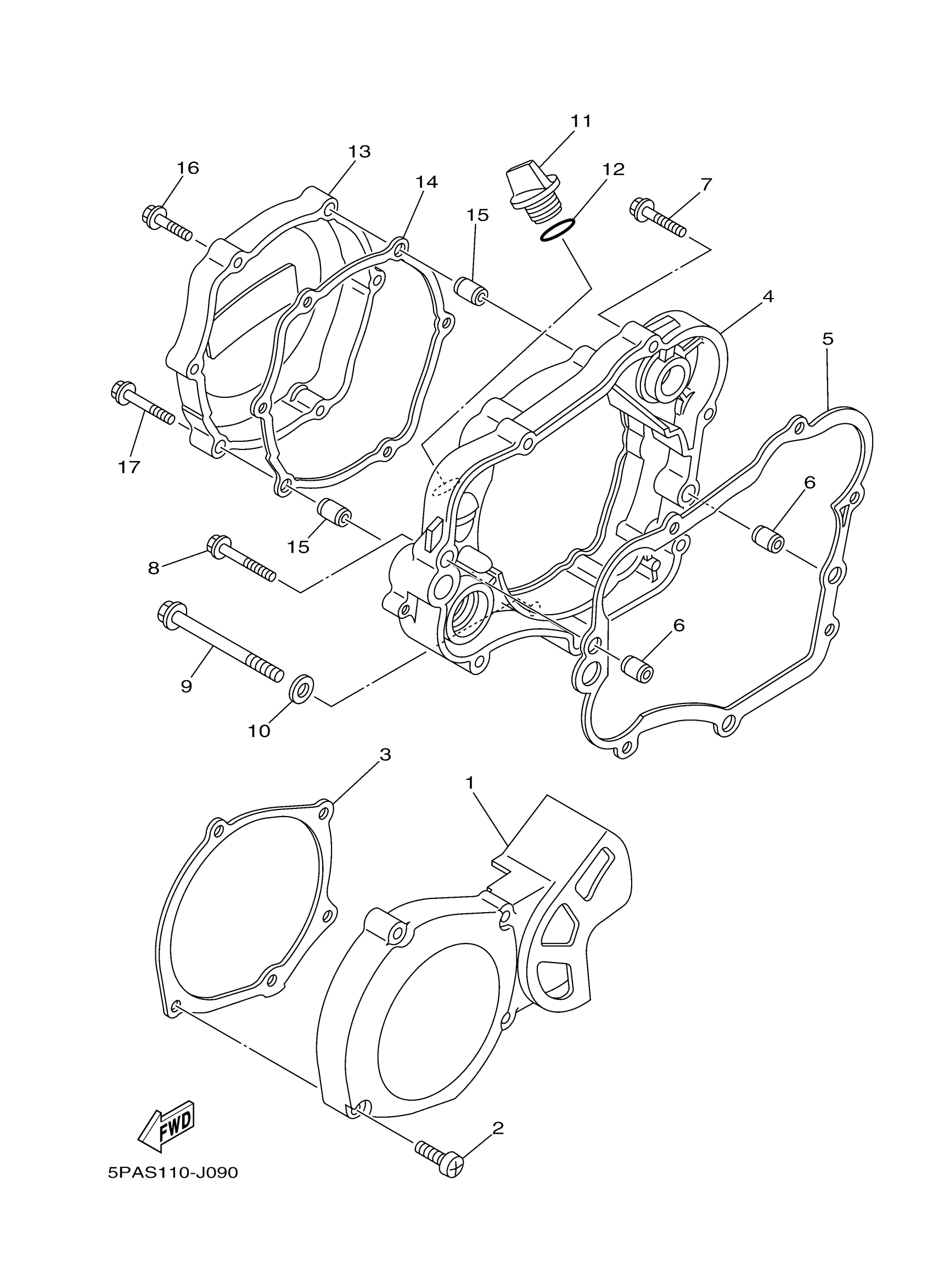

Yamaha YZ85A (YZ85) 5PAV 2011 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

4ES-15411-02-00

$16.49

2

SCREW, PAN HEAD

98502-06030-00

$2.18

3

GASKET, CRANKCASE COVER 1

5PA-15451-00-00

$28.99

4

COVER, CRANKCASE 3

5PA-15431-01-00

$276.99

5

GASKET, CRANKCASE COVER 2

4ES-15461-00-00

$28.99

6

PIN, DOWEL(3VD)

99530-10114-00

$2.55

7

BOLT, FLANGE

95022-06030-00

$3.72

8

BOLT, FLANGE

95022-06040-00

$3.45

9

BOLT, FLANGE

95022-08080-00

$4.77

10

GASKET

90430-08119-00

$6.62

11

PLUG, OIL

3Y1-15363-10-00

$18.49

12

O-RING (646)

93210-19123-00

Unavailable

13

COVER, 1

5PA-15415-11-00

Unavailable

14

GASKET, CARBURETOR COVER 2

5PA-15463-00-00

$14.49

15

PIN, DOWEL(3XW)

91808-16023-00

$8.49

16

BOLT, FLANGE

95022-06025-00

Unavailable

17

BOLT, FLANGE

95022-06035-00

Unavailable
